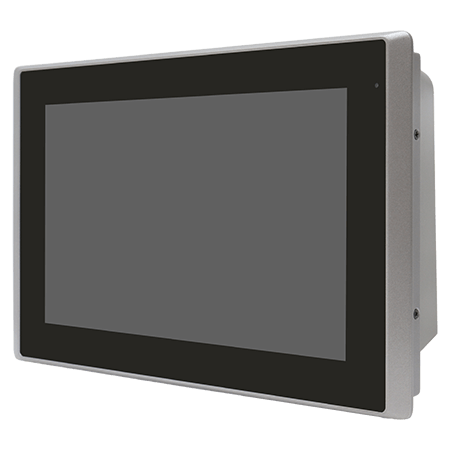

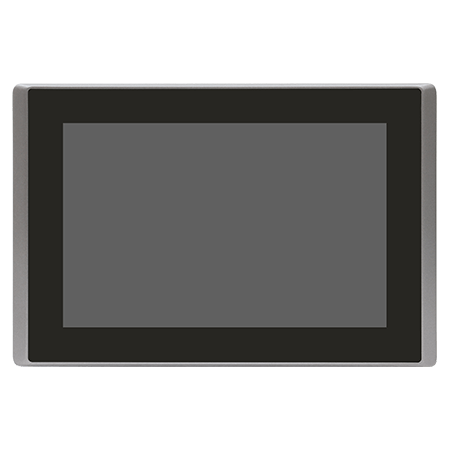

ADI-HMI-810P
10″ Fanless HMI Barebone with Celeron N2930, Aluminum Chassis
Product availability: Against PO
Country Of Origin : Taiwan
FEATURES
- 10.1″ TFT-LCD Projected Capacitive Touch.
- Intel Celeron N2930(1.83GHz) CPU built-in.
- Onboard 4GB DDR3L 1333 MHz/8GB(option).
- High Brightness 1,000nits.
- Optical Bonding(option).
DOWNLOAD
SPECIFICATIONS
| System | |
| CPU | Onboard Intel Celeron N2930(1.83GHz) Processor |
| System Chipset | SoC |
| System Memory | Onboard 4GB DDR3L 1333 MHz/8GB(option) |
| Power Consumption | ARCHMI-810P: 23.7W |

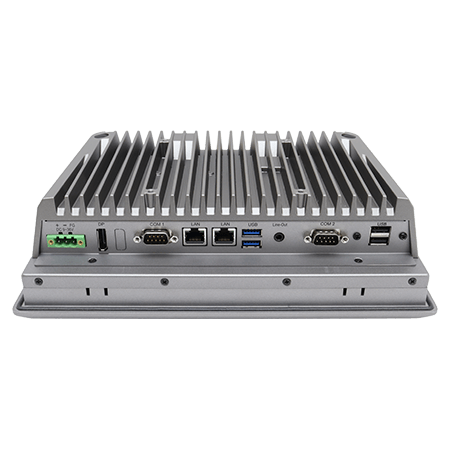

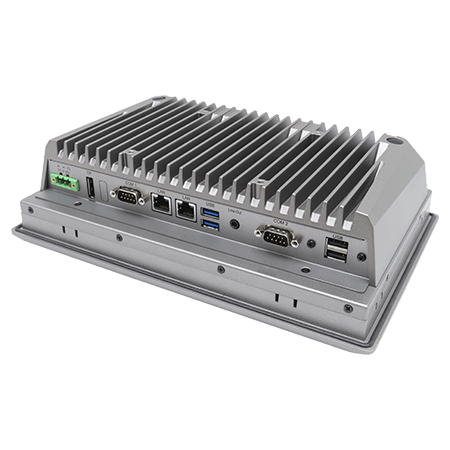

| External I/O | |
| USB | 2 x USB 3.0 type A |
| Serial / Parallel | 1 x RS-232 DB-9(COM2)1 x DB-9 RS-232/422/485 (Default RS-232)(COM1) |
| Audio | 1 x Audio Line Out |
| LAN | 2 x GbE RJ-45 |
| Power | 1 x 3-Pin Terminal Block Connector DC Power Input, 1 x 2-Pin DC Power Switch Connector |
| Storage Space | |
| HDD/SSD | 1 x SATA MO-297 SSD bay (Easy Accessible) |
| Expansion | |
| On board expansion bus | 1 x Internal Mini-PCIe slot full size |
| Display | |
| LCD Size | 10.1″ TFT-LCD |
| Max. resolution | 1280 x 800 |
| Max. color | 16.2M |
| Luminance(cd/m²) | 800 |
| Viewangle(H°/V°) | 170/170 |
| Backlight lifetime(hrs) | 30000 |
| Touch Screen(Option) | |
| Touch Type | Projected Capacitive Touch |
| Interface | USB |
| Light transmission(%) | 80% |
| Power | |
| Power input | DC 9~36V |
| Mechanical | |
| Construction | Aluminum Die-casting Front Bezel and Chassis |
| IP rating | Front Panel IP66 |
| Mounting | Panel mounting, VESA 100 x 100 |
| Dimension(mm) | 285 x 189 x 48.9 |
| Net weight(Kgs) | 2.9 |
| Environmental | |
| Operating Temperature | 0°C~50°C |
| Storage Temperature | -30°C~70°C |
| Storage Humidity | 10% to 90% @ 40˚C, non-condensing |
| Certificate | CE/FCC class A/UL |
| Operating System Support | Windows Embedded Compact 7
Windows Embedded Standard 7 Windows 7 Pro(FES) Windows 7 Ultimate(FES) Windows Embedded 8 Standard Windows Embedded 8.1 Industry Pro Windows 10 IoT Enterprise 2015LTSB |
