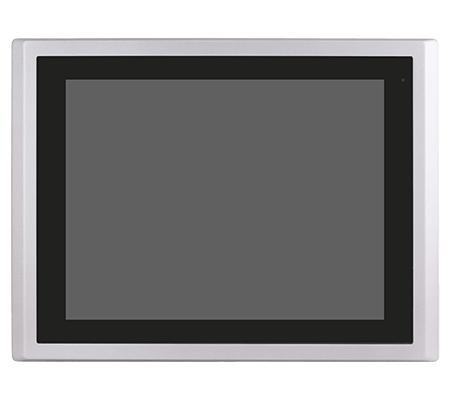

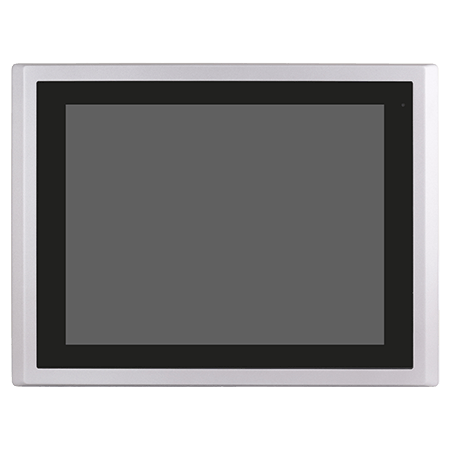

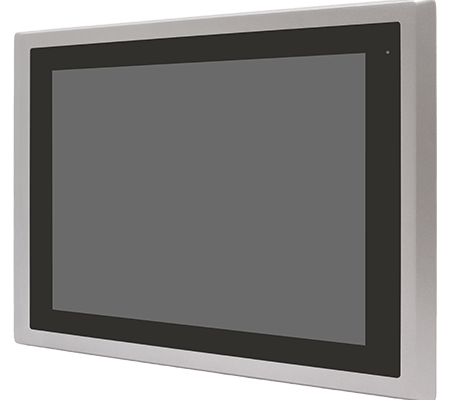

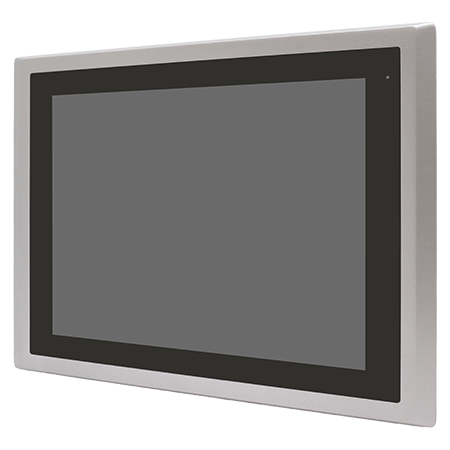

ADI-HMI-915AR
15 ” Fanless HMI Barebone with Intel 6th Gen Core i3/i5, Aluminum Chassis
Product availability: Against PO
Country Of Origin : Taiwan
FEATURES
- 15” Industrial Compact Size Panel PC
- Intel 6th Gen. Core i3(standard) / i5(option) CPU built-in
- 1 x 260Pin SO-DIMM DDR4 up to 16GB 2133MHz
- Flat Front Panel Touch Screen
- Fanless Design
- DC 9~36V Wide-Ranging Power Input
- Optional Projected Capacitive Touch Screen Support 7H Anti-Scratch Surface
- High Brightness 1,000 nits for Option
DOWNLOAD
SPECIFICATIONS
| System | ||
| CPU | Onboard Intel 6th Gen. Core i3 CPU Processors/ i5(option) | |
| System Chipset | SoC | |
| Memory | 1 x 260Pin SO-DIMM DDR4 up to 16GB 2133MHz | |

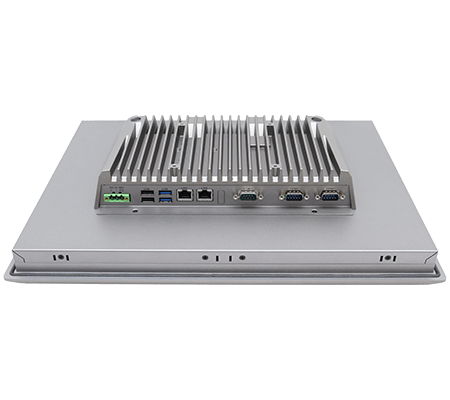

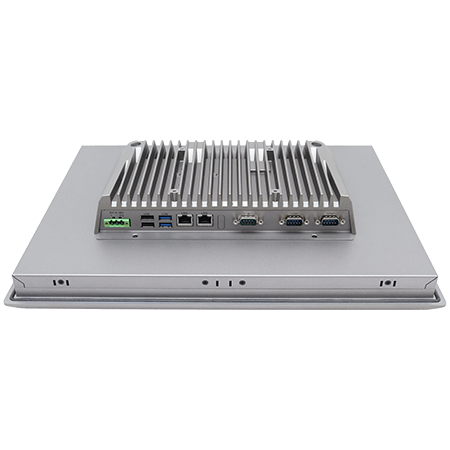

| I/O Port | ||
| USB | 2 x USB 3.0 type A | |
| Serial / Parallel | 1 x DB-9 RS-232/422/485, COM1 (Default RS-232) 1 x RS-232 DB-9, COM2 | |
| Audio | 1 x Audio Line Out LAN | |
| LAN | 2 x GbE LAN RJ-45 | |
| Power | 1 x 3-pin DC Power input terminal 1 x 2-Pin Power Switch | |
| Option | 2 x RS-232 DB-9 + 1 x Mini-PCIe slot via TB-528C2ME1 2 x CAN bus via TB-528CAN2 2 x USB 2.0 type A + 1 x Mini-PCIe slot + 1xRS-232 DB-9 via TB-528C1U2P1 4 x USB 2.0 type A via TB-528U4 UPS battery 21W/10.8V/1.95Ah(3S1P) | |
| Storage Space | ||
| HDD | 1 x 2.5″ SATA HDD bay for SATA3 HDD (Easy Accessible) | |
| Expansion | ||
| Expansion Slot | 1 x Internal Mini-PCIe slot full size | |
| Dispalay | Standard | High Brightness Optional |
| Display Type | 15” TFT LCD | 15” TFT LCD |
| Max. Resolution | 1024 x 768 | 1024 x 768 |
| Max. Color | 16.7M | 16.7M |
| Luminance (cd/m2 ) | 420 | 1000 |
| View Angle | 160(H) / 160(V) | 160(H) / 150(V) |
| Contrast | 800:01:00 | 800:01:00 |
| Backlight Lifetime | 50,000 hrs | 30,000 hrs |
| Option | Optical bonding | Optical bonding |
| Touch Screen | Resistive Touch | Projected Capacitive Touch |
| Interface | USB | USB |
| Light Transmission(%) | Over 80% | Over 90% |
| Power | ||
| Power Input | DC 9~36V | |
| Power Consumption | ADI-HMI-915AR: 42W | |
| Mechanical | ||
| Color | RAL 9007 | |
| Construction | Aluminum die-casting chassis | |
| Mounting | Panel Mount, VESA 100 x 100 | |
| Dimensions (WxHxD) | 410mm x 310mm x 54.67mm | |
| IP Rating | Front Panel IP66 | |
| Net Weight | 4.4kg | |
| Environmental | ||
| Operating Temperature | 0~50˚C | |
| Storage Temperature | -30~70˚C | |
| Storage Humidity | 10 to 90%@ 40˚C, non-condensing | |
| Certificate | CE / FCC, Class A | |
| Operating System Support | ||
| Windows 7 64 bit | ||
| Windows 8 64 bit | ||
| Windows 10 IoT 64 bit | ||
