ADI-HMI-S-917DP

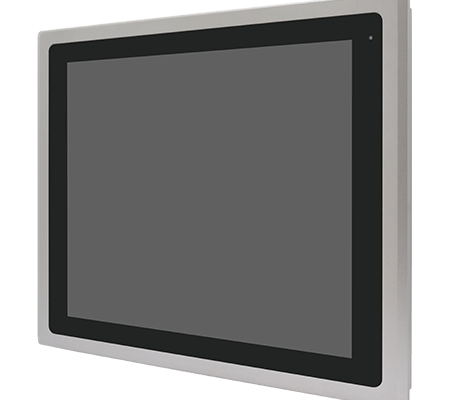

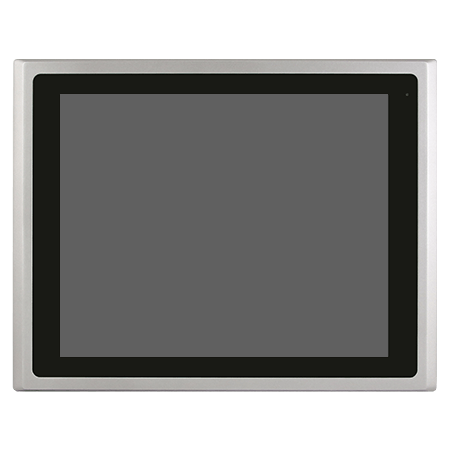

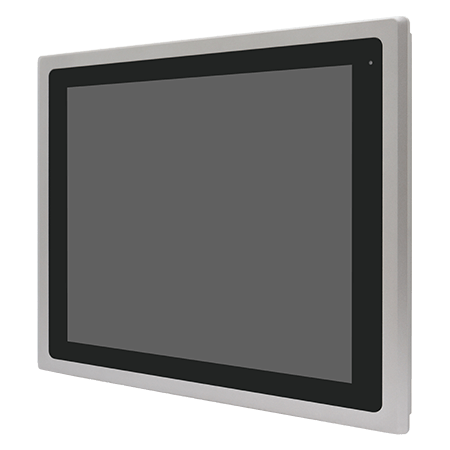

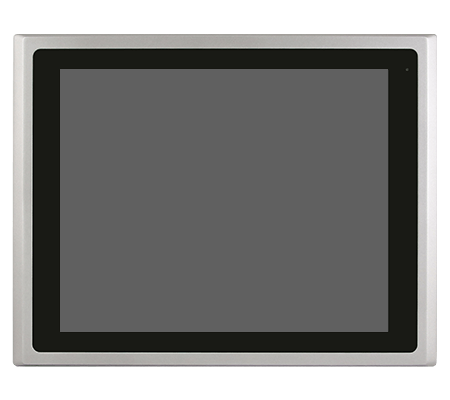

17″ Intel 12th Gen. Alder Lake-P Platform Fanless Industrial Panel PC
Product availability: Against PO
Country Of Origin : Taiwan
FEATURES
- 17″ Industrial Compact Size Panel PC
- Intel 12th Gen. i5-1235U, i3-1215U (Alder lake-P)
- Support 2 x DDR4 3200MHz SO-DIMM, Up to 32GB
- IP66 Compliant Aluminum Front Bezel
- Support Resistive touch screen and Projected Capacitive Multi-touch screen
- Support Auto-Dimming (for option)
- Support High Brightness LCD Version
- Fanless Design
- DC 9~36V Wide Range Power Input
DOWNLOAD
SPECIFICATIONS
| System Specification | |
| CPU | Core i5-1235U (2P/8E/12T, P-core:4.4GHz, E-core:3.3GHz, 15W TDP)
Core i3-1215U (2P/4E/8T, P-core:4.4GHz, E-core:3.3GHz, 15W TDP) |
| System Chipset | SoC |
| Memory | 2 x DDR4 3200MHz SO-DIMM, up to 32GB |
| BIOS | AMI UEFI |

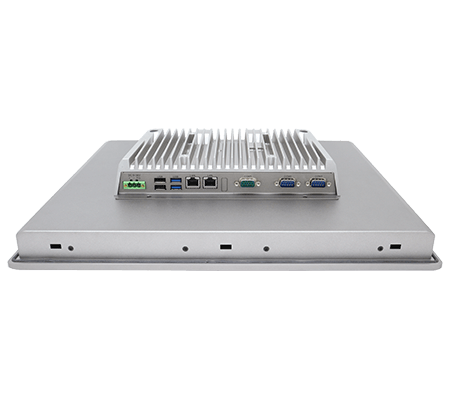

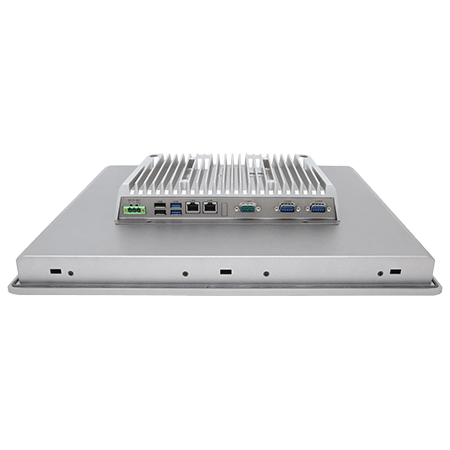

| IO Ports | |
| USB Port | 2 x USB 3.2 Type A, 2 x USB 2.0 Type A |
| Serial / Parallel | 1 x DB9 Type RS-485/422/232(COM1, BIOS selection, RS-232 is default)
1 x DB9 Type RS-485/422/232(COM2, BIOS selection, RS-232 is default) 1 x DB9 Type RS-232(COM3) |
| Audio | 1 x Line-out |
| Display | 1 x DisplayPort 1.4: Up to 4096 x 2160@60Hz |
| LAN | 1 x RJ45 Type Intel I219LM GbE LAN
1 x RJ45 Type Intel I210AT, GbE LAN |
| Power | 1 x Terminal Block Type, 9-36VDC Power input |
| Storage Space | |
| HDD/SSD | 1 x M.2 Key-M Slot for NVME (PCIe, 2280) |
| Expansion | |
| Expansion slot | 1 x M.2 Key-E Slot (Support WIFI+BT, 2230)(USB2.0, PCIe x1)
1 x M.2 Key-B Slot w/1 x Nano-SIM slot(Support 4G/5G, 3042/3052) (USB3.2 Gen.1 x1, PCIe x1(Default)/SATA, USB2.0) |
| Storage Space | |
| TPM | Onboard TPM2.0 SPI I/F TPM IC |
| Watchdog Timer | 1~255 sec (system) |
| Wake on LAN | Support WOL |
| Adapter | 19V 3.42A Adapter |
| Dispalay | Standard | High Brightness by SKU |
| Display Type | 17″ TFT-LCD | 17″ TFT-LCD |
| Max. Resolution | 1280 x 1024 | 1280 x 1024 |
| Max. Color | 16.7M | 16.7M |
| Luminance (cd/m2) | 350 | 1,000 |
| View Angle | 160(H)/140(V) | 170(H)/160(V) |
| Contrast | 1,000:1 | 800:1 |
| Backlight Lifetime | 50,000 hrs | 50,000 hrs |
| Touch Screen | |
| Type | Resistive Touch (for DR Model)Projected Capacitive Touch (for DP Model) |
| Interface | USB |
| Light Transmission(%) | Resistive Touch: 80% / Projected Capacitive Touch: 90% |
| Power | |
| Power Input | DC 9~36V |
| Power Consumption | ARCHMI-S-917DP/R: 59W |
| Environmental | |
| Operating Temperature | 0~50˚C / -20~60˚C (w/ Industrial wide Temp. SSD/RAM) |
| Storage Temperature | -30~70˚C |
| Humidity | 10 to 95%@ 40˚C, non-condensing |
| Certificate | CE/FCC Class A |
| Operating System Support |
| Windows 10 IoT Enterprise 2021 LTSC |
| Windows 11 (21H2) or later |
| Linux 18.04 or later |
