ARCHMI-919R

ADI-HMI-919R

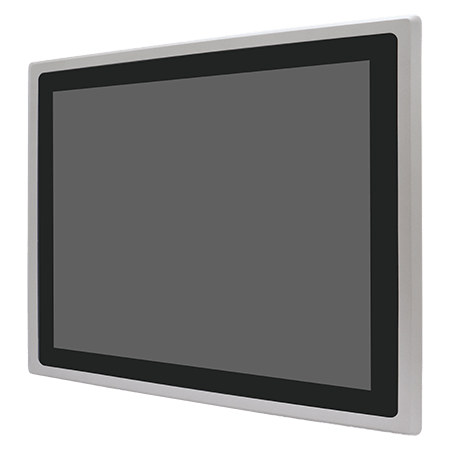

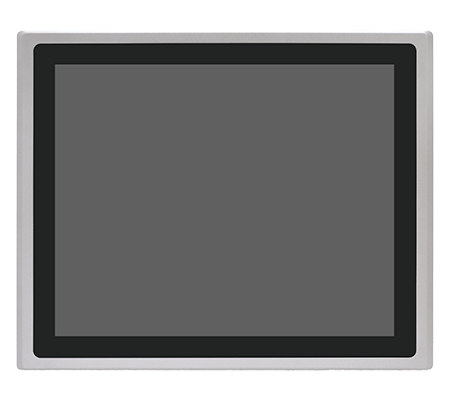

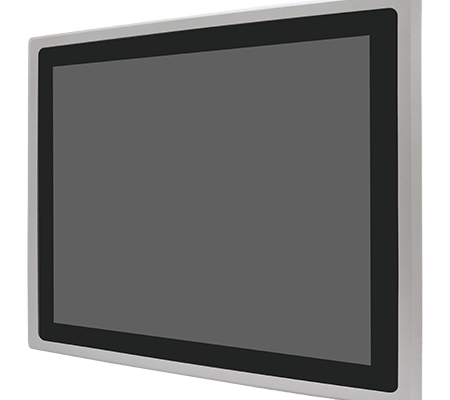

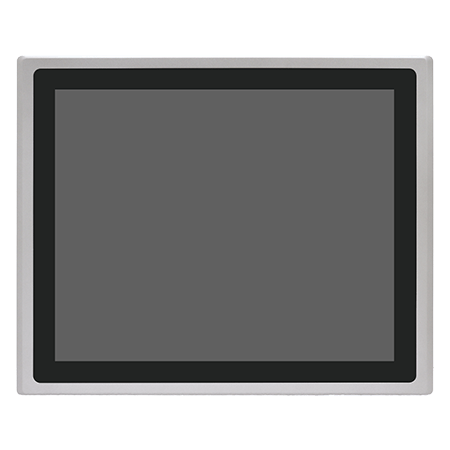

19″ Fanless HMI Barebone with Intel 6th Gen Core i3/i5, Aluminum Chassis

Product availability: Against PO

Country Of Origin : Taiwan

FEATURES

  • 19″ TFT-LCD Resistive Touch Window.
  • Intel 4th Gen. Core i3 CPU built-in/i5(option).
  • Onboard 4GB DDR3L 1600 MHz/8GB(option).
  • Flat Front Panel meets IP66.
  • Aluminum Die-Casting Chassis Fanless Design.
  • Easily Accessible Storage, Expansion slot support
  • 9~36V DC input with Professional Terminal Block

DOWNLOAD

System
CPU Onboard Intel 4th Core i3 / i5(option) Processors
System Memory OnBoard 4GB DDR3L 1600MHz / 8GB(option)
System Chipset SoC

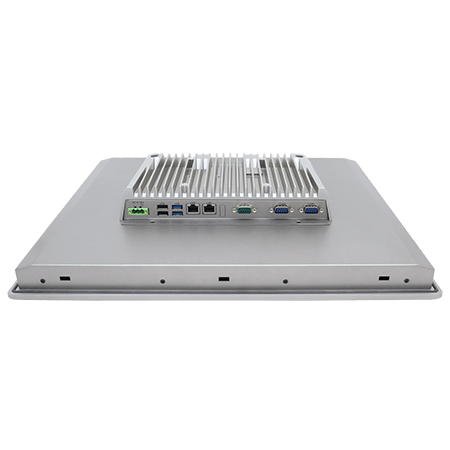

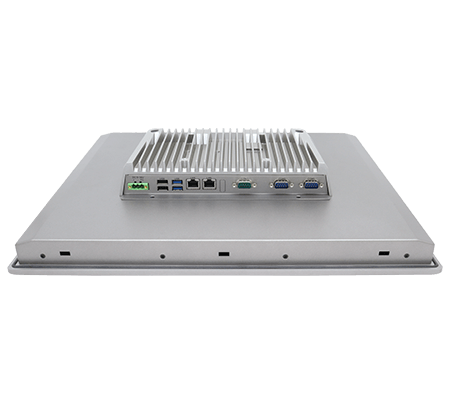

External I/O Ports 2 x USB 3.0 Type A
2 x  GbE RJ-45
1 x RS-232 DB-9(COM2)
1 x DB-9 RS-232/422/485 (Default RS-232)(COM1)
1 x Audio Line-output
3 Pins Terminal Block Connector DC Power Input,
1 x 2-Pin DC Power Switch Connector
1 x 2-pin connector for power on/off button

OPTIONAL

2 x RS-232 DB-9 + 1 x Mini-PCIe slot via TB-528C2ME1
2 x CAN bus via TB-528CAN2
2 x USB 2.0 type A Via TB-528U2
2 x USB 2.0 type A + 1 x RS-232 DB-9 + 1 x Power button via TB-528C1U2P1
UPS Battery 21W/10.8V/1.95Ah
Storage 1 x 2.5″ SATA HDD bay for SATA HDD (Easy Accessible)
Expansion Slots 1 x Internal Mini-PCIe slot full size
LCD
Display Type 19” TFT-LCD
Max. Resolution 1280 x 1024
Max. Color 16.7
Luminance (cd/m2 ) 350
View Angle 160/160
Backlight lifetime(hrs) 50000
Touch Screen(Option)
Type Resistive Touch Window
Light Transmission 80%
Power Supply
Power Input DC 9~36V DC
Mechanical
Front Bezel Aluminum Die-casting Front Bezel and Chassis
IP Rating IP 66  front bezel
Mounting Panel Mounting ,VESA 100 x 100
Dimension 468mm x 380mm x 64.8mm
Net Weight 5.9 kgs
Environmental
Operating Temperature 0~50
Storage Temperature -30~70
Storage Humidity 10~90% @40C, non-condensing
Certificate CE/FCC class A/UL
OS Support Windows Embedded Compact 7

Windows Embedded Standard 7

Windows 7 Pro(FES)

Windows 7 Ultimate(FES)

Windows Embedded 8 Standard

Windows Embedded 8.1 Industry Pro

Windows 10 IoT Enterprise 2015LTSB
