ADI-K1550T(P) Industrial Panel Computer

Industrial Panel Computer

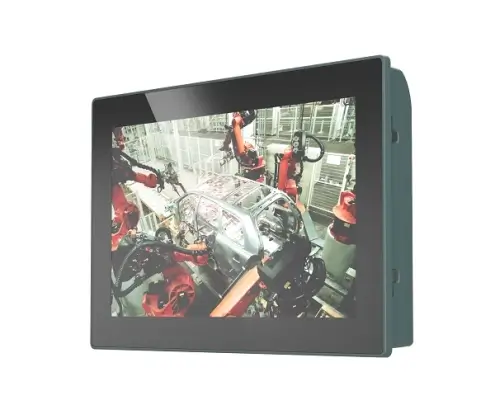

ADI-K1550T(P) is a full flat mirror panel powered by an Intel®Tiger lake U series processor. It adopts 15.6 “1920*1080 resolution full HD TFT LCD and fully fits
surface projection multi-point capacitive touch screen. The product has a comprehensive I/O interface, supporting 1*2.5 “SATA disk and 1*mSATA dual storage;
Built-in 1*Mini PCIe and 1*M.2 3042/3052 expansions, wide voltage DC power supply from 9 to 36V, aluminum die-cast body without fan heat dissipation, various
installation modes, suitable for intelligent MES system and device management HMI.

FEATURES

  • Aluminum die–casting chassis, Full Flat Mirror Panel
  •  15.6” Full HD LCD, Multi-point capacitive touch
  •  Intel® Tigerlake CPU, fanless design
  •  1*DDR4 3200 SODIMM, up to 32GB
  •  1*Mini PCIe, 1*M.2 B-Key Type 3042/3052
  •  4*COM, 2*LAN, 4*USB3.2, 1*8-bit DIO (opt.)
  •  2.5”SATA Bay, 1*mSATA, 1*Line out, 2*3W Speaker
  • Optional 1*PCIeX4 slot (PCIEX4 signal) or 1*PCI slot expansion
  • DC 9~36V power input
  • Standard VESA mount and panel mounting

DOWNLOAD

ADI-K1550T (P)

System Specification

CPU Intel® Tigerlake U Celeron/Core I3/I5/I7 CPU, ULT SoC, TDP 12W/15W
Chipset Intel® CPU SoC MCP
System memory 1*DDR4 3200 MHz SODIMM, up to 32GB
BIOS AMI EFI BIOS, 128Mbit SPI flash memory
Storage 1*2.5” SATA HDD bay, support SATA3.0 6Gbps HDD/SSD; 1*mSATA
Display 15.6 “1920*1080@60Hz Full HD TFT LCD, 1*HDMI for extended display Intel UHD Graphics or iRIS® Xᵉ Graphics, Supports the Intel DL boost deep learning to strengthen technology, DirectX12.1, OpenGL 4.6 and OpenCL 3.0, HDMI Max resolution 4096*2304@60Hz
Expansion *Mini PCIe (PCIe&USB signal), supports a functional module with PCIe or USB signals 1*M.2 B-Key Type 3042/3052 with SIM card slot, supports 4G LTE/5G NR Optional a PCIeX 4 slot (X4 signal) or a 32-bit PCI slot extension
Audio Realtek ALC897 controller, support 5.1 channel, 2*3W Speaker

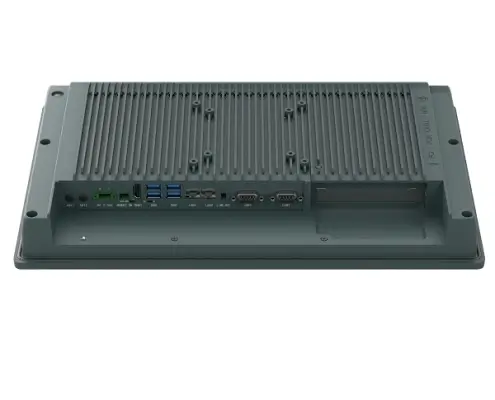

Real I/O 4*COM: 2*RS232/422/485, 2*RS232, DB9; 1*HDMI; 1*Line out; 4*USB3.2 Type A ; 2*RJ45; 1*3 pin DC-IN terminal pin; 1*Remote SW; 1*PCIeX4 or 1*PCI slot is optional with COM3 and COM4
Front I/O /
LAN 2*Intel I226V PCIe Gig. Ethernet, 10/100/1000Mbps, support WOL
Control SW/LED Power LED, 1*CMOS, 1*AT/ATX, 2-pin
Power Supply DC to DC: 9~36V input, consumption: 11.52W (CPU i7-1165G7, 8G DDR4, 128G SSD)
OS Windows 11*IoT enterprise, Windows 10*IoT enterprise,Android,SUSE, Ubuntu,Wind River,Red Hat*Enterprise,Wind
Construction Aluminum die–casting front bezel , fin–shaped radiator shell

Mechanical

Dimension 0~50℃ –HDD( –10~55℃ –SSD), with airflow
Weight –20~60℃
Storage Humidty 10~95%@40 , non–condensing
Shock 10g peak acceleration(duration 11ms), in operating with HDD
Vibration 1g 5~500Hz, in operating with HDD
Mounting Panel mounting(Cut out: 403*251mm), VESA 75*75mm and 100*100mm
Dimension (W*H*D): 416*264*59mm
Net Weight 3.7KG
EMC CE,FCC Class A

LCD

Type 15.6” TFT LED backlight
Resolution 1920*1080@60Hz
Color 16.2M
Pixel Pitch(mm) 0.17925 *0.17925(mm)
Brightness(cd/m2) 350
View Angles 85°(left), 85°(right), 85°(up),85°(down)
Operating Temperature 0~50℃
Backlight Lifetime 15000 Hours
Touch Mode Support Hand / Gloves and Rain Mode

Touch

Type Projected capacitive touch
Resolution 1920*1080
Light Transmittance ≥85%
Interface EETI Industrial grade
Consumption +5V @300mA
OS Windows/Linux
Click Lifetime 3 billion times
