ADI-TAM-117P

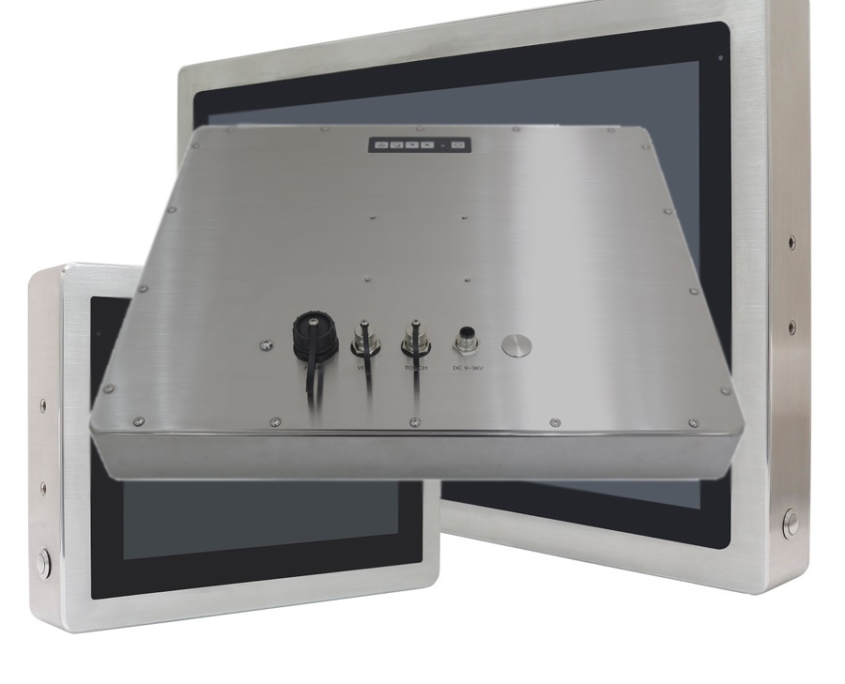

17″ New Gen. IP66/IP69K Stainless Steel Display
Product availability : Against PO
FEATURES
- 17″ TFT-LCD Projected Capacitive Touch.
- True Flat Front Bezel and Grade 304 Stainless Steel Enclosure (Grade 316 for Option).
- IP66/IP69K Rated with M12 Connectors.
- Touch on/off Button on the Side Edge for Hygienic Cleaning.
DOWNLOAD
SPECIFICATIONS
| IO Port : | |
| VGA | 1 x M12 VGA by 12-pin cable with waterproof cap |
| HDMI | 1 x waterproof HDMI with waterproof cap |
| OSD Control Membrane | OSD on the rear side |
| Others | 1 x M12 for USB touch with waterproof cap |
| Power | 1 x Power input, 1 x Touch on/off button on the side |
| Power | |
| Power input | 9~36V DC |
| Expansion : | |
| Expansion slot | |
| Display : | |
| LCD Size | 17″ TFT-LCD |
| Max. resolution | 1280 x 1024 |
| Max. color | 16.7M |
| Luminance(cd/m²) | 350 |
| Viewangle(H°/V°) | 170/170 |
| Contrast | 1000: 1 |
| Backlight lifetime(hrs) | 50,000 |
| Touch Screen(Option): | |
| Touch Type | Projected Capacitive Touch |
| Interface | USB |
| Light transmission(%) | Over 90% |
| Mechanical :- | |
| Construction | Stainless steel enclosure |
| IP Rating | IP66 / IP69K |
| Mounting | VESA 75 x 75, Yoke mount |
| Dimension | 432 x 358 x 55.3 |
| Net Weight | 7.5 Kg |
| Environmental :- | |
| Operating Temperature | 0~50°C (-20~60°C option) |
| Storage Temperature | -30~70°C |
| Storage Humidity | 10 to 90% @ 40°C, non- condensing |
| Certificate | CE / FCC Class A |
