ADI-TAM-119P

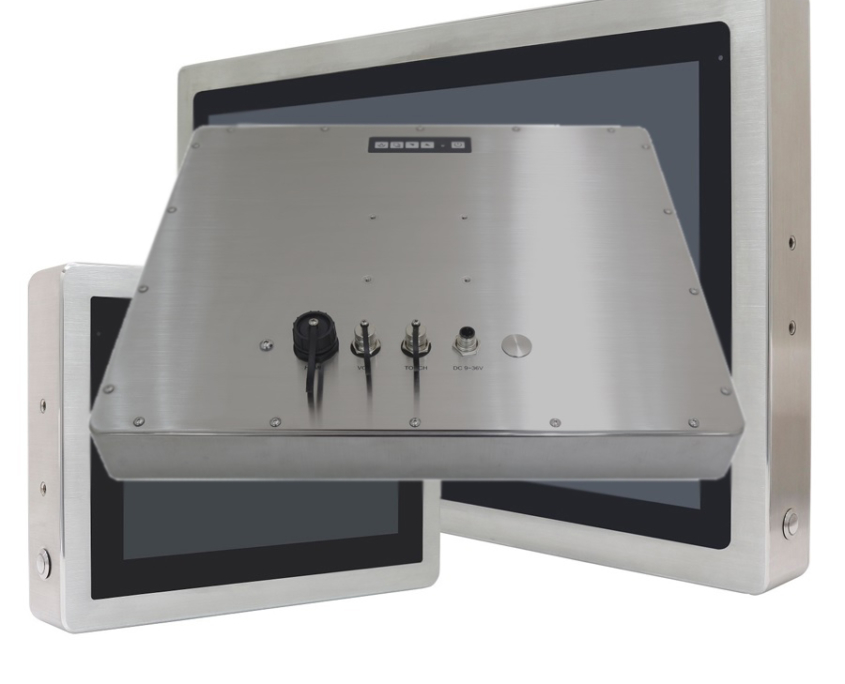

19″ New Gen. IP66/IP69K Stainless Steel Display
Product availability : Against PO
FEATURES
- 19″ TFT-LCD Projected Capacitive Touch.
- True Flat Front Bezel and Grade 304 Stainless Steel Enclosure (Grade 316 for Option).
- IP66/IP69K Rated with M12 Connectors.
- Touch on/off Button on the Side Edge for Hygienic Cleaning.
DOWNLOAD
SPECIFICATIONS
IO Port : | |
VGA | 1 x M12 VGA by 12-pin cable with waterproof cap |
HDMI | 1 x waterproof HDMI with waterproof cap |
OSD Control Membrane | OSD on the rear side |
Others | 1 x M12 for USB touch with waterproof cap |
Power | 1 x Power input, 1 x Touch on/off button on the side |
Power | |
Power input | 9~36V DC |
Display : | |
LCD Size | 19″ TFT-LCD |
Max. resolution | 1280 x 1024 |
Max. color | 16.7M |
Luminance(cd/m²) | 350 |
Viewangle(H°/V°) | 170/165 |
Contrast | 1000: 1 |
Backlight lifetime(hrs) | 50,000 |
Touch Screen(Option): | |
Touch Type | Projected Capacitive Touch |
Interface | USB |
Light transmission(%) | Over 90% |
Mechanical :- | |
Construction | Stainless steel enclosure |
IP Rating | IP66 / IP69K |
Mounting | VESA 100 x 100, Yoke mount |
Dimension | 470 x 388.6 x 60 |
Net Weight | 8.8 Kg |
Environmental :- | |
Operating Temperature | 0~50°C (-20~60°C option) |
Storage Temperature | -30~70°C |
Storage Humidity | 10 to 90% @ 40°C, non- condensing |
Certificate | CE / FCC Class A |
