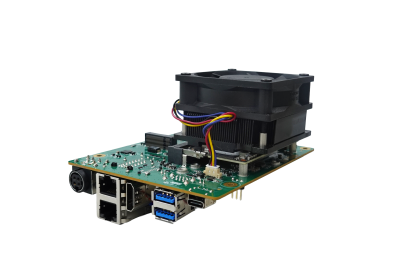

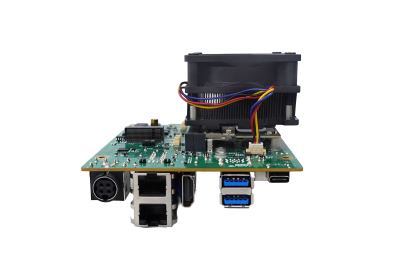

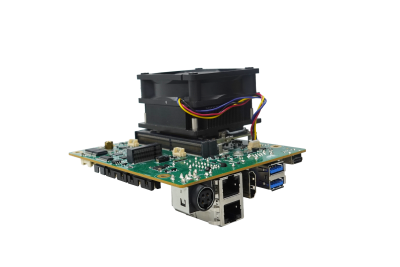

FEATURES
• Supports Super Mode for NVIDIA® Jetson Orin Nano™ /Orin™ NX
• 1 x M.2 B-Key/E-Key/M-Key (NVMe 128GB built-in)
• 2 x RJ-45 GbE Ports
• Wide Input Voltage Range 12 to 24 VDC
• Supports OOB (out-of-band) powered by Innodisk (optional)
• Wide Operating temperature -25°C ~ +80°C
Specifications
| Specifications | ||||
| Model Number | AIB-MO22-1-S2 | AIB-MO32-1-S2 | AIB-MN32-1-S2 | AIB-MN42-1-S2 |
| Module Compatibility | NVIDIA Jetson Orin Nanowith Super Mode 4GB | NVIDIA Jetson Orin Nano with Super Mode8GB | NVIDIA Jetson Orin NXwith Super Mode 8GB | NVIDIA Jetson Orin NX with Super Mode16GB |
| AI Performance | 34 TOPS | 67 TOPS | 117 TOPS | 157 TOPS |
| GPU | 512 Core NVIDIA Ampere, with 16 Tensor Cores | 1024 Core NVIDIA Ampere, with 32 Tensor Cores | 1024 Core NVIDIA Ampere, with 32 Tensor Cores | |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit 1.5MB L2 + 4MB L3 | 6-core Arm® Cortex®-A78AE v8.2 64-bit 2MB L2 + 4MB L3 | 8-core Arm® Cortex®-A78AE v8.2 64-bit 2MB L2 + 4MB L3 | |
| Memory | 4GB 64-bit LPDDR5 51 GB/s | 8GB 128-bit LPDDR5 68 GB/s | 8GB 128-bit LPDDR5 102.4 GB/s | 16GB 128-bit LPDDR5 102.4 GB/s |
| Storage | 1 x M.2 M-Key 2242 (NVMe 128GB built-in) | |||
| Display | 1 x HDMI 1.4 Type A | 1 x HDMI 2.0 Type A | ||
| Audio | Line-out / Line-in / Mic (optional with daughter board) | |||
| TPM | TPM 2.0 | |||
| RTC | RTC Battery BR2032 | |||
| Camera Input | 1x 8-Lane MIPI Expansion Connector (120-Pin) Supports GMSL and MIPI cameras (pre-built drivers required) *Refer to Peripheral List | |||
| LAN | 2 x RJ-45 GbE Ports | |||
| USB | 2 x USB 3.2 Gen2 Type A (supports up to 10Gbps shared) 1 x OTG Type-C | |||
| I/O Interfaces | 5 x GPIO, 1 x SPI, 1 x I2S, 3 x I2C, 1 x UART,1 x UART (Debug Only), 1 x RS-232, 1 x CAN (Isolation;supports CAN FD), 1 x RS-422/485 (2-in1), 1 x microSIM Card Slot | |||
| Expansion | 1 x M.2 B-Key 3042/3052 (LTE/4G/5G, with 1PPS function supported at 1.8V / 3.3V) 1 x M.2 E-Key 2230 (WiFi/BT) 1 x M.2 M-Key 2242 (NVMe 128GB built-in) | |||
| MISC. Function | 1 x Recovery / 1 x Reset Button | |||
| Power Consumption | Idle: 5.5 W Full Loading: 35.45* W | Idle: 6.4 W Full Loading: 52* W | ||
| *For more test condition information, please refer to user manual | ||||
| Power Input / Connector | DC-in 12to 24 VDC / 4-Pin DC Jack Power Connector | |||
| Dimension (W x D x H) | 120 x 100 x 36.56 mm (4.73 x 3.94 x 1.43 in) without Fansink 120 x 100 x 77.41 mm (4.73 x 3.94 x 3.43 in) with Fansink | |||
| Net Weight | 146g (0.32 lb) without Fansink 300g (0.66 lb) with Fansink | |||
| Vibration | 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | |||
| Shock | 10 G, IEC 60068-2-27, half sine, 11 ms duration | |||
| Temperature | Operating Temp.: -25°C ~ +80°C (-13°F ~ +176°F)Storage Temp.: -40°C ~ +85°C (-40°F ~ +185°F)*With full CPU+GPU stressing: System non-throttling at 70C with 40W (MAXNMode) | |||
| Humidity | 95% @ 40°C (104°F) (non-condensing) | |||
| Software Support | Linux (Support NVIDIA JetPack 6.2 and above) | |||
| Certification | CE/FCC Class A/ UKCA | |||
Ordering Information
| Model name | Description |
| AIB-MO22-1-S2 | NVIDIA Jetson Orin Nano 4GB, 1 x HDMI, 2 x GbE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25°C ~ +80°C |
| AIB-MO32-1-S2 | NVIDIA Jetson Orin Nano 8GB, 1 x HDMI, 2 x GbE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25°C ~ +80°C |
| AIB-MN32-1-S2 | NVIDIA Jetson Orin NX 8GB, 1 x HDMI, 2 x GbE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25°C ~ +80°C |
| AIB-MN42-1-S2 | NVIDIA Jetson Orin NX 16GB, 1 x HDMI, 2 x GbE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25°C ~ +80°C |
Packing List
| Model name | Description |
| 92-6BMO22-4004 | AIB-MO22-S2 carrier board w/ NVIDIA Jetson Orin Nano 4GB |
| 92-6BMO32-4006 | AIB-MO32-S2 carrier board w/ NVIDIA Jetson Orin Nano 8GB |
| 92-6BMN32-4003 | AIB-MN32-S2 carrier board w/ NVIDIA Jetson Orin NX 8GB |
| 92-6BMN42-4004 | AIB-MN42-S2 carrier board w/ NVIDIA Jetson Orin NX 16GB |
| 53-0FG160-1200 | 100-240V 138W 12V 11.5A power adaptor |
| 20-100000-0003 | Battery wire Panasonic BR2032 3V/200mA L=45mm |
Accessories (Optional)
| Model name | Description |
| 32-010000-0005 | US power cord |
| 32-010000-0006 | EU power cord |
| 32-010000-0008 | JP power cord |
| 3102000037N000 | UK power cord |
