FEATURES

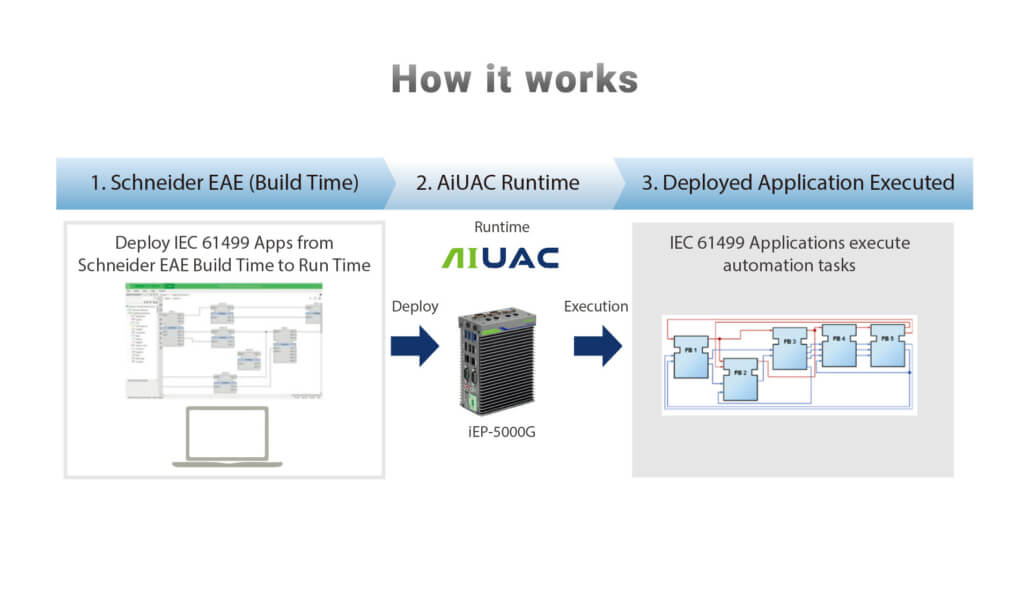

- Seamless Workflow with Schneider EAE
Fully supports engineering workflows from EcoStruxure
Automation Expert (Schneider EAE), enabling users to design
IEC 61499 function blocks and deploy them directly to
runtime without custom integration - Secure and Interoperable Communication
Facilitates reliable machine-to-machine and system-level
communication using OPCUA, MQTT, Modbus, and EtherNet/IP™
protocols, supporting both IT and OT system integration - Expandable for Open Process Automation
Designed with forward compatibility for O-PAS and OCF-based
architectures, providing a sustainable path for open,
standards-based industrial modernization - Hardware-Aware Diagnostics
Leverages ASRock Industrial’s Industrial Robust Edge AIoT
Platforms to retrieve real-time CPU and motherboard
temperature, GPIO states, and voltage data, enhancing visibility
and enabling preventive maintenance strategies - Scalable Runtime Architecture
Built on a modular, event-driven logic engine with high
availability support (HA), the runtime can scale across
distributed systems for mission-critical industrial operations
Download
AiUAC
Specifications
Specification
ASRock Industrial Exclusive Features
System & CPU temperature monitoring
• GPIO control
• Voltage data acquisition
• OPC UA Communication:
(Read/Write, Subscription, Audit Eventing, Alarm & Condition)
• Robot Control
◦ CPC Robot
◦ Other Robot
(control supported when manufacturer provides API)
• O-PAS Support
◦ OCF Information Model
◦ OCFB (O-PAS Connectivity Function Block)
◦ I/O Service Engine
◦ Alarm Engine
Runtime Features
• Communication Protocols
◦ TCP/IP
◦ Serial
◦ Modbus TCP/RTU
◦ MQTT
◦ EtherNet/IP™
• Failover
◦ HA (High Availability)
System Requirements
| Specifications | Description |
| iEP-5000G Series System
iEP-5010G Series System iEP-5020G Series System |
• CPU: Intel Atom® processor
• Memory: DDR4 3200 MHz SO-DIMM W/T 16GB (For iEP-5000G/5010G Series System) DDR5 5600 MHz SO-DIMM W/T 16GB (For iEP-5020G Series System) • Storage: M.2 2280 PCIE3.0 W/T SSD 128GB• OS: Ubuntu 22.04 LTS |
| iEP-7020E Series System
iEP-7030E Series System iEP-7040E Series System |
• CPU: Intel® Core Ultra / Core i Processor
• Memory: DDR4 3200 MHz SO-DIMM W/T 32GB (For iEP-7020E Series System) DDR5 5600 MHz SO-DIMM W/T 32GB (For iEP-7030E/7040E Series System) • Storage: M.2 2280 PCIE3.0 W/T SSD 256GB• OS: Ubuntu 22.04 LTS |
| iEP(F)-9030 System
iEP(F)-9040 System |
• CPU: Intel® 14th/15th Core Processor with H610/R680E chipset
• Memory: DDR5 5600 MHz SO-DIMM W/T 64GB • Storage: M.2 2280 PCIE3.0 W/T SSD 512GB • OS: Ubuntu 22.04 LTS |
Ordering Information
| Model name | Description |
| TBD | AiUAC Trial Version |
| TBD | AiUAC Formal Version 1.0 |
