CL1000
Single Rail LCD Console (PS/2-USB, VGA)
Product Availability: Against PO
Country Of Origin : Taiwan
FEATURES

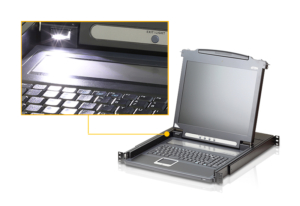

- Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

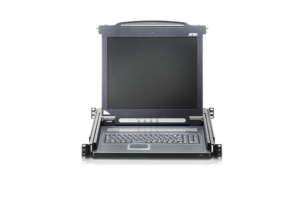

- Integrated KVM console with 17″ or 19” LED-backlit LCD monitor – in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack*
- LCD module rotates up to 115 degrees for a more comfortable viewing angle
- Slideaway™ housing is less than 1U – with top and bottom clearance for smooth operation in a 1U high system rack
- Compatible with most PS/2 KVM Switches
- Internal power supply
- Adjustable depth to fit within a rack
- High video resolution: up to 1920 x 1200 @ 60 Hz; and up to 1280 x 1024 @ 75 Hz Supports DDC, DDC2, DDC2B
- Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek (CL1000N only), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, and Traditional Chinese
- Improved design – optional single person installation kit.
DOWNLOAD
SPECIFICATIONS
| Function | CL1000M | CL1000N |
| Computer Connections | ||
| Direct | 1 | 1 |
| Connectors | ||
| KVM Ports | 1 x SPHD Female (Yellow) | 1 x SPHD Female (Yellow) |
| Power | 1 x 3-prong AC Socket | 1 x 3-prong AC Socket |
| Switches | ||
| Reset | 1 x Semi-recessed Pushbutton | 1 x Semi-recessed Pushbutton |
| Power | 1 x Rocker | N/A |
| LCD Power | 1 x Pushbutton | 1 x Pushbutton |
| LCD Adjustment | 4 x Pushbutton | 4 x Pushbutton |
| LEDs | ||
| Power | 1 x KVM Console (Dark Green) 1 x LCD (Orange) |
1 x KVM Console (Dark Green) 1 x LCD (Orange) |
| Lock | 1 x NumLock (Green) 1 x CapsLock (Green) 1 x ScrollLock (Green) |
1 x NumLock (Green) 1 x CapsLock (Green) 1 x ScrollLock (Green) |
| Video | ||
| Input Video Resolution | 1920 x 1200 @ 60Hz; DDC2B | 1920 x 1200 @ 60Hz; DDC2B |
| Panel Spec | ||
| LCD Module | 17″ TFT-LCD | 19″ TFT-LCD |
| Resolution | 1280 x 1024 @ 75 Hz | 1280 x 1024 @ 75 Hz |
| Pixel Pitch | 0.264 mm x 0.264 mm | 0.294 mm x 0.294 mm |
| Response time | 5 ms | 5 ms |
| Viewing Angle | 170° (H), 160° (V) | 170° (H), 160° (V) |
| Contrast Ratio | 1000:1 | 1000:1 |
| Support Color | 16.7M colors | 16.7M colors |
| Luminance | 250 cd/m² | 250 cd/m² |
| Emulation | ||
| Keyboard / Mouse | PS/2 | PS/2 |
| Maximum Input Power Rating | 100-240 VAC; 50-60 Hz; 1A | 100-240 VAC; 50-60 Hz; 1A |
| Power Consumption | AC110V:14.2W:69BTU AC220V:15.5W:75BTU |
AC110V:14.2W:69BTU AC220V:15.5W:75BTU |
| Environmental | ||
| Operating Temperature | 0-50?C | 0-50?C |
| Storage Temperature | -20-60?C | -20-60?C |
| Humidity | 0-80% RH, Non-condensing | 0-80% RH, Non-condensing |
| Physical Properties | ||
| Housing | Metal+Plastic | Metal+Plastic |
| Weight | 12.02 kg ( 26.48 lb ) | 11.06 kg ( 24.36 lb ) |
| Dimensions (L x W x H) | 48.00 x 53.83 x 4.40 cm (18.9 x 21.19 x 1.73 in.) |
48.3 x 58.52 x 4.4 cm (19.02 x 23.04 x 1.73 in.) |
