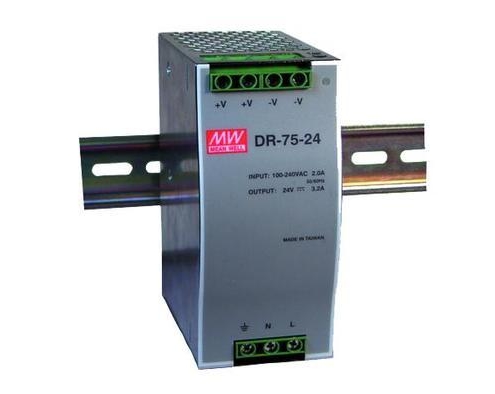

DR-75-24
75W/3.2A DIN-Rail 24 VDC Power Supply
Product availability: Against PO
FEATURES
- Universal AC input / Full range
- Protections:Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508(industrial control equipment)approved
- LED indicator for power on
- 100% full load burn-in test
- Fix switching frequency at 50KHz
DOWNLOAD
SPECIFICATIONS
| Power | 75 W |
| Input | 85-264 VAC (47-63 Hz), or 120-370 VDC |
| Output | 76.8 W, 24 VDC, 0-3.2 A |
| Over-voltage Protection | 29-33 V |
| Overload Protection | 105-150% |
| Type | Constant Current Limiting |
| Reset | Auto Recovery |
| Inrush Current | 30 A and 115 V, or 60 A and 230 V |
| Safety Standards | TÜV EN60950-1, UL508 Approved |
| EMC Standards | CISPR22 (EN55022) Class B, EN61000-4-2/3/4/5/6/8/11, ENV50204, EN61000-3-2, EN50082-2 |
| Dimensions | 55.5 x 100 x 125.2 mm |
| Weight | 550 g |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Relative Humidity | 20 to 90% RH |
