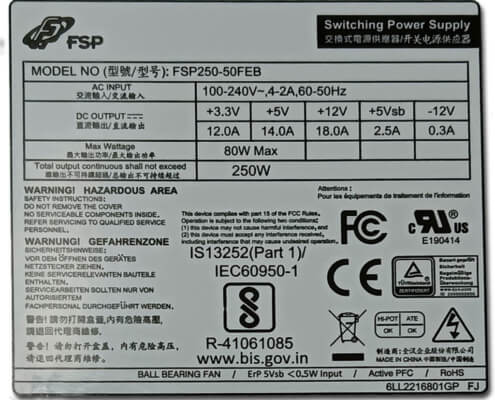

FSP250-50FEB
Entry Level Server Power Supply
Product Availability : Against PO
Country Of Origin: Taiwan
FEATURES
- Complied with Flex ATX and ATX12V standard
- Active Power Factor Correction (PFC) meet EN61000-3-2
- High efficiency and reliability
- Compatible with European Union Directive 2011/65/EU & (EU)2015/863 (Restriction on Hazardous Substances).
- Remote ON/OFF function
- Internal 12V DC fan included
- Low noise and ripple
- Output over voltage, short circuit, and over current protection
- 100% Hi-pot, ATE, and burn-in tested
- Re-settable power shut down
- Complies with FCC part 15 subpart J class B 115Vac operation, and CISPR 32 class B at 230Vac operation
- Approved by CB 62368 & 60950-1 2nd , EMC. CUL/UL TUV,FCC, CE
DOWNLOAD
Specifications
| Temperature Range: | Operating: 0°C ~ +50°C; storage : -20°C ~ +80°C |
| Humidity: | 85% RH, Non-condensing on operating, 95%RH, Non-condensing on storage. |
| Dielectric Withstand: | Primary frame ground 1800V AC for 2 second |
| Efficiency: | Typical > 85% |
| Altitude: | The power supply is applied for tropical climates and use at altitudes not exceeding 5000m above Sea level |
| Standby Power Consumption (5Vsb): | Efficiency> 45%@5Vsb/45mA &230Vac input (2013 Lot 6) |
| Efficiency> 55% @ 5Vsb/550mA &230Vac input | |
| Efficiency> 70% @ 5Vsb/1A &230Vac input | |
| Efficiency > 70% @ 5Vsb/2.5A &230Vac input | |
| Rise time: | Less than 20ms |
| Hold-up Time: | 16ms minimum at 80% load. |
| Power Good Signal: | Power on delay time 100 ~ 500ms, off delay 1ms minimum (TTL and CMOS compatible) |
| Leakage Current: | Less than 3.5mA at 264Vac, 50Hz |
| MTBF: | A minimum predicted MTBF (MIL-HDBK-217) of 100,000 hours of continuous operation at +25°C. |
| Dimensions (LxWxH): | 150×81.5×40.5mm /6×3.2×1.6inch |
