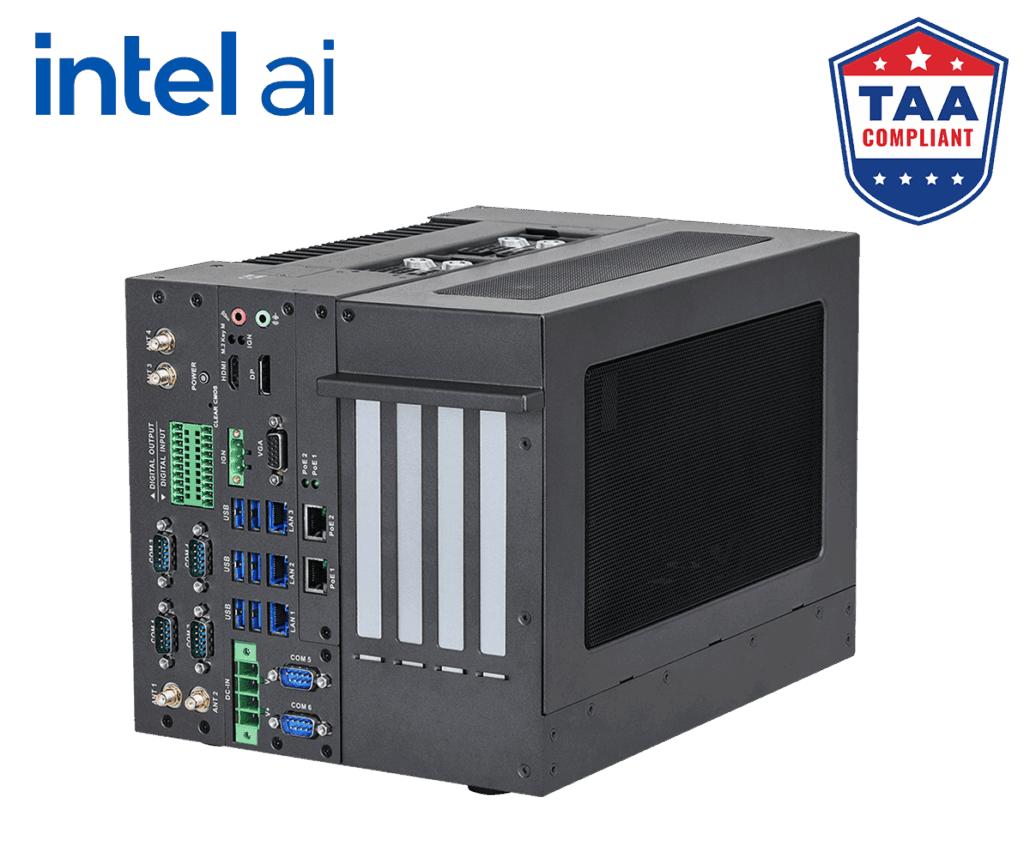

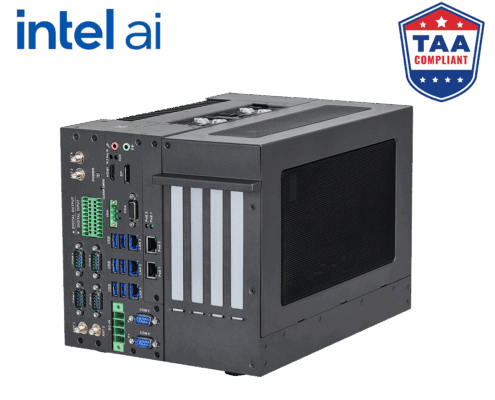

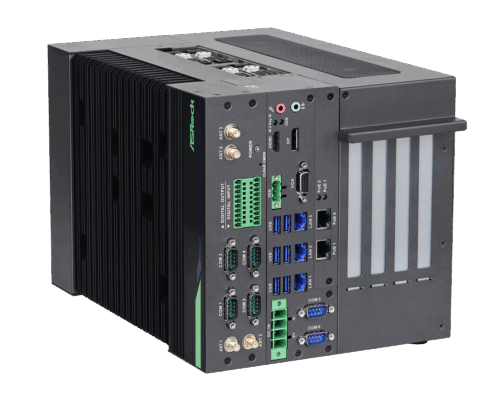

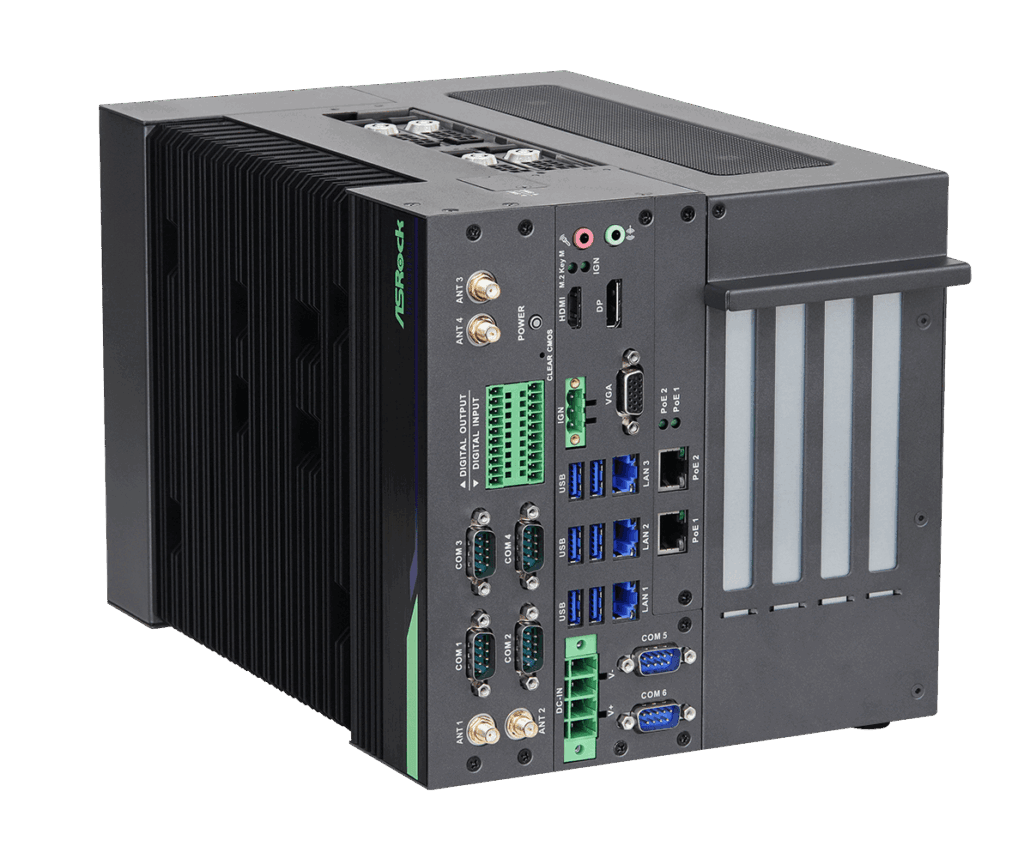

iEPF-9042S-EW4, iEP-9042E

FEATURES

Intel^® Core™ Processors (Series 2) with H610 Chipset
2 x 262-pin DDR5 SO-DIMM up to 96GB (48GB per DIMM)
1 x PCIe x16 ( PCIe Gen5)
2 x PCIe x 4 (PCIe Gen4)
2 x M.2 Key M, 2 x M.2 Key B, 1 x M.2 Key E
6 x USB 3.2 Gen2x1, 6 x COM, Up to 4 x SATA3 (Default 1 piece), 8 x DI, 8 x DO
5 x Intel 2.5G LAN (2 support PoE, LAN 1 supports vPro)
1 x Displayport, 1 x HDMI 2.0b, 1 x VGA
Powerful Edge AI acceleration enabled by the most flexible mechanical, thermal, and power design, with support for 275 mm x 138 mm x 60 mm (D x H x W) max. and up single to 600W graphic card and 245mm x 138 mm x 60 mm (D x H x W) max. with optional fan kit
Supported NVIDIA GPU: RTX 4000 Ada, RTX 2000 Ada, RTX A2000, A2
TAA Compliant

Specifications

Processor System
CPU	Intel® Core™ Processors (Series 2)
System Chipset	Intel® H610
Socket	LGA1700

Graphics
Controller	Intel® UHD Graphics
HDMI	HDMI 2.0b / Max resolution up to 4096×2160@60Hz
DisplayPort	DisplayPort 1.4a , DP++ / Max resolution up to 4096×2160@60Hz
VGA	Max resolution up to 1920×1200@60Hz

Audio
Interface	Realtek ALC897, High Definition Audio

Expansion Slot
PCIe (iEPF-9042S-EW4 Only)	1 x PCIe Gen5 x16 (single x16), PCIe x16 slot with default power cable can support up to 180W graphic card (275mm x 113mm x 60mm (D x H x W), if remove the card holder, it can be limited on 275mm x 138mm x 60mm) Graphic card can be up to 600W with optional VGA module
RF& Antenna	8 x SMA connector hole reserved
M.2	1 x M.2 (Key E, 2230) with CNVI/PCIe Gen3 x1 and USB2.0 for Wi-Fi/BT module 1 x M.2 (Key B1, 2280/3042/3052) with PCIe Gen3 x1 / USB3.2 Gen1x1 and USB2.0 for 4G / 5G 1 x M.2 (Key B2, 3042/3052) with PCIe Gen3 x1 / USB3.2 Gen1x1 and USB2.0 for 4G / 5G
SIM Socket	2 x Nano SIM Card slot (2 connected to M.2 Key B)

Ethernet
Controller/ Speed	2 x Intel® i226IT 2 x Intel® i226IT (PoE Support, each port supports IEEE 802.3AT PoE, PoE output max.30W/single port or 30W/two ports shared)
Connector	4 x RJ45

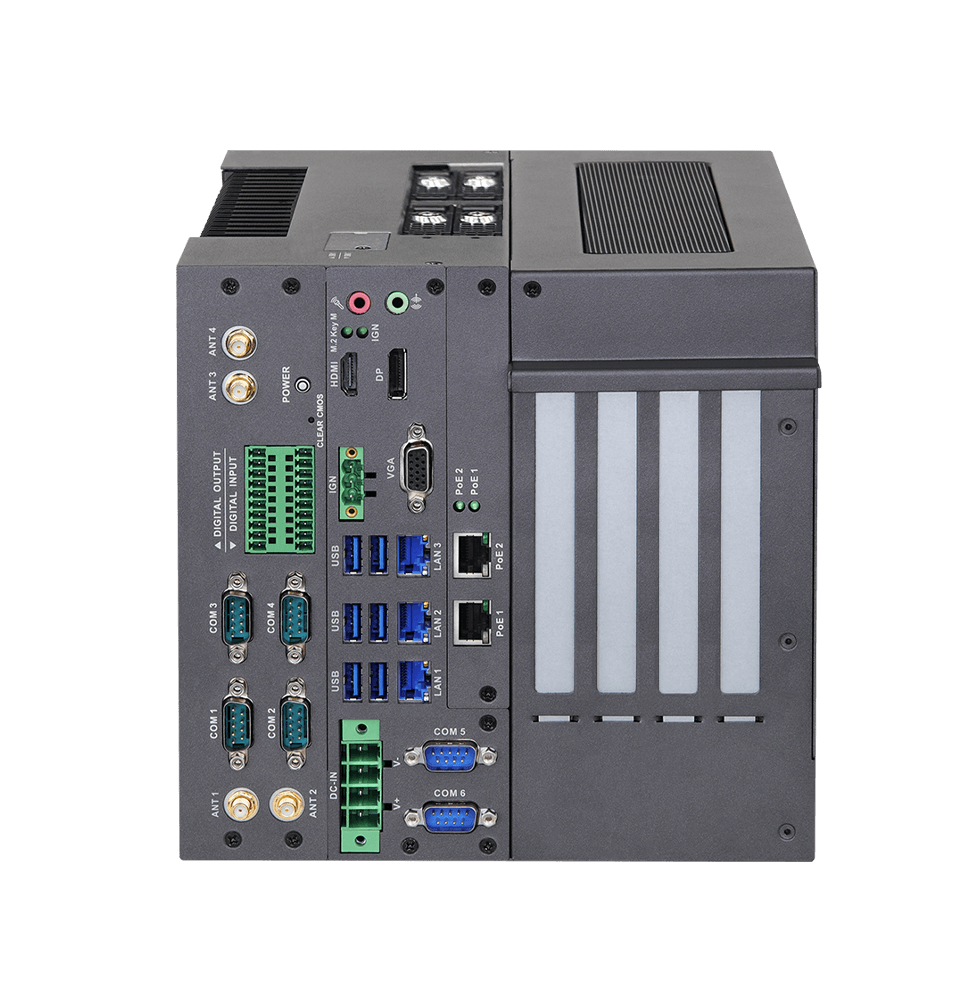

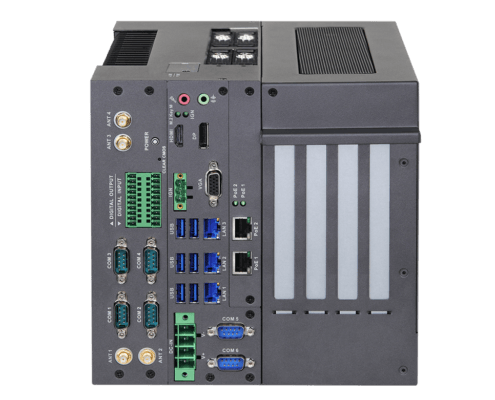

Front IO Ports
DisplayPort	1
HDMI	1
VGA	1
Ethernet	4 x Intel 2.5G LAN
USB	4 x USB 3.2 Gen2x1, 2 x USB 2.0 Gen2x1, 1 x USB2.0 internal connector w/ lock function
Audio	1 x Mic-in, 1 x Line-out
COM	4 x RS232/422/485 (COM1, COM2- optional Card w/ Isolation Protection, COM5- Isolation Protection , COM6)2 x RS232 (COM3, COM4)
DIO	8DIs/8DOs

Watchdog Timer
Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, …255sec

Power Requirements
Input PWR	9V~36V VDC with Ignition control and remote power on/off switch. 80V Surge Protection, OVP, UVP, OCP and reverse protection Ignition Power Input w/ 13-mode condition

Environmental
Operation Temperature (w/ air flow 0.5~0.8 m/s) (iEPF-9042S-EW4)	46W~65W CPU: -40°C~55°C (-40°F~131°F) (with FAN inside, without Add-on Card)
Operation Temperature (w/ air flow 0.5~0.8 m/s) (iEP-9042E)	46W~65W CPU: -40°C~50°C (-40°F~122°F)
Storage Temperature	-40°C~85°C (-40°F~185°F)
Humidity	~95% @ 40°C (non-condensing)
Shock	Operating: 50 G, half sine 11ms duration with SSD (More stringent than MIL-STD-810H)
Vibration	Operating: 5 Grms, 5-500 Hz, 3 axes with SSD (More stringent than MIL-STD-810H)
ESD	Contact +/-4kV, Air +/-8kV
EMC	EN61000-6-4/-2, CE & FCC Class A
Safety	LVD

Mechanical
Construction	Aluminum heatsink + Metal chassis
Mounting	Desk Mount
Dimensions(iEPF-9042S-EW4)	209.8mm (W) x 290.8mm (D) x 207.1mm (H) (8.26″ x 11.45″ x 7.94″)
Dimensions(iEP-9042E)	201.7mm (W) x 244.8mm (D) x 109.5mm (H) (7.94″ x 9.64″ x 4.31″)
Net Weight	iEPF-9042S-EW4: 10kgiEP-9042E: 6.5kg
