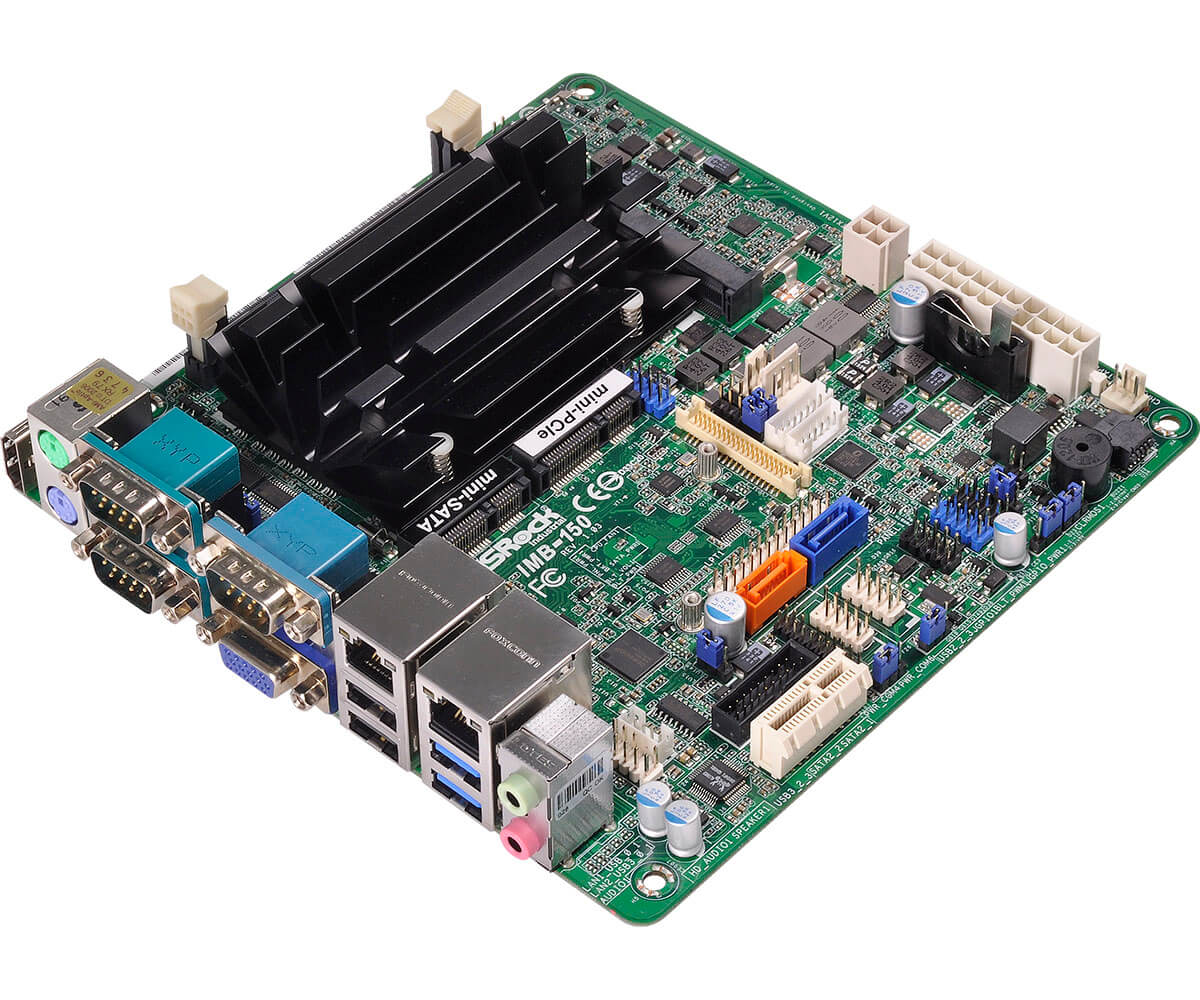

IMB-150
Mini-ITX Motherboard
Product Availability : Against PO
FEATURES
- Intel® Baytrail SoC Processor J1900 / N2930
- Supports Dual Channel DDR3L SO-DIMM 1333, up to 8GB
- 1 x HDMI, 1 x VGA, 1 x LVDS
- 4 x USB 3.0, 6 x USB 2.0, 2 x SATA2
- 1 x Mini-PCIe, 1 x PCIe x1, 1 x mSATA
- 2 x Realtek LAN
- 1 x TPM Header
- 9-19V DC-In (4-pin ATX PWR Con)
DOWNLOAD
Specifications
Form Factor | |
Dimensions | Mini-ITX (6.7-in x 6.7-in) |
Processor System | |
CPU | Intel® Baytrail SoC Processor J1900 / N2930, QC, 2.00 GHz, 10 W |
Chipset | SoC |
Memory | |
Technology | Dual Channel DDR3 1333 MHz |
Capacity | 8GB |
Socket | 2 x SO-DIMM |
Graphics | |
Controller | Intel® Gen7 Intel Graphics DX 11*, OGL3.2 |
HDMI | Supports max resolution up to 1920 x 1200 |
VGA | Max resolution up to 1920 x 1200@60Hz |
LVDS | Supports max resolution up to 1920 x 1200@60Hz |
MultiDisplay | Dual Display |
Expansion Slot | |
PCIe | 1 x PCIe x1 |
mini-PCIe | 1 x Half size with PCIe x1 |
Ethernet | |
Controller/ Speed | 10/100/1000 Mbps |
Connector | 2 x Realtek RTL8111G/RTL8111H-CG |

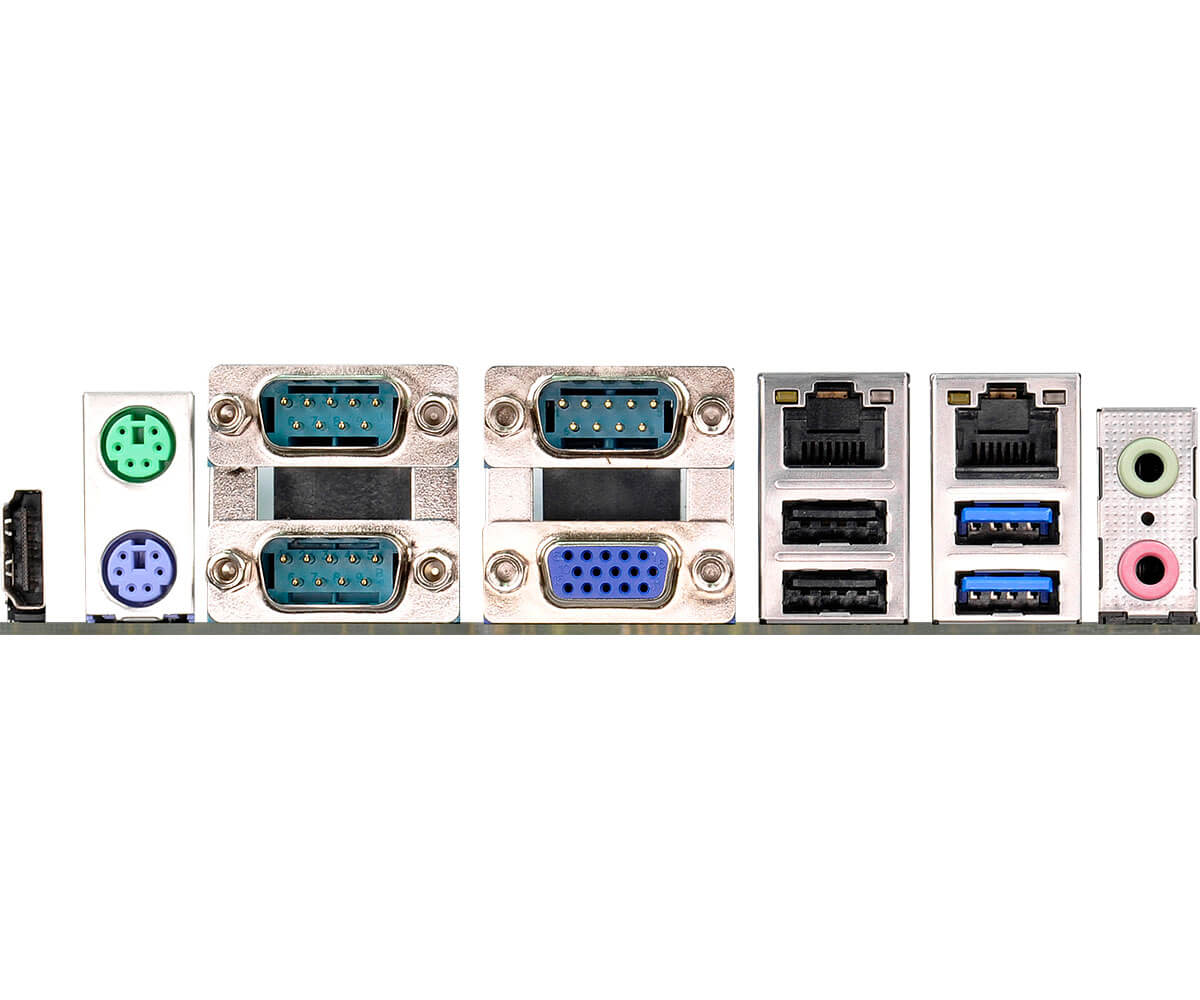

Rear I/O | |
HDMI | 1 |
VGA | 1 |
Ethernet | 2 |
USB | 2 x USB 3.0, 2 x USB 2.0 |
Audio | 2 (Mic-in, Line-out) |
COM | 3 x COM (RS-232/422/485) |
PS2 | 2 |
Internal Connector | |
USB | 2 x USB 3.0, 4 x USB 2.0 |
COM | 2 x COM (RS-232) |
Parallel | 1 |
GPIO | 4 x GPI + 4 x GPO |
TPM | 1 x Header |
LVDS | 1 |
SATA PWR Output | 1 |
Speaker Header | 1 |
Storage | |
SATA | 2 x SATA2 |
mSATA | 1 x Full size with SATA2 (shared) |
Watchdog Timer | |
Output | From Super I/O to drag RESETCON# |
Interval | 256 Segments, 0, 1, 2, …255sec |
Power Requirements | |
Input PWR | 9-19V DC-In (4-pin ATX PWR Con) |
Power On | AT/ATX Supported – AT : Directly PWR on as power input ready – ATX : Press button to PWR on after power input ready |
Environment | |
Operating Temp | 0ºC ~ 60ºC |
Storage Temp | -40° C ~ 85° C |
Operating Humidity | 5% ~ 90% |
Storage Humidity | 5% ~ 90% |
Accessories | |
Gift Package | 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020221000AK) 2 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) |
Bulk Package | 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020221000AK) |
