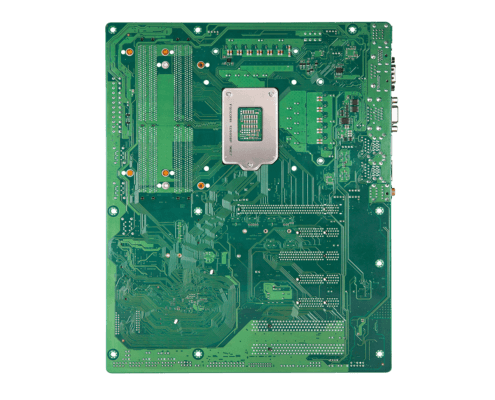

IMB-1711
ATX Motherboard
Product Availability : Against PO
FEATURES
- Intel® 10th Gen (Cometlake-S) Core™ Processors with Q470E chipset
- 4 x 288-pin Long-DIMM, Support Dual Channel DDR4 2933 (i9 / i7 CPU / 2666 (i5 / i3 CPU) / 2400 (Pentium / Celeron CPU), up to 128GB
- 1 x PCIe x16 Gen3, 1 x PCIe x8 Gen3, 3 x PCIe x4 Gen3, 2 x PCI
- 4 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 4 x USB 2.0
- 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 6 x SATA3
- 1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN
- Support Triple display, 1 x DP 1.2, 1 x VGA, 1 x HDMI 2.0a
- TPM 2.0 onboard
- Supports Intel® vPro, AMT, RAID 0/1/5/10
- ATX-PWR (24+8-pin)
DOWNLOAD
Specifications
| Form Factor | |
| Dimensions | ATX (12-in x 9.6-in) |
| Processor System | |
| CPU | Intel® 10th Gen (Cometlake-S) Core™ Processors, up to 125 W |
| Chipset | Intel® Q470E |
| Socket | LGA1200 |
| BIOS | AMI SPI 256 Mbit |
| Memory | |
| Technology | Dual Channel DDR4 2933 / 2666 / 2400 MHz – Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz – Intel Core i5 / i3 CPUs support DDR4 up to 2666 MHz – Intel Pentium / Celeron CPU support DDR4 up to 2400 MHz |
| Capacity | 128GB |
| Socket | 4 x 288-pin Long-DIMM |
| Graphics | |
| Controller | Intel® UHD Graphics |
| HDMI | HDMI 2.0a, Max resolution up to 4096 x 2160@60Hz |
| DisplayPort | DisplayPort 1.2, DP++ Max resolution up to 4096 x 2160@60Hz |
| VGA | Max resolution up to 1920 x 1200@60Hz |
| MultiDisplay | Triple Display |
| Expansion Slot | |
| PCIe | 3 x PCIe Gen3 Slots (PCIE1 / PCIE2 / PCIE3: Single at x16 (PCIE1); Dual at x8 (PCIE1) / x8 (PCIE3); Triple at x8 (PCIE1) / x4 (PCIE2) / x4 (PCIE3)) 2 x PCIe x4 (Gen3) |
| PCI | 2 x PCI |
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042 / 3052) with PCIe x1 / USB 3.2 Gen1 / USB 2.0 and SIM socket for 4G / 5G |
| SIM Socket | 1 x SIM socket connected to M.2 Key B |
| Audio | |
| Interface | Realtek ALC887/ALC897 HD, High Definition Audio. Line-In / Line-Out / Mic-In |
| Ethernet | |
| Controller/ Speed | LAN1: Intel® I225LM with 10/100/1000/2500 Mbps LAN2: Intel® I219LM with 10/100/1000 Mbps, support AMT / vPro |
| Connector | 2 x RJ-45 |

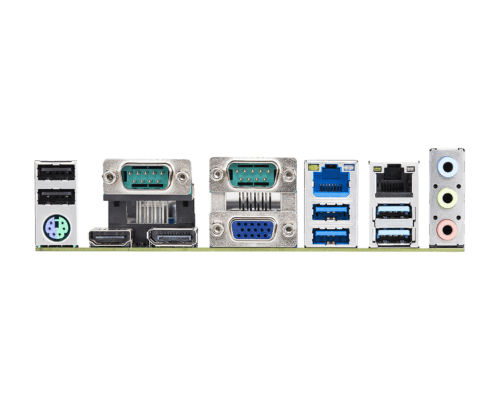

| Rear I/O | |
| HDMI | 1 x HDMI 2.0a |
| DisplayPort | 1 x DP 1.2 |
| VGA | 1 |
| Ethernet | 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN |
| USB | 4 x USB 3.2 Gen2, 2 x USB 2.0 |
| Audio | 3 ( Line-In, Line-Out, Mic-In ) |
| COM | 2 x COM (RS-232/422/485) |
| PS2 | 1 |
| Internal Connector | |
| USB | 4 x USB 3.2 Gen1 (2 x USB 3.2 Gen1 header) 2 x USB 2.0 (1 x 2.54 pitch header) |
| COM | 4 x COM (RS-232) |
| Parallel | 1 |
| GPIO | 8 x GPI, 8 x GPO (shared with LPT header) |
| TPM | TPM 2.0 onboard |
| Speaker Header | 1 |
| Storage | |
| M.2 | 1 x M.2 (Key M, 2242 / 2260 / 2280) with SATA3 and PCIe x4 for SSD * Shared with SATA3_5 / SATA3_6 Ports – When using M.2 PCIe x4 SSD, both SATA3_5 and SATA_6 Ports are disabled – When using M.2 SATA SSD, only SATA3_5 Port is disabled, and SATA3_6 Port is available |
| SATA | 6 x SATA3 (6Gb/s) |
| RAID | Intel® SATA RAID 0/1/5/10 |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 segments, 0,1,2…255sec |
| Power Requirements | |
| Input PWR | ATX PWR (24+8-pin) |
| Power On | AT/ATX Supported AT : Directly PWR on as power input ready ATX : Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | 0ºC ~ 60ºC |
| Storage Temp | -40° C – 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
| Accessories | |
| Gift Package | 3 x SCREW M2,D=5 (13G020302031AK) 1 x I/O Shield (13G020643000AK) 2 x SATA Data Cable (14G00010107DAK) |
| Bulk Package | 3 x SCREW M2,D=5 (13G020302031AK) 1 x I/O Shield (13G020643000AK) |
