FEATURES
- Intel® Core™ Processor Series 2 (Bartlett Lake-S) and 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with H610 chipset
- 2 x 288-pin Long-DIMM DDR5 4800/5600 MHz, up to 96GB (48 GB per DIMM)
- 1 x PCIe x16 (Gen5), 1 x PCIe x4 (Gen3), 1 x PCIe x1 (Gen3), 4 x PCI
- 2 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 5 x USB 2.0
- 1 x M.2 Key M, 6 x COM, 4 x SATA3
- 1 x Intel 1 Gigabit LAN, 1 x Realtek 2.5 Gigabit LAN with PoE function
- Supports Triple display, 1 x HDMI 2.0b, 2 x DP 1.4a, 1 x VGA
- TPM 2.0 onboard IC
- ATX PWR (8+24pin)
DOWNLOAD

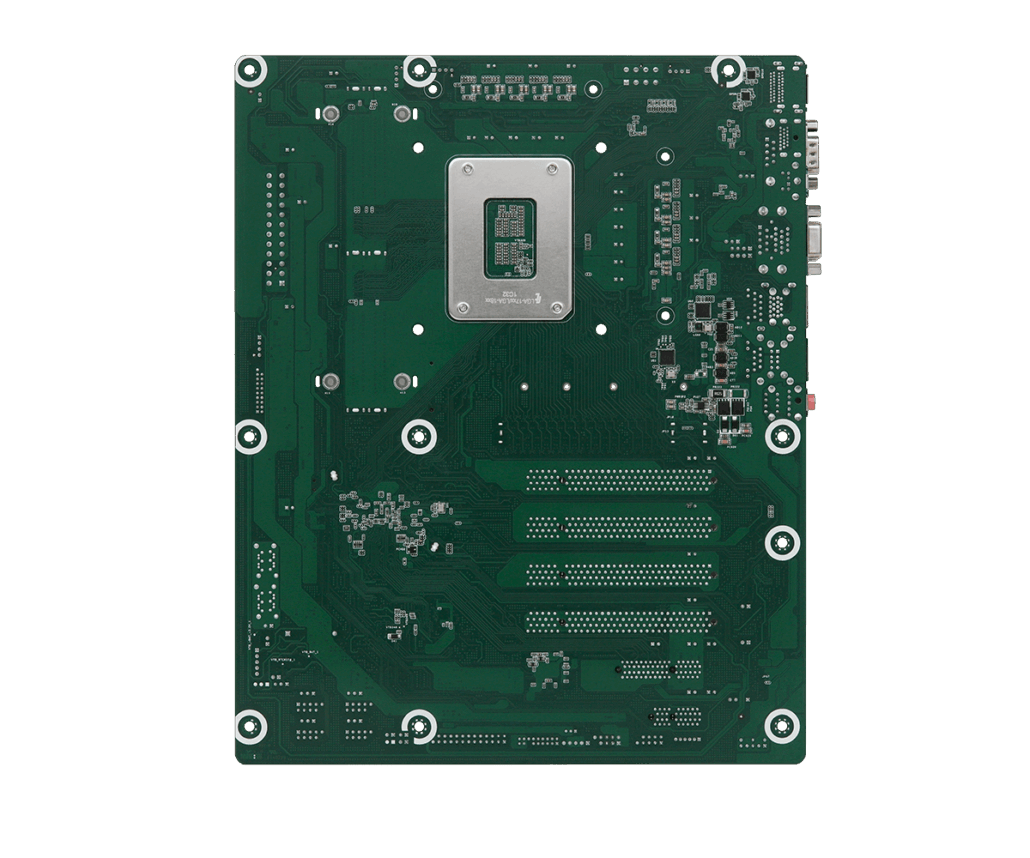

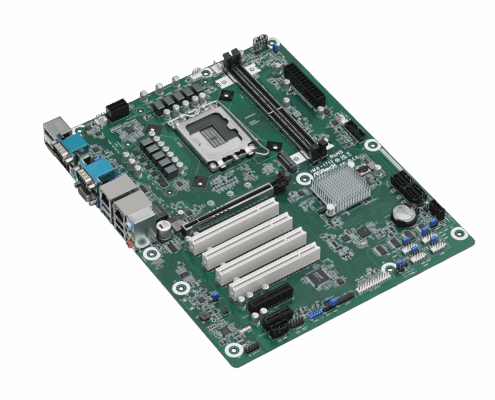

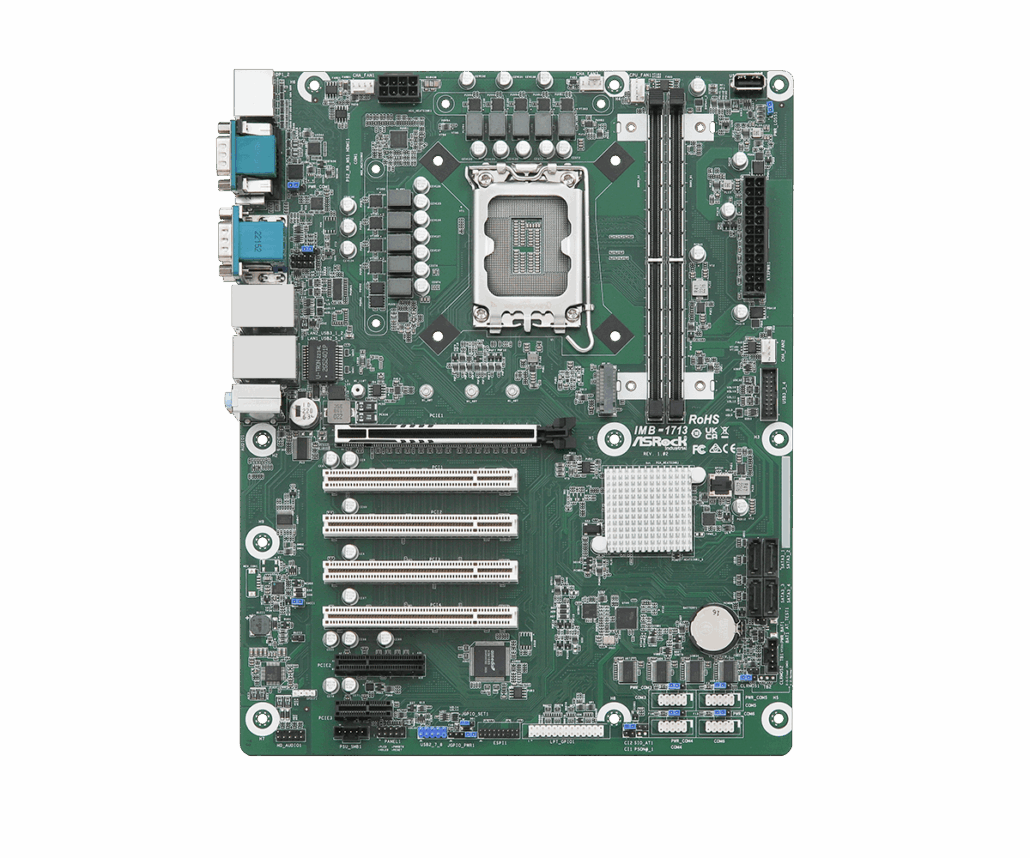

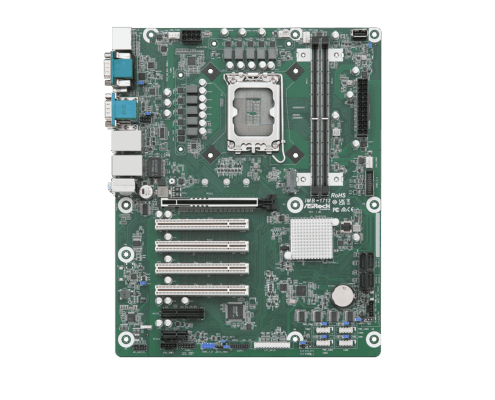

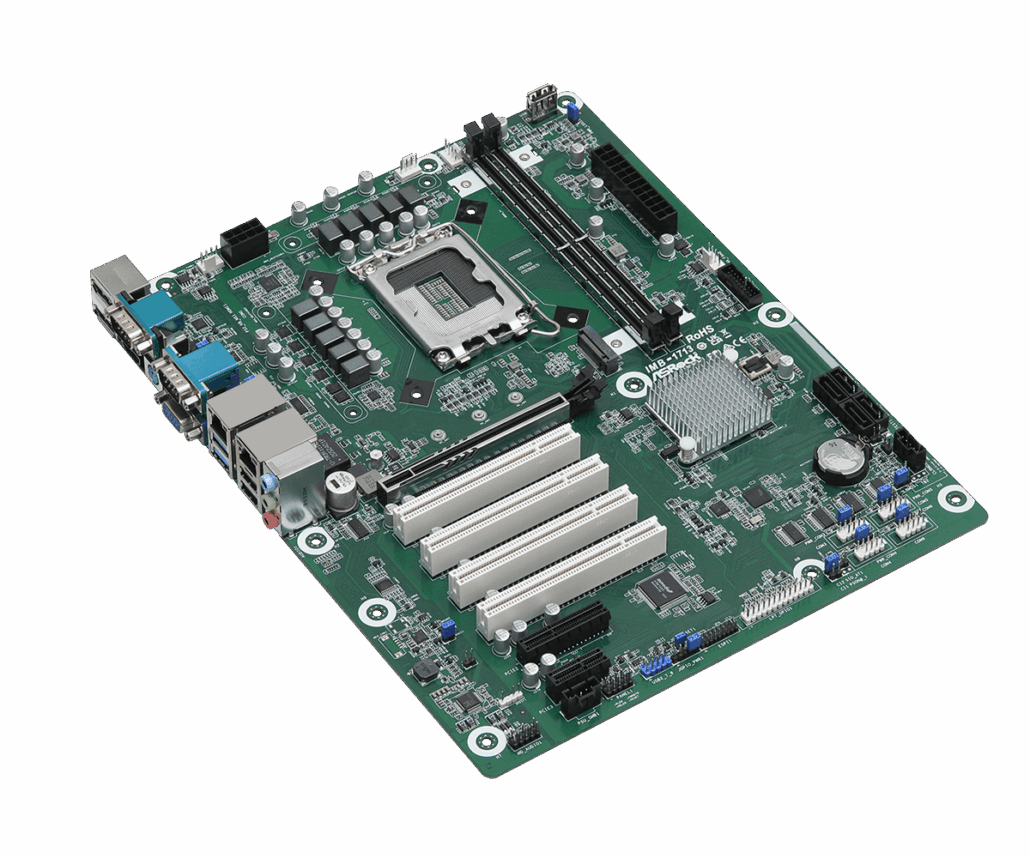

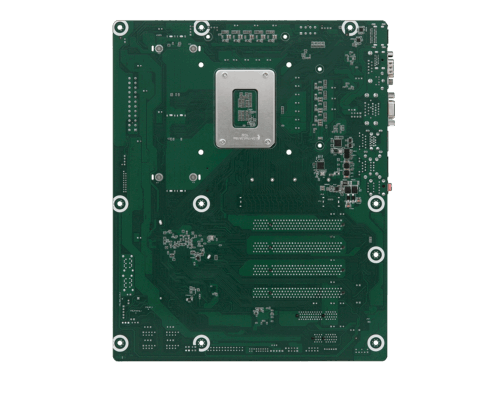

IMB-1713
Specifications
Processor System
| CPU | Intel® 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 125 W |
|---|---|
| Chipset | Intel® H610 |
| Socket | LGA1700 |
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | ATX (12-in x 9.6-in x 1.4-in, 30.5 cm x 24.4 cm x 3.6 cm) |
|---|
Memory
| Technology | Dual Channel DDR5 4800/5600 MHz* *Actual memory frequency depends on the CPU types and DRAM modules, for more information refer to https://www.asrockind.com/en-gb/index.php?route=newsblog/faq&faq_id=90 technical FAQ |
|---|---|
| Capacity | 96GB (48GB per DIMM) |
| Socket | 2 x 288-pin Long-DIMM |
Graphics
| Controller | Intel® UHD Graphics |
|---|---|
| HDMI | HDMI 2.0b Max resolution up to 4096×2160@60Hz |
| DisplayPort | DisplayPort 1.4a, DP++ Max resolution up to 4096×2160@60Hz |
| VGA | Max resolution up to 1920 x 1200@60Hz |
| MultiDisplay | Triple Display |
Expansion Slot
| PCIe | 1 x PCIe x16 (Gen5) 1 x PCIe x4 (Gen3) 1x PCIe x1 (Gen3) |
|---|---|
| PCI | 4 x PCI |
Audio
| Interface | Realtek ALC897, High Definition Audio. Line-In, Line-Out, Mic-In |
|---|
Ethernet
| Controller/ Speed | LAN1: Realtek® RTL8125BG with 10/100/1000/2500 Mbps, supports PoE LAN2: Intel® I219V with 10/100/1000 Mbps *PoE Output (DC) : 54V(IEEE802.3af/at), Imax 0.6A |
|---|---|
| Connector | 2 x RJ-45 |

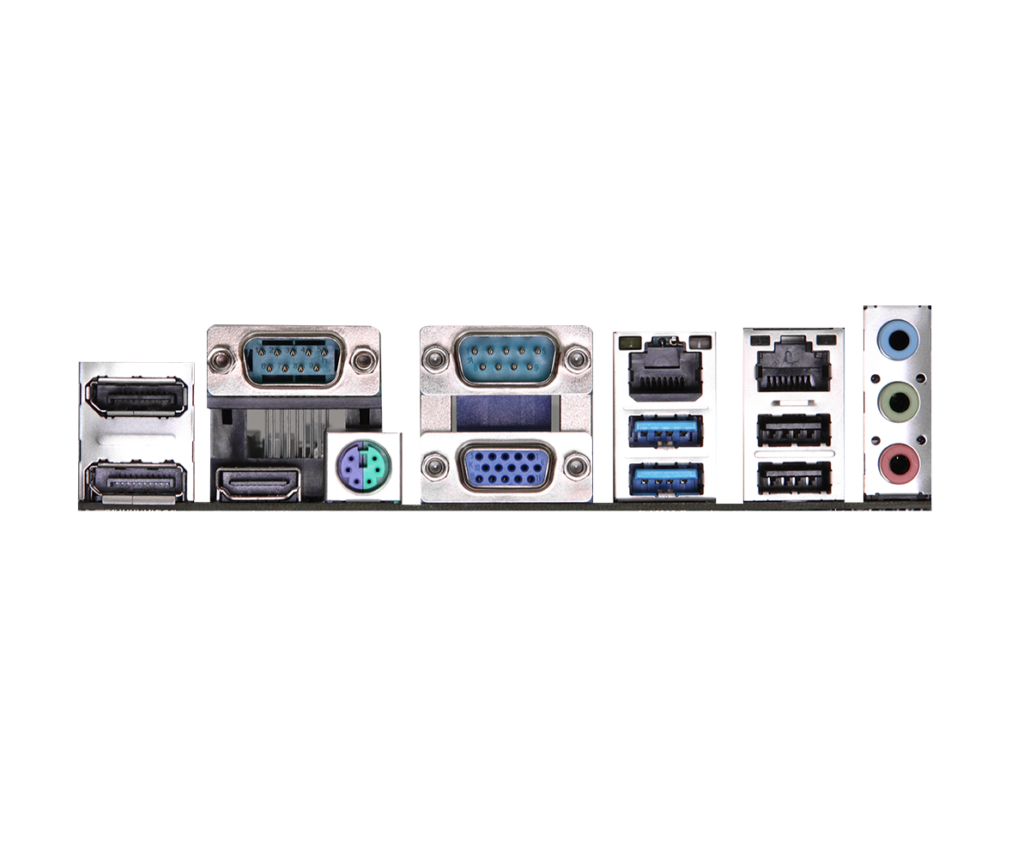

Rear I/O
| HDMI | 1 x HDMI 2.0b |
|---|---|
| DisplayPort | 2 x DP 1.4a++ |
| VGA | 1 |
| Ethernet | 1 x 1 Gigabit LAN 1 x 2.5 Gigabit LAN |
| USB | 2 x USB 3.2 (Gen2) 2 x USB 2.0 |
| Audio | 3( Line-In, Line-Out, Mic-In ) |
| COM | COM1, COM2 (RS-232/422/485) |
| PS2 | 1 x PS/2 combo |
Internal Connector
| USB | 2 x USB 3.2 Gen1 (1 x USB 3.1 header) 3 x USB 2.0 (1 x 2.54 pitch header, 1 x USB 2.0 Type-A vertical con) |
|---|---|
| COM | COM3, COM4, COM5, COM6 (RS-232) |
| Parallel | 1 (shared with GPIO) |
| GPIO | 8 x GPI, 8 x GPO, (shared with LPT header) |
| Speaker Header | 1 |
Security
| TPM | TPM 2.0 onboard IC |
|---|
Storage
| M.2 | 1 x M.2 (Key M, 3042/2260/2280/22110) with PCIe Gen3 x 1 |
|---|---|
| SATA | 4 x SATA3 (6Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 segments, 0,1,2…255sec |
Power Requirements
| Input PWR | ATX-PWR (24+8-pin) |
|---|---|
| Power On | AT/ATX Supported – AT : Directly PWR on as power input ready – ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | -20ºC ~ 70ºC |
|---|---|
| Storage Temp | -40° C – 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 2 x SATA Data Cable (14G00010107DAK) 1 x I/O Shield (13G020505000AK) 1 x SCREW M2*2,D=5 (13G020302031AK) |
|---|---|
| Bulk Package | 1 x I/O Shield (13G020505000AK) 1 x SCREW M2*2,D=5 (13G020302031AK) |
