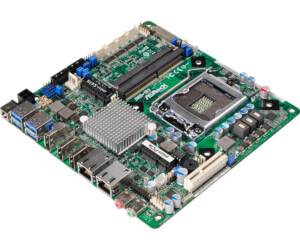

IMB-193
Mini-ITX Motherboard
Product Availability : Against PO
FEATURES
- Socket LGA1151 for Intel® Core i7 / i5 / i3 / Celeron (Skylake-S)
- Intel® Gen9 Intel® Graphics DX 11 / 12, OGL 4.3 / 4.4
- Supports Dual Channel DDR4 2133 MHz, 2 x SO-DIMM, up to 32GB system memory
- 2 x HDMI, 1 x Displayport, 1 x eDP
- 4 x USB 3.0, 4 x USB 2.0, 2 x SATA3
- 1 x Mini-PCIe, 1 x PCIe x4 Slot ,1 x mSATA
- Gigabit LAN : 1 x Intel LAN, 1 x Realtek LAN
- 1 x TPM Header
- 19V DC-in
DOWNLOAD
Specifications

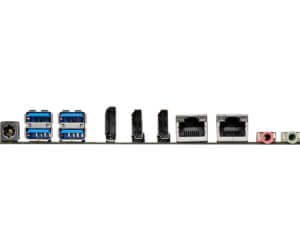

| Form Factor | |
| Dimensions | Mini-ITX (6.7-in x 6.7-in) |
| Processor System | |
| CPU | Socket LGA1151 for Intel® Core i7 / i5 / i3 / Celeron (Skylake-S) |
| Chipset | Intel® H110 |
| BIOS | UEFI |
| Memory | |
| Technology | Dual Channel DDR4 2133 MHz SDRAM |
| Capacity | 32 GB |
| Socket | 2 x SO-DIMM |
| Graphics | |
| Controller | Intel® Gen9 Graphics DX 11 / 12, OGL 4.3 / 4.4 |
| HDMI | Supports HDMI 1.4a, Max. resolution 4096 x 2160@30Hz |
| LVDS | Supports max resolution up to 1920 x 1200@60Hz |
| eDP | Supports Max. resolution 4096 x 2160@60Hz |
| DisplayPort | Supports DP 1.2, Max. resolution 4096 x 2160@60Hz |
| MultiDisplay | Dual Display |
| Expansion Slot | |
| PCIe | 1 x PCIe x4 slot |
| mini-PCIe | 1 x Half size with PCIe x1 and USB2.0 |
| Audio | |
| Interface | Realtek ALC887/897 HD, High Definition Audio. Line-out, Mic-in |
| Ethernet | |
| Controller/ Speed | LAN1: Intel® I219V with 10/100/1000 Mbps LAN2: Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps |
| Rear I/O | |
| HDMI | 2 |
| Ethernet | 2 |
| USB | 4 x USB 3.0 |
| Audio | 2 (Mic-in, Line-out) |
| DisplayPort | 1 |
| DC Jack | 1 |
| Internal Connector | |
| USB | 4 x USB 2.0 (2 x 2.54 pitch header) |
| COM | 4 x RS-232 (COM1 supports RS-232/422/485) |
| TPM | TPM Header |
| eDP | 1 |
| GPIO | 4 x GPI, 4 x GPO |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
| Storage | |
| SATA | 2 x SATA3 (6.0Gb/s) |
| mSATA | 1 x Full size with SATA3 (shared) and USB 2.0 |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 Segments, 0, 1, 2, …255sec |
| Power Requirements | |
| Input PWR | 19V DC-in (DC Jack / 4-pin ATX PWR Con) |
| Power On | AT/ATX Supported – AT : Directly PWR on as power input ready – ATX : Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | 0ºC ~ 60ºC |
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
| Accessories | |
| Gift Package | 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020327000AK) 1 x I/O Shield THIN (13G020327010AK) 2 x COM Cable (14G000000310AK) 2 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) |
| Bulk Package | 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020327000AK) 1 x I/O Shield THIN (13G020327010AK) |
