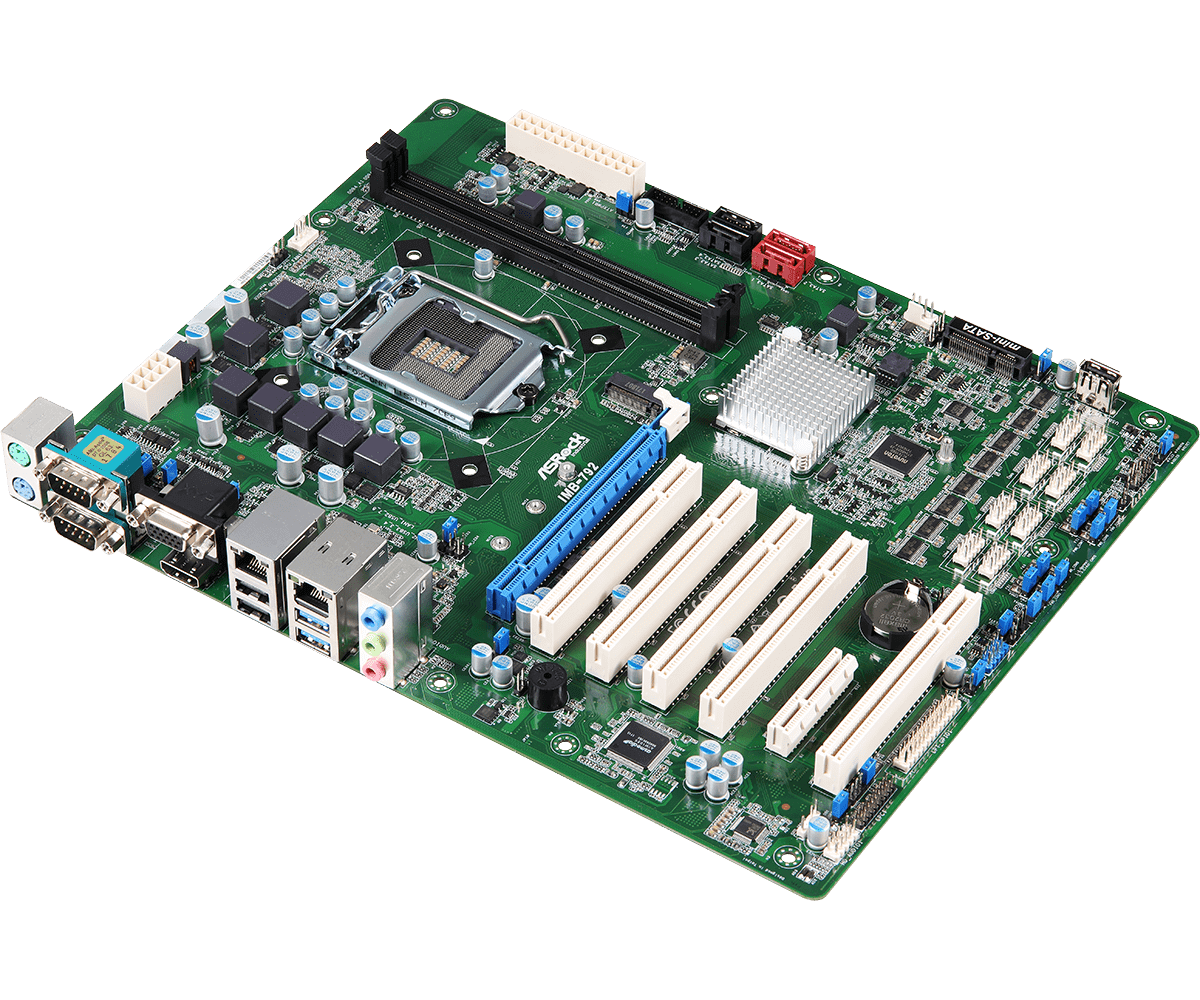

IMB-792
ATX Motherboard
Product Availability : Against PO
FEATURES
- Supports Intel® 7th / 6th Gen (Kabylake-S / Skylake-S) Core™ Processors (Socket 1151)
- Supports Dual Channel DDR4 2133MHz, up to 32GB
- 1 x VGA, 1 x HDMI
- 4 x USB 3.0, 5 x USB 2.0, 4 x SATA3, 10 x COM
- 1 x PCIe x16, 1 x PCIe x4, 5 x PCI,
- 1 x mSATA, 1 x M.2 (KEY M)
- 2 x Intel LAN
- 1 x TPM Header
- ATX PWR 24+8-pin
DOWNLOAD
Specifications
| Form Factor | |
| Dimensions | ATX (12-in x 9.6-in) |
| Processor System | |
| CPU | Intel® 7th / 6th Gen (Kabylake-S/Skylake-S) Core™ Processors |
| Chipset | Intel® H110 |
| Socket | LGA1151 |
| BIOS | AMI SPI 128 Mbit |
| Memory | |
| Technology | Dual Channel DDR4 2133 MHz |
| Capacity | 32GB |
| Socket | 2 x Long-DIMM |
| Graphics | |
| Controller | Intel® Gen9 Graphics DX 11 / 12, OGL4.3/4.4 |
| VGA | Supports max resolution up to 1920 x 1200 |
| MultiDisplay | Dual Display |
| HDMI | Max resolution up to 4096 x 2160@30Hz |
| Expansion Slot | |
| PCIe | 1 x PCIe x16, 1 x PCIe x4 |
| PCI | 5 |
| Audio | |
| Interface | Realtek ALC887, High Definition Audio. Line-out,Mic-in,Line-in |
| Ethernet | |
| Controller/ Speed | Intel® I219V with 10/100/1000 Mbps, Intel I210 with 10/100/1000 Mbps |
| Connector | 2 x RJ-45 |

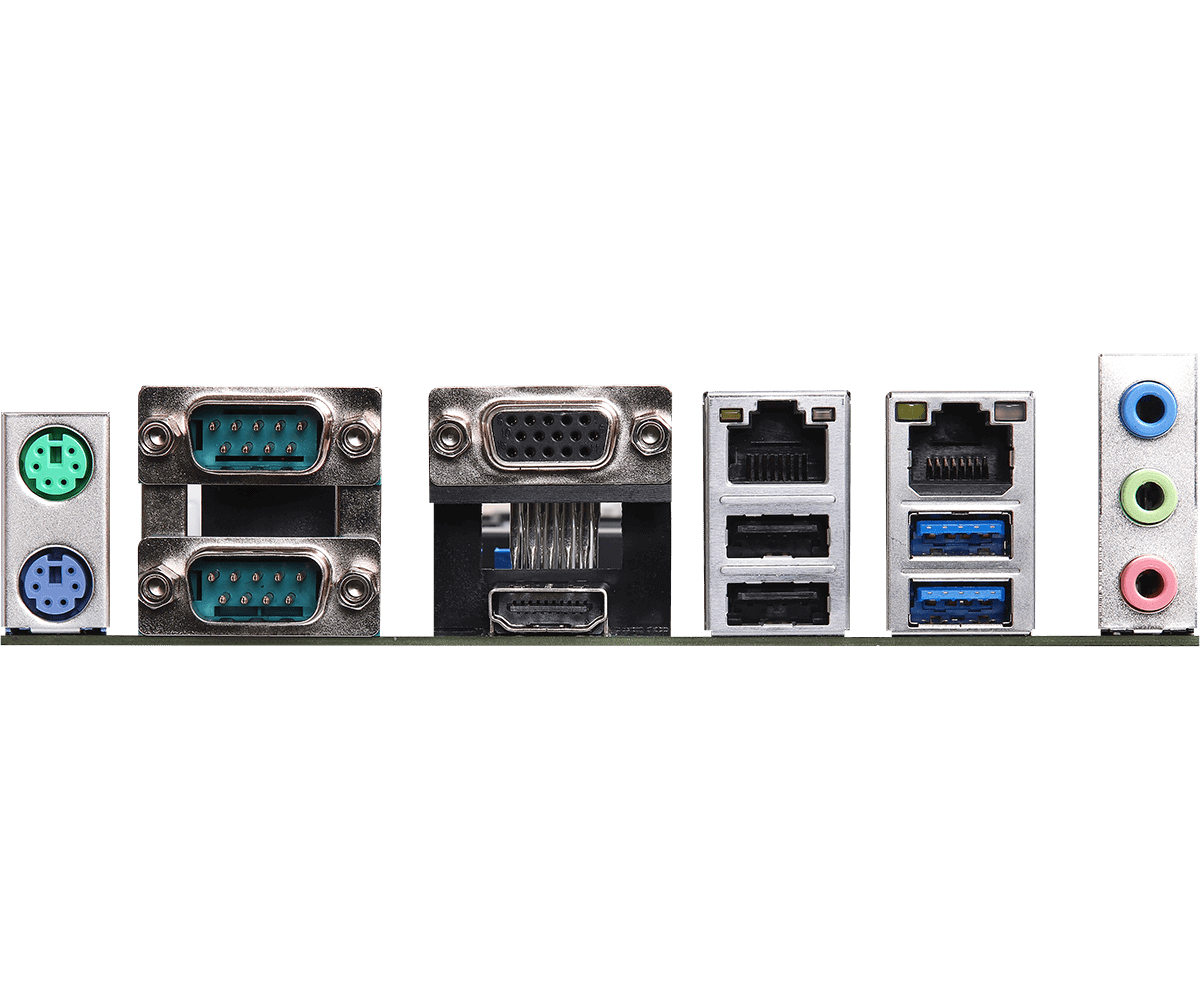

| Rear I/O | |
| VGA | 1 |
| Ethernet | 2 |
| USB | 2 x USB3.0, 2 x USB2.0 |
| Audio | 3 (Mic-in, Line-in, Line-out) |
| COM | 2 x COM (RS-232/422/485) |
| PS2 | 2 (1 x keyboard, 1 x mouse) |
| HDMI | 1 |
| Internal Connector | |
| USB | 2 x USB3.0, 3 x USB2.0 |
| COM | 8 x COM(RS-232) |
| Parallel | 1 (shared with GPIO) |
| GPIO | 8 x GPI, 8 x GPO (shared with LPT header) |
| TPM | 1 x Header |
| Speaker Header | 1 |
| Storage | |
| mSATA | 1 x Full size with shared SATA3 and USB2.0 |
| SATA | 4 x SATA3, one is shared with M.2 Key M, one is shared with mSATA |
| M.2 | 1 x M.2 (Key M, 2242/2260/2280) with shared SATA3 for SSD |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 segments, 0,1,2…255sec |
| Power Requirements | |
| Input PWR | ATX PWR (24+8-pin) |
| Power On | AT/ATX Supported AT : Directly PWR on as power input ready ATX : Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | 0ºC ~ 60ºC |
| Storage Temp | -40° C – 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
| Accessories | |
| Gift Package | 1 x I/O Shield (13G020506000AK) 2 x SATA Data Cable (14G00010107DAK) |
| Bulk Package | 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020506000AK) |
