USB-PS/2 KVM Adapter Module with Local Console and Access Control Box Kit

Product availability:Against PO

Country Of  Origin : Taiwan

FEATURES

  • Compatible with ATEN 2XRT-0015G KVM over IP Access Control Box to grant users at the local console full control of access to servers
  • Cat 5e/6 cable connects the device and KVM switch
  • Supports computers with PS/2 or USB keyboards and mice
  • Local console operation – control your system from the extended USB keyboard, USB mouse, and monitor via local console
  • Pushbutton operating mode selection for privileged console control
  • Built-in ASIC for greater reliability and compatibility
  • USB overcurrent detection and prevention
  • Built-in ESD protection and surge protection
  • Superior video quality – supports resolution up to 1920 x 1200 (Reduced blanking)*
  • Supports VGA , SVGA , SXGA , UXGA , WUXGA and multisyncmonitors; local monitor supports DDC; DDC2; DDC2B
  • Easy to install – no software required – connecting cables to the devices is all it takes

DOWNLOAD

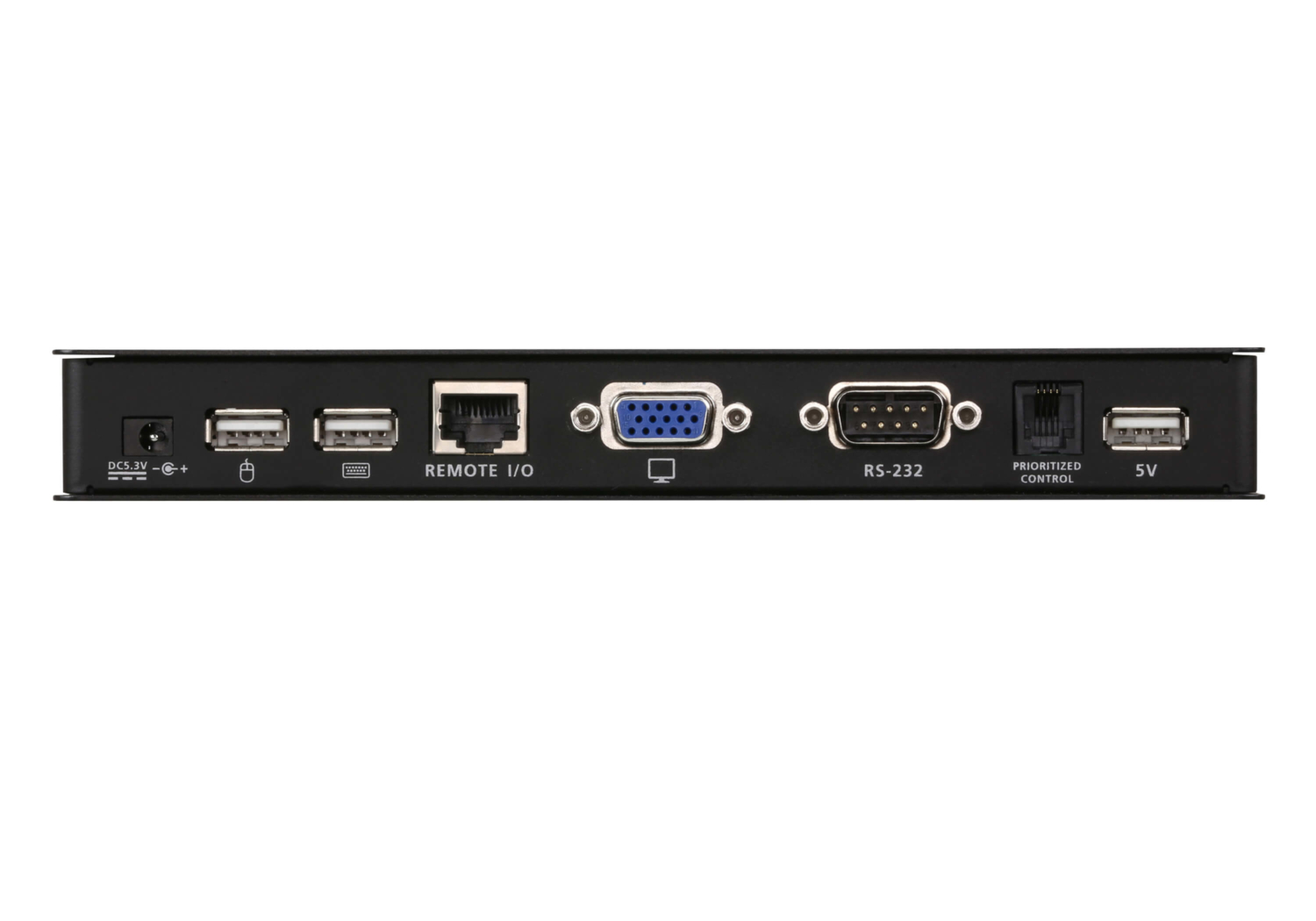

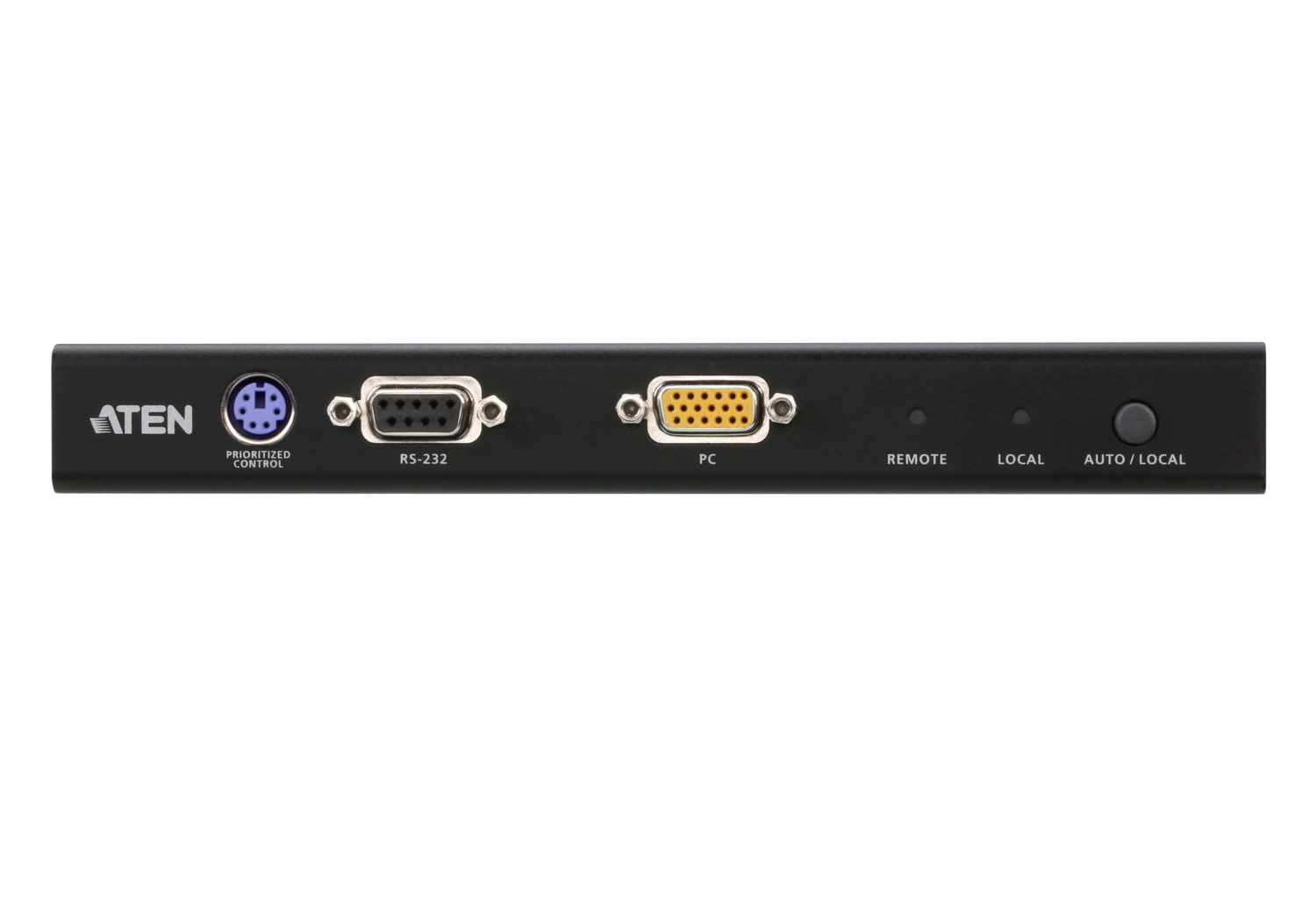

Connectors
Console Ports 2 x USB Type A Female (White)
1 x HDB-15 Female (Blue)
KVM Ports 1 x SPHD-18 Female (Yellow)
Power 1 x DC Jack (Black)
USB Port 1 x USB Type A Female (White)
Control 1 x PS/2
1 x RJ-11 Female (Reserved)
RS-232 1 x DB-9 Male (Reserved)
1 x DB-9 Female (Reserved)
Pushbuttons
Operating Mode Selection 1 x Pushbutton
LEDs
Local 1 (Green)
Remote 1 (Green)
Emulation
Keyboard / Mouse PS/2, USB
Video Up to 1920 x 1200 @ 60Hz; DDC2B
Power Consumption DC5.3V:1.96W:16BTU
Environmental
Operating Temperature 0 – 50°C
Storage Temperature -20 – 60°C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.49 kg ( 1.08 lb )
Dimensions (L x W x H) 20.30 x 8.64 x 2.50 cm
(7.99 x 3.4 x 0.98 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
