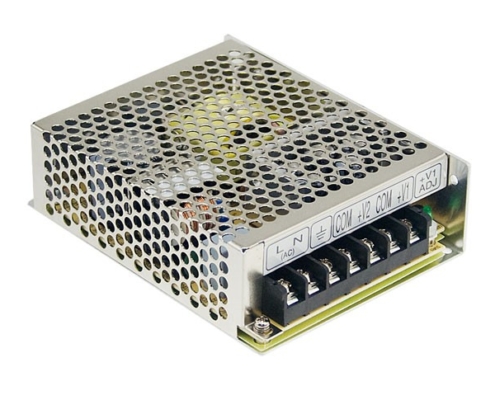

NES-50-24
50W Single Output Switching Power Supply
Product availability: Against PO
FEATURES
- Universal AC input \ Full Range
- Protections: Short Circuit \ Overoad \ Over Voltage
- Cooling by free air convection
- 100% full-load burn in TEST
DOWNLOAD
SPECIFICATIONS
Power | 50W |
Input | 85-264 VAC (47-63 Hz), or 120-370 VDC |
Output | 52.8 W, 24 VDC, 0-2.2 A |
Over-voltage Protection | 27.6-32.4 V |
Overload Protection | 110-150% |
Type | Constant Current Limiting |
Reset | Auto Recovery |
Inrush Current | COLD START 45A |
Safety Standards | UL60950-1, CB(IEC60950-1), CCC GB4943.1: 2011 approved |
EMC Standards | CISPR22 (EN55022) Class B, EN61000-4-2/3 |
Dimensions | 129 x 98 x 38 mm |
Weight | 550 g |
Operating Temperature | -12 to 60°C (14 to 140°F) |
Relative Humidity | 20 to 90% RH non condensing |
