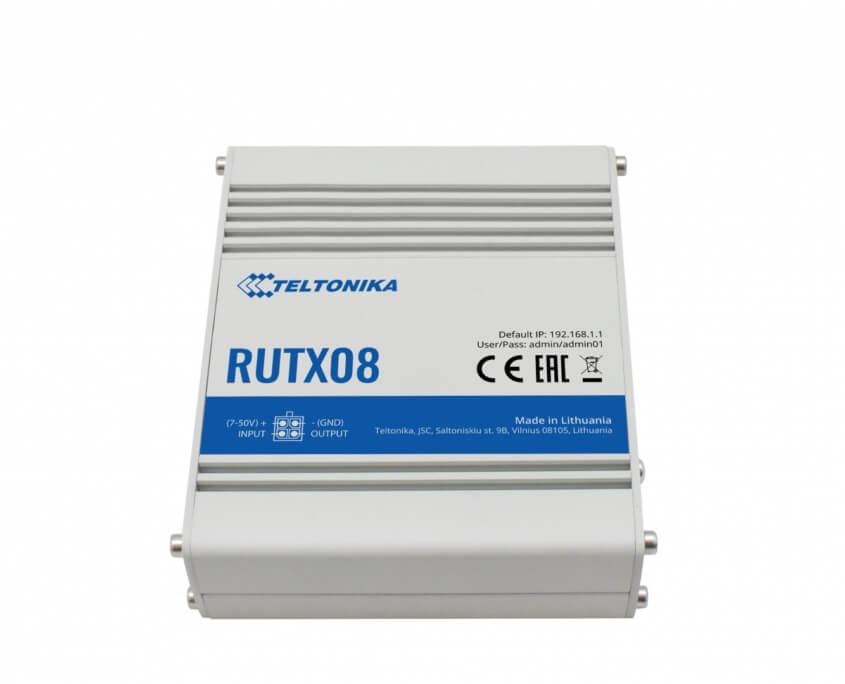

RUTX08 INDUSTRIAL ETHERNET ROUTER
4 x Gigabit Ethernet ports with up to 128 port/tag-based VLANs supported
Product availability : Against PO
FEATURES
- GIGABIT ETH : 4 x Gigabit Ethernet ports with up to 128 port/tag-based VLANs supported
- RMS : Compatible with Teltonika Remote Management System
- 9-50 V : This router supports a wide range of power supply voltage for versatile integration
- SECURITY : Firewall and numerous VPN services including OpenVPN, IPsec, PPTP, L2TP & DMVPN
- RMS : Compatible with Teltonika Remote Management System
DOWNLOAD
SPECIFICATIONS
HARDWARE | |
CPU | Qualcomm, 4 x ARM Cortex A7, 717 MHz |
Memory | 256 MBytes Flash, 256 MBytes RAM |
Powering option | 4pin power socket, 9-50 VDC |
Ethernet | 4 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN |
Inputs/Outputs | On 4pin socket: 1 x Digital input, 1 x Digital open collector output |
Other | 1 x USB Host |
Status LEDs | 8 x Ethernet, 1 x Power |
Operating temperature | -40 °C to 75 °C |
Housing | Aluminium housing with DIN rail mounting option and grounding capability |
Dimensions (W x H x D) | 115 x 32 x 95 mm |
Weight | 345 g |
SOFTWARE | |
Operating system | RutOS (OpenWrt based Linux OS) |
Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet |
Routing | Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules |
Firewall | Port forward, Traffic rules, Custom rules, Pre-configured firewall rules, DMZ, NAT, NAT-T, NAT helpers, Unlimited firewall configuration via CLI |
Security | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), Port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
VPN and tunneling | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier |
Monitoring and management | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS |
Cloud solutions | RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
Services | DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba), Traffic Logging |
Administration | Multi user, Configuration profiles, Diagnostics, logs, Configuration backup |
