INDUSTRIAL CELLULAR ROUTER
Product Availability : Against PO
Country Of Origin: Taiwan
FEATURES
- 4G LTE (Cat 4) mobile data support (DL up to ~150 Mbps / UL up to ~50 Mbps)
- Backwards support for 3G and 2G networks
- 3GPP Release 9
- Built‑in Wi‑Fi (IEEE 802.11b/g/n) — can work as Access Point (AP) or Station (STA)
- Hotspot functionality
- Up to ~50 simultaneous Wi‑Fi users
- Wi‑Fi security options (WPA2, WPA3, enterprise modes)
- 1 × WAN (10/100 Mbps) and 1 × LAN (10/100 Mbps)
- Auto MDI/MDIX support
- WAN Failover to mobile (backup) network
- Bridge & Passthrough connection modes available
- Static & dynamic routing (BGP / OSPF / RIP / EIGRP etc.)
- VLAN support, load balancing, QoS/SQM
- DHCP server/relay, NAT, DMZ
- Remote Management System (RMS) support
- Multiple VPN types:
• OpenVPN client/server
• IPsec (IKEv1/v2)
• WireGuard
• GRE / PPTP / L2TP
• ZeroTier & other tunnel options.
DOWNLOAD
rut200-datasheet-v1
Specifications
| Specification | Details |
|---|---|

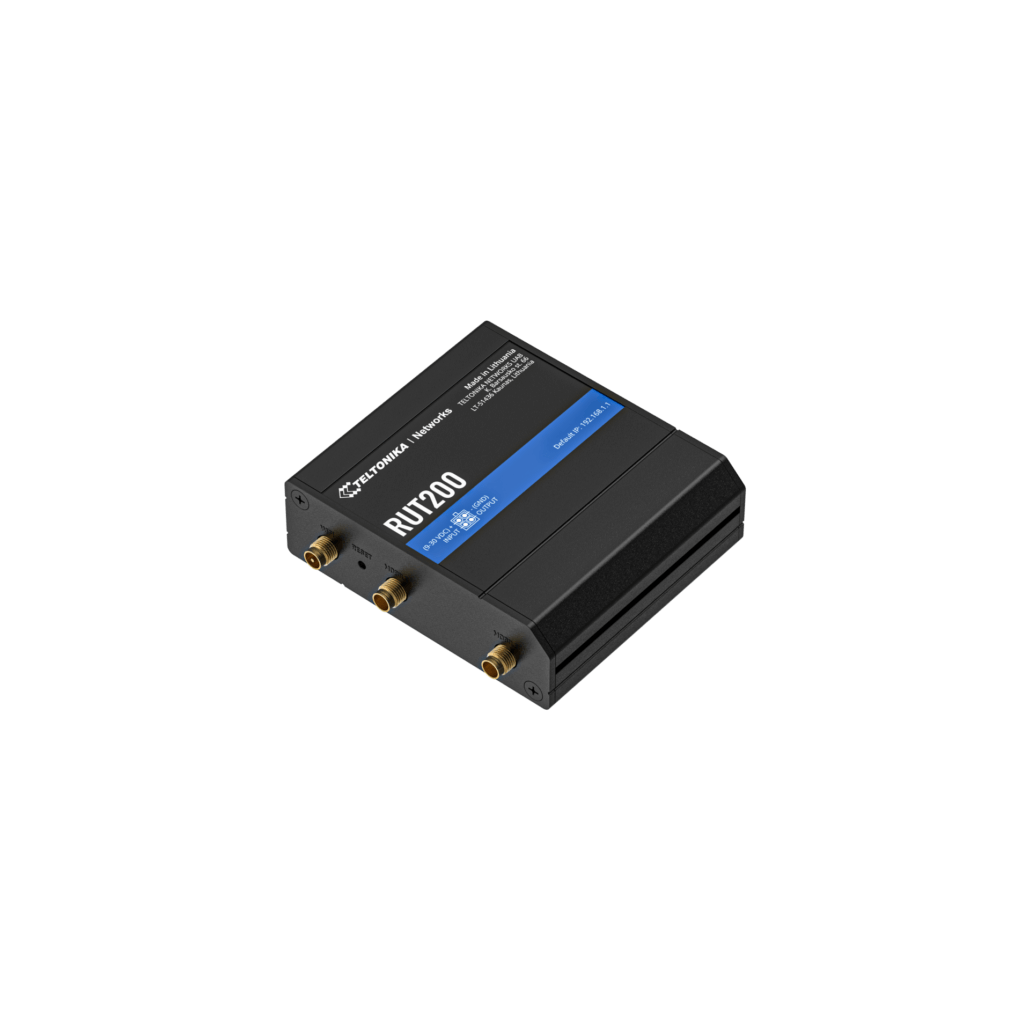

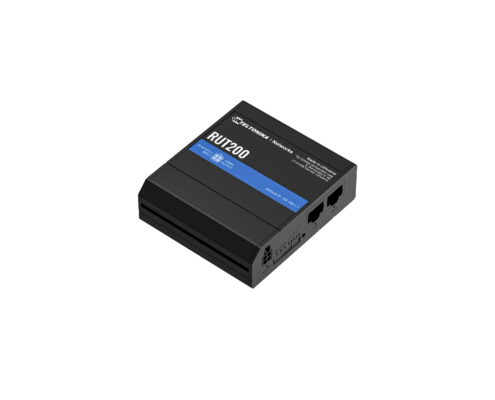

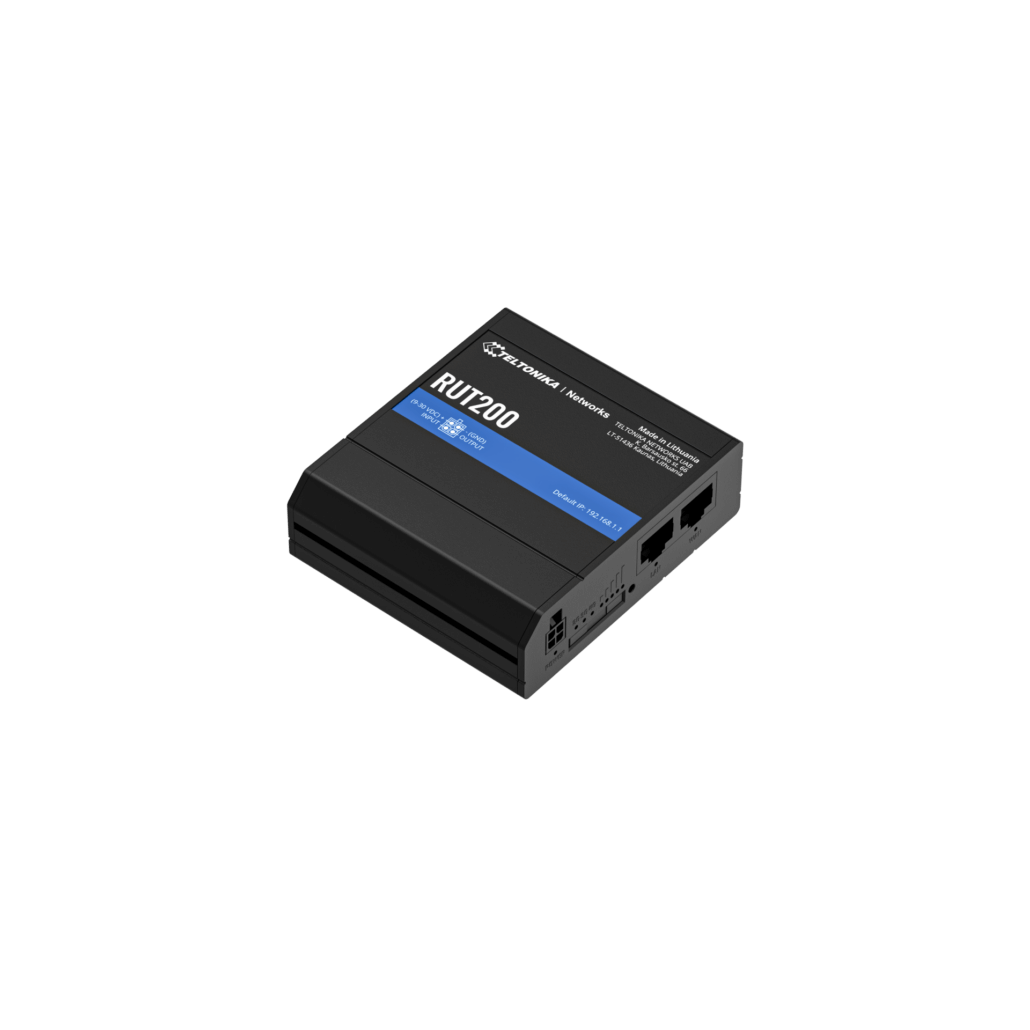

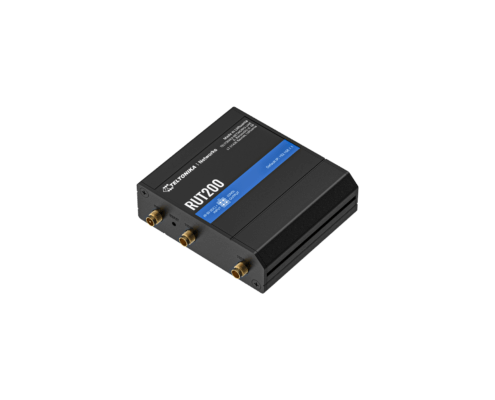

| Model | Teltonika RUT200 Industrial 4G LTE Router |
| Network Support | 4G LTE Cat 4 (DL 150 Mbps / UL 50 Mbps), 3G, 2G fallback |
| SIM Slots | 1 × Mini SIM (2FF) |
| WAN / LAN Ports | 1 × Ethernet LAN/WAN, 1 × Ethernet LAN |
| Wi‑Fi | 2.4 GHz IEEE 802.11b/g/n, up to 150 Mbps |
| Antenna Connectors | 2 × SMA (LTE), 1 × SMA (Wi‑Fi) |
| Power Input | 9–30 V DC (2‑pin) |
| Power Consumption | Idle < 3 W, Max ~5 W |
| Operating Temperature | −40 °C to +75 °C |
| Mounting | DIN rail, Wall, Flat surface |
| Dimensions (W×H×D) | 94 × 52 × 26 mm |
| Weight | ~100 g |
| Software / Features | VPN (OpenVPN, IPsec), firewall, NAT, QoS, SMS control, Remote Management via Teltonika RMS |
