FEATURES
-
4G LTE (Cat 4) connectivity with up to ~150 Mbps down / ~50 Mbps up speeds (also supports 3G & 2G fallback).
-
Dual SIM support with automatic failover/back‑up switching (e.g., weak signal, no network, roaming, data/SMS limits).
-
Auto APN, band management, SIM idle protection and detailed mobile network status info.
-
Wi‑Fi 4 (802.11b/g/n) access point with hotspot functionality.
-
Security standards including WPA2/WPA3 modes, client separation, MAC access control, and up to ~100 simultaneous clients.
-
Optional captive portal/landing page capabilities
-
1× WAN + 3× LAN 10/100 Mbps Ethernet ports (auto MDI/MDIX).
-
Routing features: static & dynamic routing, policy‑based routing, BGP/OSPF/RIP support.
-
Network failover & load balancing between WAN, cellular, and Wi‑Fi.
-
DHCP, DNS, DDNS, QoS/SQM, VLANs, and secured DNS over HTTPS.
-
Built‑in firewall, NAT, DMZ, and attack prevention (e.g., DDOS, port scans).
-
VPN support: OpenVPN (many encryption modes), IPsec, PPTP, L2TP, GRE, DMVPN.
-
Rugged design: Operating –40 °C to +75 °C, IP30 casing, aluminium housing.
-
Digital I/O: 1× input, 1× output for simple control/alerts.
-
Flexible power range: 9–30 V DC with reverse polarity protection.
-
External antennas for LTE & Wi‑Fi, status LEDs, reset button.
- Web UI, SSH, SNMP, FOTA (firmware over‑the‑air), SMS commands, and JSON‑RPC API.
DOWNLOAD
Datasheet_RUT901_1.20
Specifications
| Category | Specification |
|---|---|

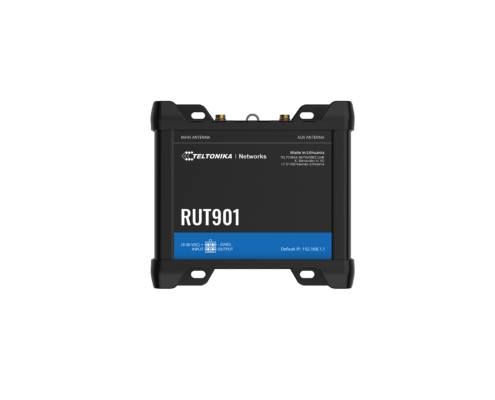

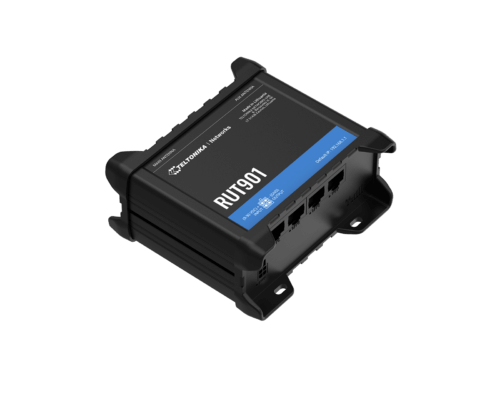

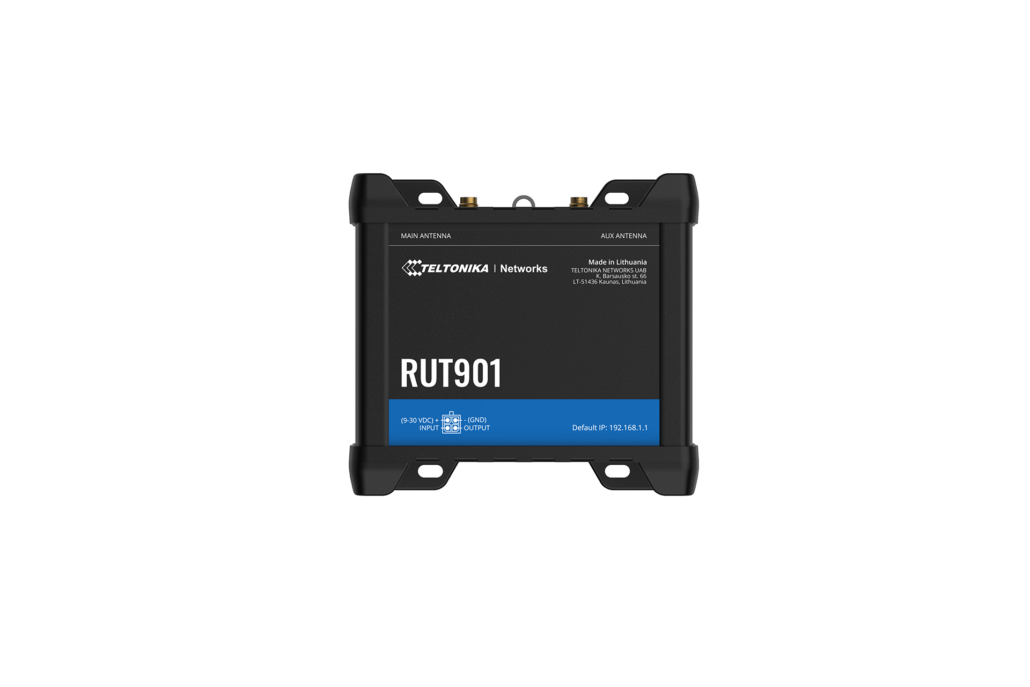

| Model | RUT901 |
| Type | Industrial 4G LTE Cat 4 Router |
| Cellular | 4G LTE Cat 4 (150 Mbps DL / 50 Mbps UL), 3G (21/5.76 Mbps), 2G (236.8 kbps) |
| SIM Slots | 2 × Mini SIM (2FF), Auto-failover, APN & Band management |
| Wi-Fi | 802.11 b/g/n (Wi-Fi 4), Up to 100 clients, WPA2/WPA3, Hotspot/ Captive Portal |

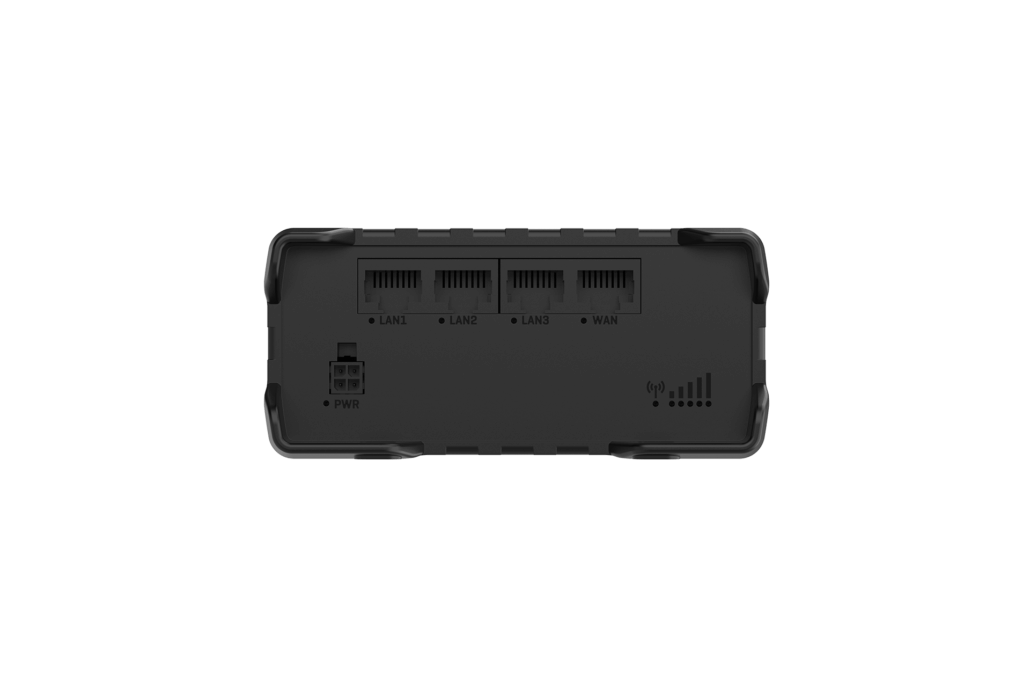

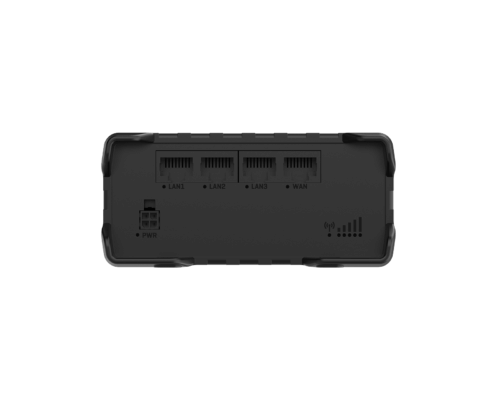

| Ethernet | 1 × WAN 10/100 Mbps, 3 × LAN 10/100 Mbps, Auto MDI/MDIX |
| Digital I/O | 1 × Input, 1 × Output |

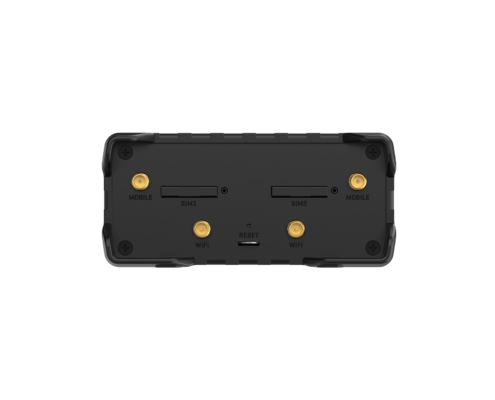

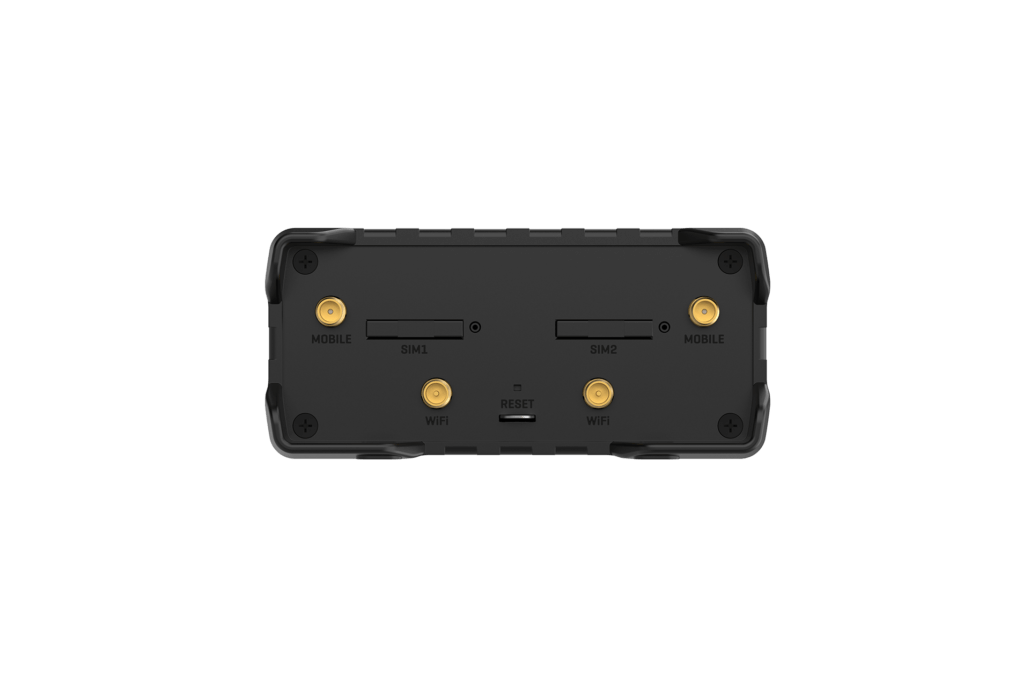

| Antennas | 2 × SMA LTE, 2 × RP-SMA Wi-Fi |
| CPU | MediaTek 580 MHz, MIPS 24KEc |
| Memory | 128 MB DDR2 |
| Storage | 16 MB SPI Flash |
| OS | RutOS (OpenWrt-based) |
| Routing & VPN | Static/Dynamic routing, OpenVPN, IPsec, PPTP, L2TP, GRE |
| Industrial Protocols | MQTT, Modbus TCP, DNP3 |
| Remote Mgmt | RMS support, Web UI, SSH, SNMP, FOTA, SMS commands |
| Power | 9–30 V DC, Reverse polarity protection, Passive PoE support |
| Power Consumption | <2 W idle, <7 W max |
| Operating Temp | -40 °C to +75 °C |
| Humidity | 10–90% non-condensing |
| Dimensions | 110 × 50 × 100 mm |
| Weight | ~297 g |
| Housing | Aluminium + Plastic, IP30 |
| Mounting | DIN rail, Wall mount, Flat surface |
| Compliance | CE, UKCA, IMDA, Anatel, RCM, E-mark, ECE, CB, RoHS, REACH |
