FEATURES

  • 4G LTE (Cat 4) connectivity (up to ~150 Mbps DL / ~50 Mbps UL), with fallback to 3G and 2G.

  • Dual SIM support with auto‑failover (switches on poor signal/data limit/fail conditions) and backup WAN scenarios.

  • WAN & LAN: 1x WAN + 3x LAN (10/100 Mbps), auto MDI/MDIX.

  • Built‑in Wi‑Fi (802.11b/g/n) supporting Access Point (AP) and Station (STA) modes.

  • Wi‑Fi security, SSID stealth, and client management features

  • ntegrated GNSS with GPS, GLONASS, BeiDou, Galileo (location services, time sync, NTRIP).

  • Supports industrial protocols: MQTT, BACnet, OPC UA, SNMP, JSON‑RPC, and many networking protocols (IPv4/IPv6, TCP/UDP, DHCP, etc.).

  • RMS support for remote fleet/device management.

  • Runs RutOS (OpenWRT‑based), with Web UI configuration, firmware updates (FOTA), scripting & SDK support.

  • Static and dynamic routing support including protocols like BGP, OSPF, RIP, etc.

  • Industrial DC power input (9–30 V) with passive PoE support over spare pairs.

  • Operating range: −40 °C to 75 °C, IP30 housing, rugged build for harsh environments.

  • DIN rail / wall / flat mounting options

  • Configurable network and failover policies.

  • USB storage with support for multiple file systems.

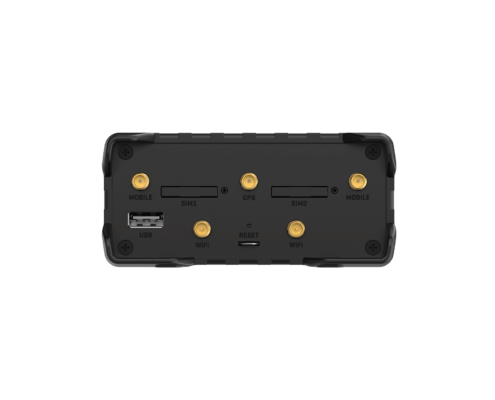

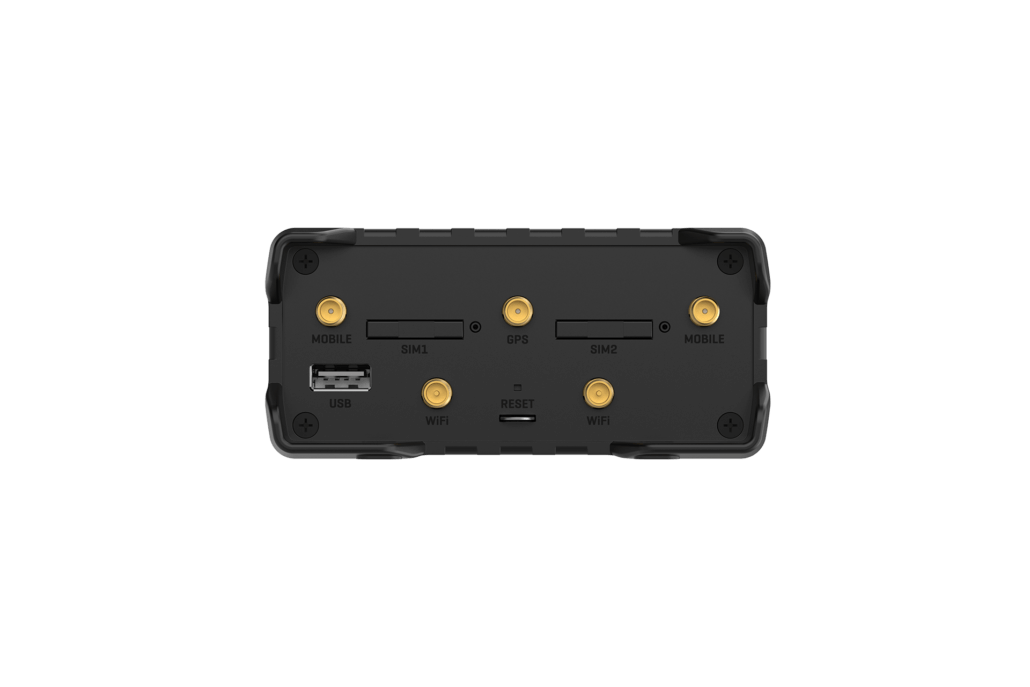

  • Status LEDs, GNSS antenna, LTE & Wi‑Fi antenna connectors.

 DOWNLOAD

Datasheet_RUT906_1.13

Specification Details

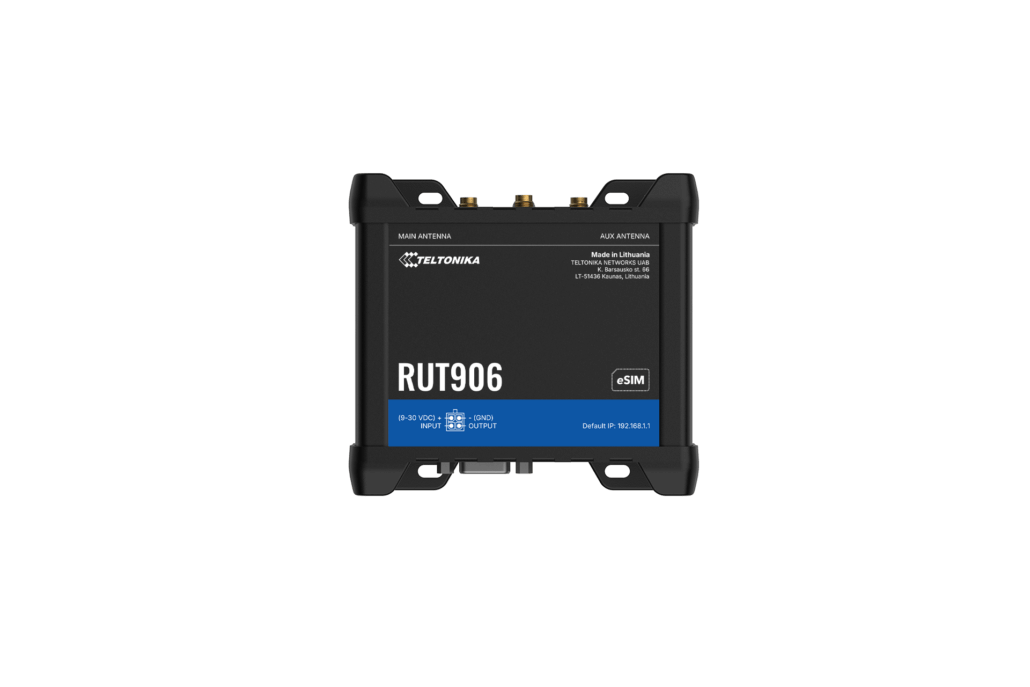

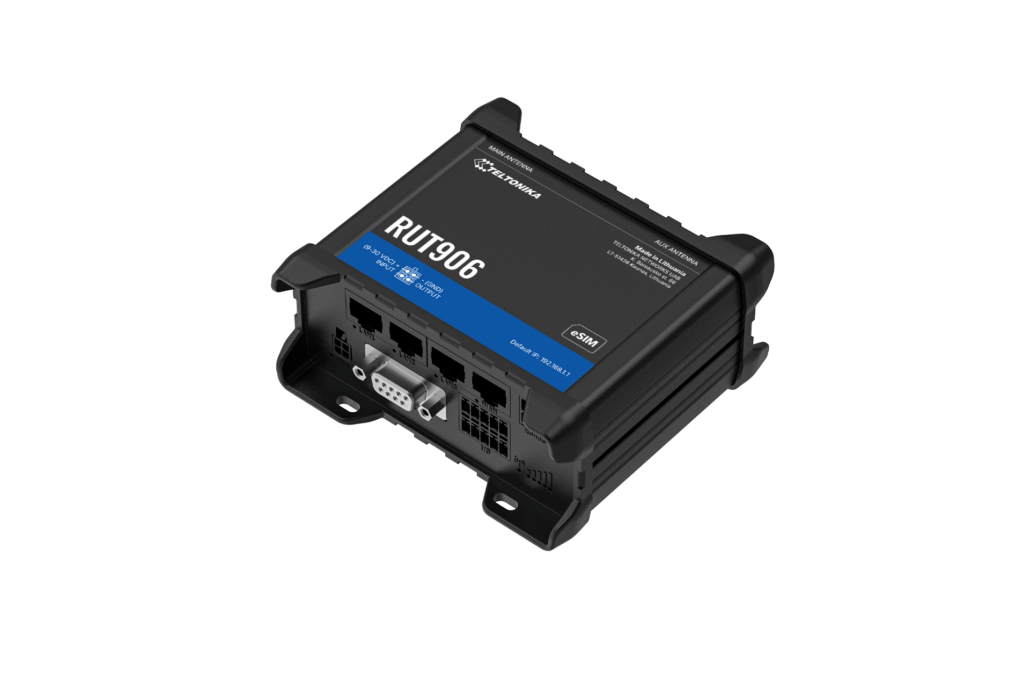

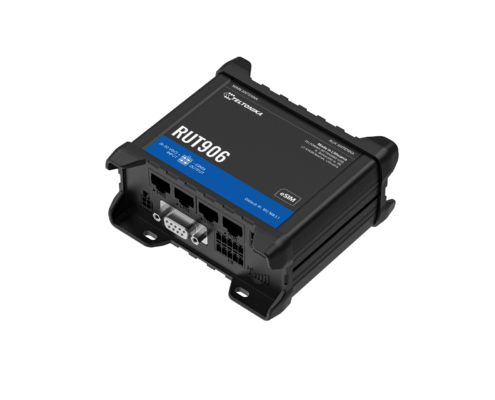

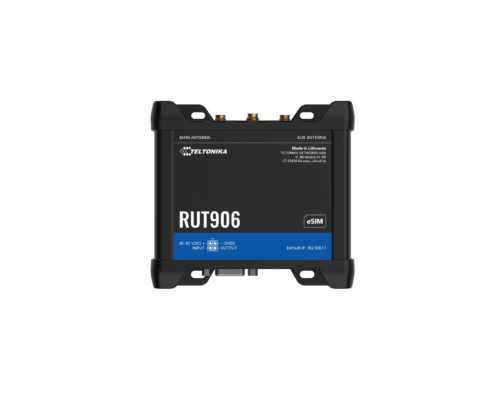

Model Teltonika RUT906 Industrial 4G LTE Router
Network Support 4G LTE Cat 4 (up to ~150 Mbps DL / ~50 Mbps UL), 3G (~42 Mbps), 2G (~236.8 kbps)
Dual SIM Yes – 2 × Mini SIM (2FF) with auto‑failover & backup WAN

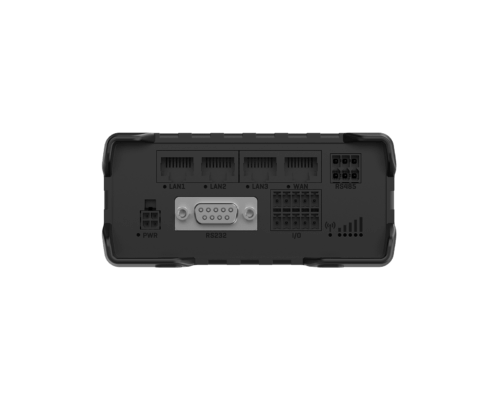

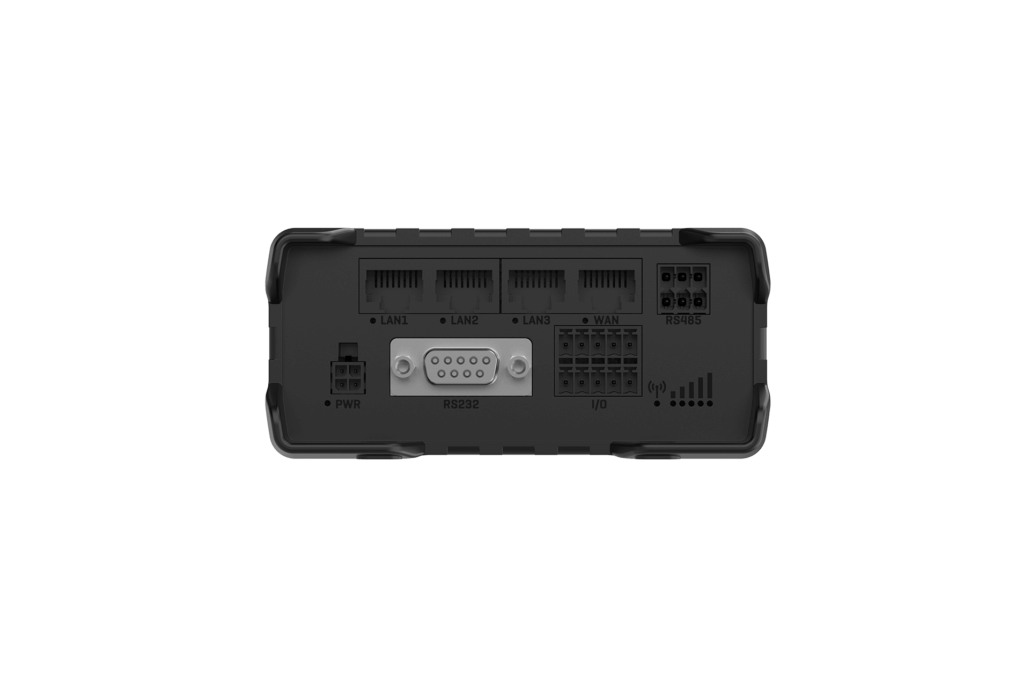

Ethernet Ports 4 × RJ45 10/100 Mbps (1 × WAN, 3 × LAN)
Wi‑Fi IEEE 802.11b/g/n (AP & STA)
Serial Interfaces 1 × RS232 (DB9), 1 × RS485 (6‑pin)
USB 1 × USB 2.0 host port
Antenna Connectors 2 × SMA for LTE, 2 × RP‑SMA for Wi‑Fi, 1 × SMA for GNSS
GNSS GPS, GLONASS, BeiDou, Galileo & QZSS support
I/Os 2 × industrial inputs & 2 × outputs + additional digital input/output on power connector
SIM / Status 2 × SIM slots, various status LEDs (connection / signal / ETH / power)
CPU & Memory Mediatek 580 MHz, 128 MB DDR2 RAM, 16 MB SPI flash
Operating System RutOS (OpenWrt‑based)
Network Protocols Static & dynamic routing, MQTT, BACnet, OPC UA, SNMP, IPv4/IPv6, VPN support (WireGuard, ZeroTier, etc.)
Power Input 4‑pin industrial DC 9–30 V with protection & Passive PoE support
Power Consumption
