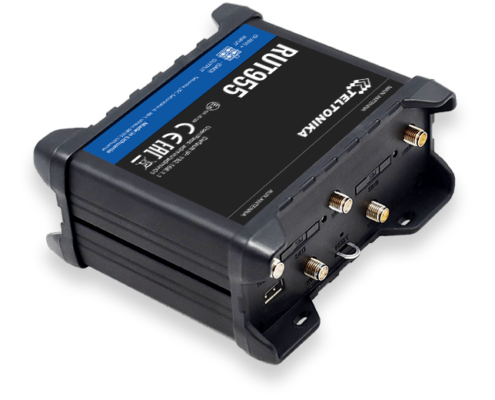

RUT955 Industrial Cellular Router
LTE RS232/RS485 Router
Product availability: Against PO
FEATURES
- Connectivity : 4G/LTE (Cat 4), 3G, 2G
- Dual Sim : For additional connection reliability
- GNSS : Global Navigation Satellite System for location services and time synchronization
- I/O : Multiple digital and analog inputs and outputs for equipment control and event notification
- Serial Ports : RS232/RS485 serial communication interfaces
- RMS : Compatible with Teltonika Remote Management System
DOWNLOAD
SPECIFICATIONS
| HARDWARE : | |
| Mobile | 4G/LTE (Cat 4), 3G, 2G |
| CPU | Atheros, MIPS 24Kc, 400 MHz |
| Memory | 16 MBytes Flash, 64 MBytes RAM |
| Powering option | 4pin power socket, 9-30 VDC |
| SIM | 1 x External SIM holder (2FF) |
| Antenna connectors | 2 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x SMA for GPS |
| Ethernet | 4 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN |
| WiFi | IEEE 802.11b/g/n, Access point (AP), Station (STA) |
| Inputs/Outputs | On 4pin socket: 1 x Digital input, 1 x Digital open collector output On 10pin socket: 1 x Isolated digital input, 1 x Digital dry input, 1 x Analog input, 1 x Isolated open collector output (requires external voltage), 1 x Relay output (non-latching) |
| Serial | 1 x RS232, 1 x RS485 |
| Other | 1 x USB host, 1 x MicroSD |
| Status LEDs | 1 x Bi-Color connection type, 5 x Signal strength, 4 x Ethernet, 1 x Power |
| Operating temperature | -40 °C to 75 °C |
| Housing | Aluminium housing with DIN rail mounting option, plastic panels with flat mounting option |
| Dimensions (W x H x D) | 109 x 50 x 103 mm |
| Weight | 295 g |
| SOFTWARE : | |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Mobile features | Band lock, SIM switch, Operator black/white list, Data/SMS limits |
| Network | Failover (Network backup), VLAN, QoS, Load Balancing |
| Monitoring and management | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS |
| Cloud solutions | RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| NTP | NTP Server, NTP Client, Sync with: External NTP server, GNSS, Mobile operator |
| GNSS | NMEA forwarding, AVL, Geofencing |
| Modbus | TCP slave, TCP master, RTU master, RTU gateway, Modbus over MQTT |
| Serial | Console, Over IP, Modem, NTRIP, Modbus |
