Product Availability : Against PO
Country Of Origin: Taiwan

Categories: , , ,

FEATURES

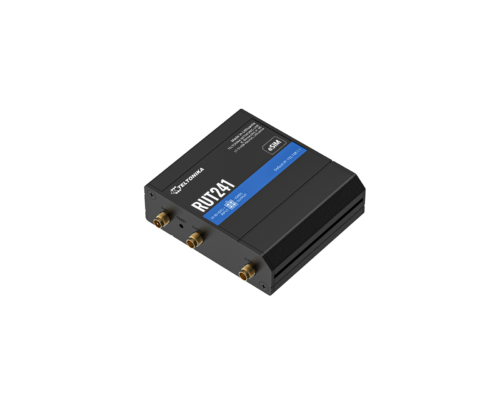

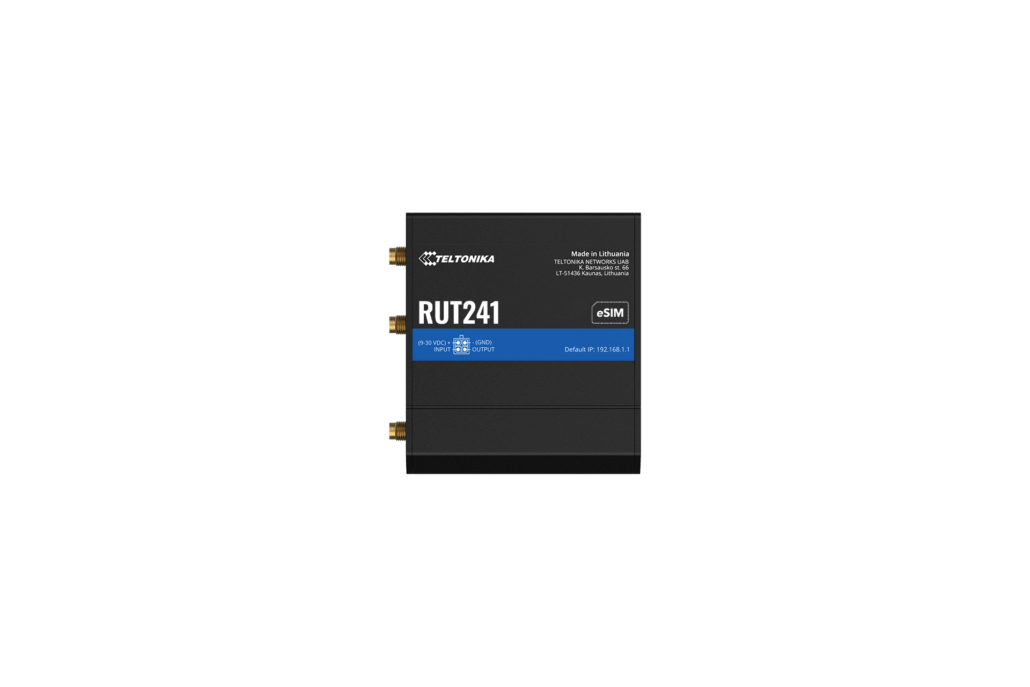

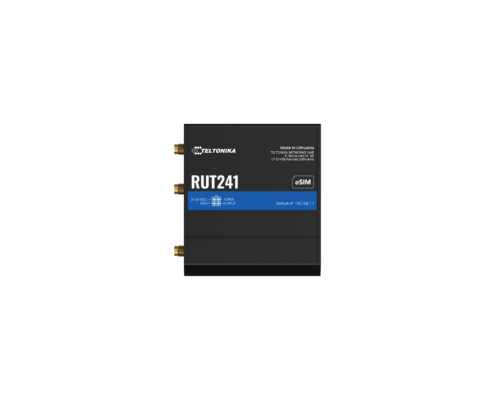

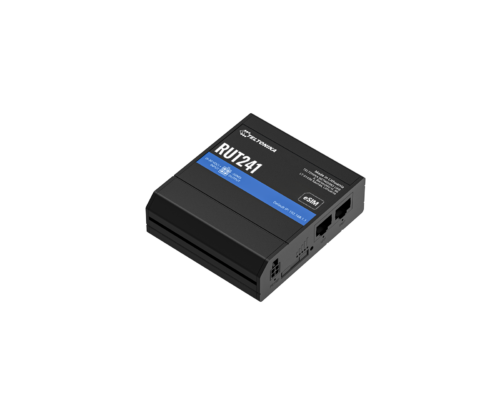

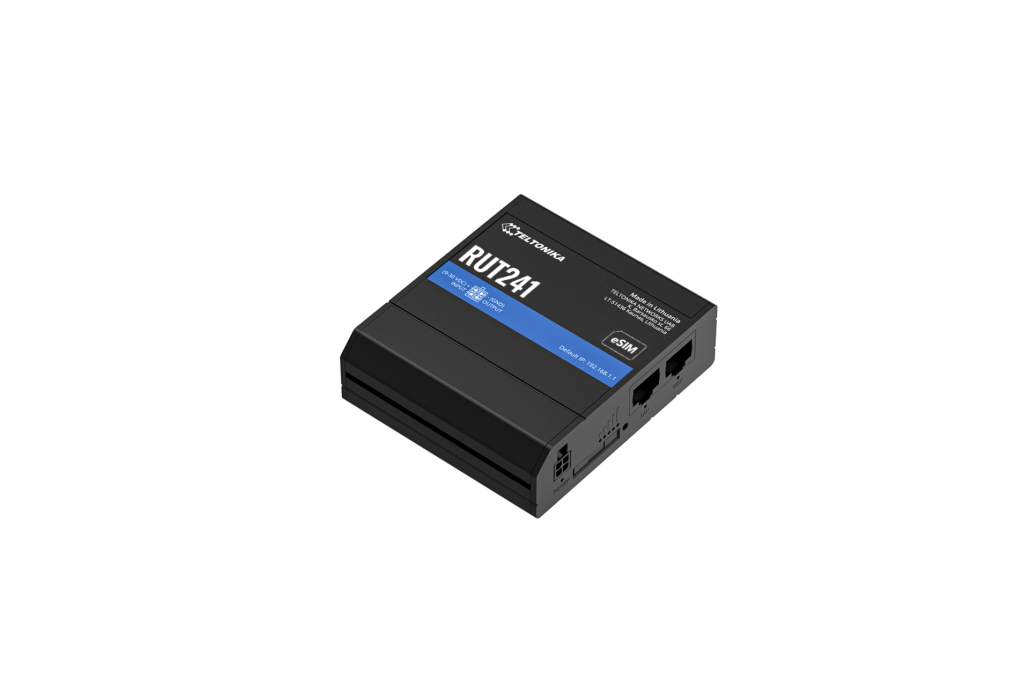

  • Industrial 4G LTE router for IoT & M2M applications.

  • Wi-Fi hotspot + Ethernet connectivity for devices and networks.

  • Auto WAN failover ensures continuous internet connectivity.

  • Digital I/O ports allow automation and device control.

  • RMS remote monitoring for device management and configuration.

 DOWNLOAD

Datasheet_RUT241_1.60

Category Specification
Cellular Connectivity 4G LTE Cat-4 (up to 150 Mbps DL / 50 Mbps UL), fallback to 3G & 2G
SIM 1 × Mini-SIM (2FF) + optional eSIM support with up to 7 profiles
Wi-Fi IEEE 802.11 b/g/n (Wi-Fi 4), Access Point & Station mode, up to 50 clients

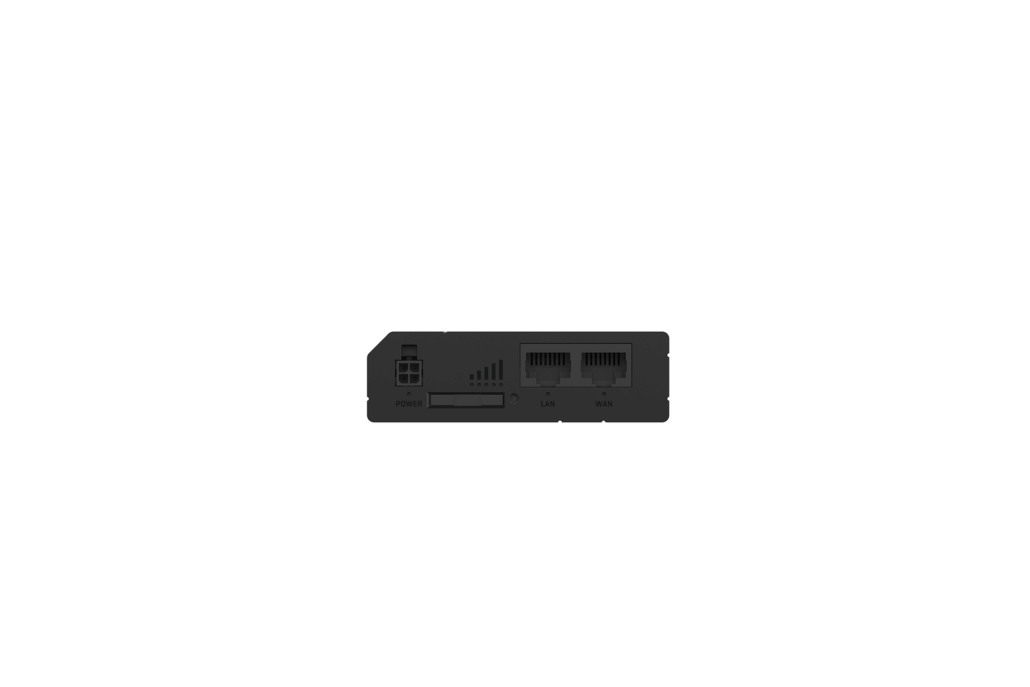

Ethernet Ports 2 × RJ45 (10/100 Mbps) – 1 × WAN, 1 × LAN
Routing Protocols Static routing, BGP, OSPF, RIP, policy-based routing
Network Protocols IPv4, IPv6, TCP, UDP, DHCP, DNS, MQTT, SNMP, HTTP/HTTPS, SSH, FTP, etc.
Digital I/O 1 × Digital Input, 1 × Digital Output
USB USB supported for storage / device integration
Operating System RutOS (Linux-based OS) with advanced networking features
Remote Management Compatible with Teltonika RMS (Remote Management System)
CPU MediaTek MIPS 24Kc 580 MHz
RAM / Flash 128 MB RAM, 16 MB Flash
Power Input 9–30 V DC industrial power input, passive PoE supported
Power Consumption < 6.5 W max

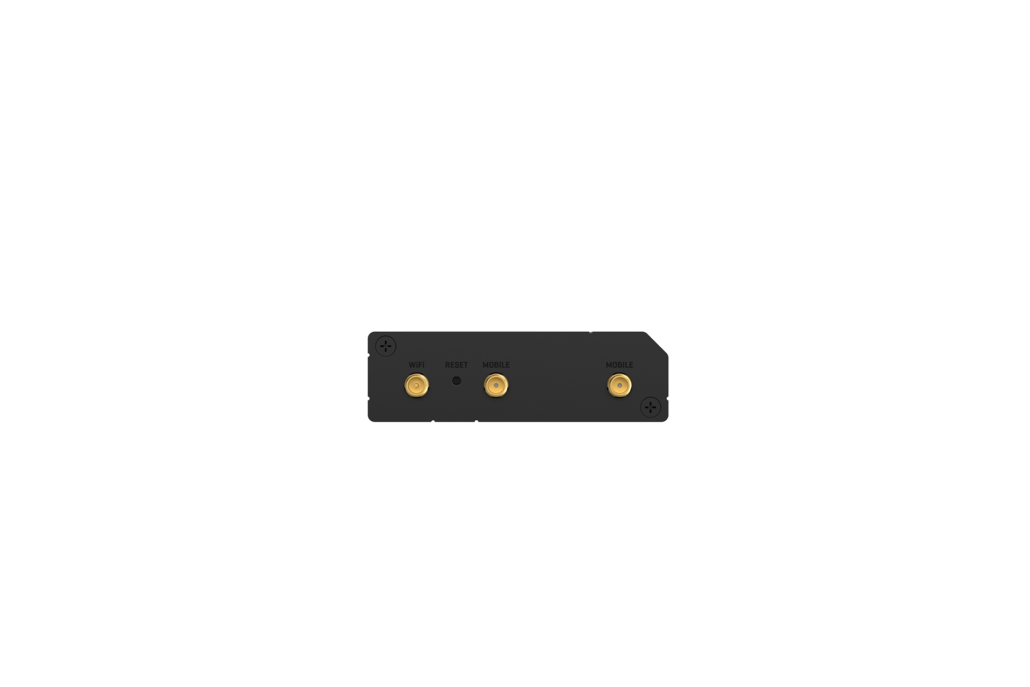

Antenna Connectors 2 × SMA (LTE), 1 × RP-SMA (Wi-Fi)
Operating Temperature −40 °C to +75 °C
Dimensions 83 × 25 × 74 mm
Weight ~125 g
Housing Aluminium industrial casing, IP30
