Product Availability : Against PO
Country Of Origin: Taiwan

Categories: , , ,

FEATURES

    • 5G Sub‑6 GHz support — delivers high‑speed mobile data (up to multi‑Gbps class download/upload speeds).

    • Compatible with both 5G SA (standalone) and 5G NSA (non‑standalone) architectures.

    • Fallback to 4G LTE (Cat 12) and 3G networks where 5G isn’t available.

    • Dual SIM slots with automatic auto‑failover and SIM idle protection features.

    • Dual‑band Wi‑Fi 5 (802.11b/g/n/ac) with up to ~867 Mbps wireless throughput.

    • Routing support: Static and dynamic routing (BGP, OSPF, RIP, etc.).

    • Runs RutOS (OpenWrt‑based Linux OS) — flexible with advanced configuration options.

    • Web‑based UI and remote update support.

    • Extensive network protocol support including IPv4/IPv6, MQTT, SNMP, TR‑069, JSON‑RPC, etc.

 DOWNLOAD

rutm51-datasheet-v112

Category Specification
Category Specification
Cellular Connectivity 5G Sub‑6GHz: SA up to 2 Gbps DL / 1 Gbps UL; NSA up to 2.6 Gbps DL / 650 Mbps UL
4G LTE: Cat 12 (600 Mbps DL), Cat 13 (150 Mbps UL)
3G: 42.2 Mbps DL / 11 Mbps UL
3GPP Release Release 15
SIM 2 × Mini SIM slots (2FF), auto‑switch & SIM idle protection
Wi‑Fi IEEE 802.11b/g/n/ac (Wi‑Fi 5), Dual‑Band (2.4 & 5 GHz), up to ~867 Mbps
MU‑MIMO, 802.11r fast transition, AP/STA modes
Security WPA2/WPA3, enterprise modes, MAC filtering, SSID stealth

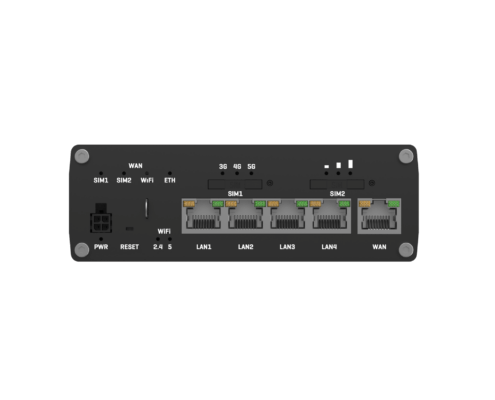

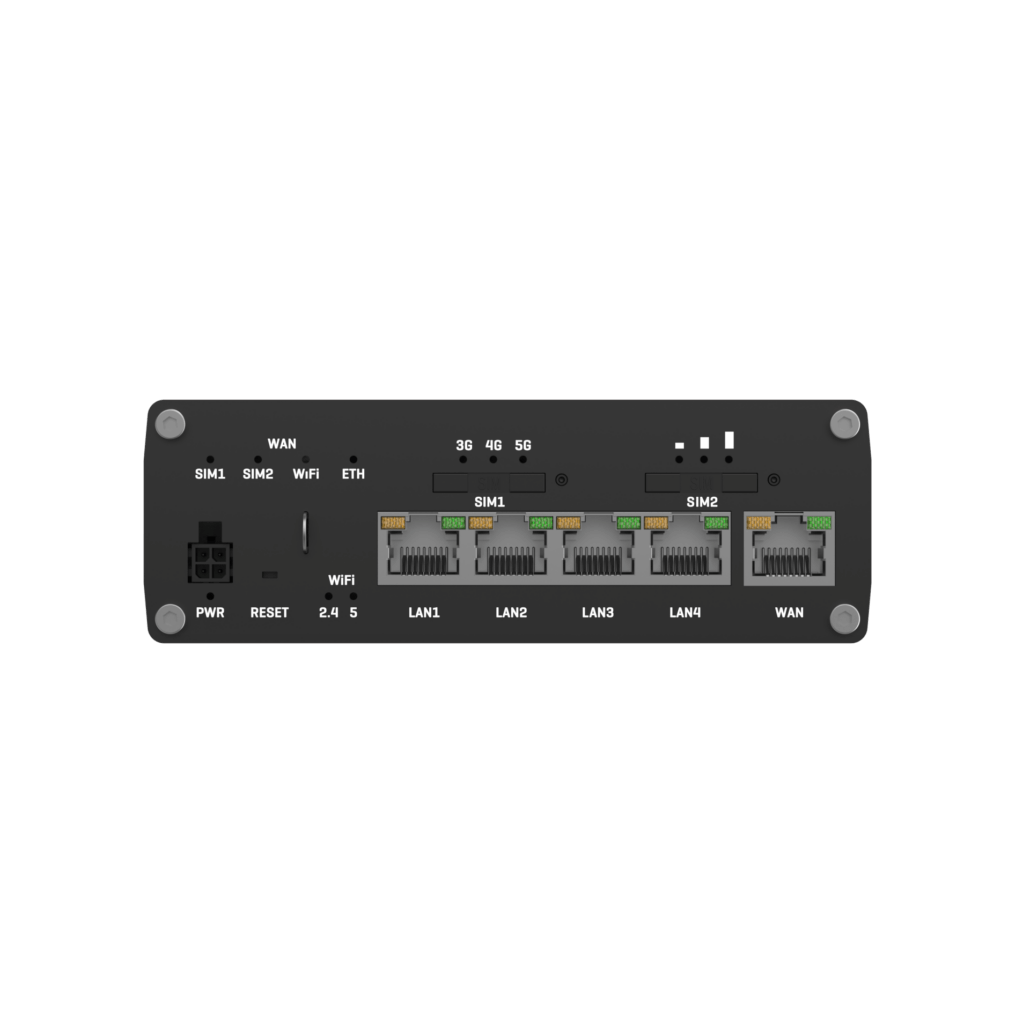

Ethernet 1 × WAN + 4 × LAN, 10/100/1000 Mbps, auto MDI/MDIX
USB 1 × USB 2.0 port
I/O Ports 1 × Digital Input, 1 × Digital Output
Routing & Protocols Static & dynamic routing (BGP, OSPF, RIP), IPv4/IPv6, QoS, VLAN, VPN
Management Web UI, Teltonika RMS remote management
Operating System RutOS (OpenWrt‑based)
Power 9–50 V DC, reverse‑polarity & surge protection; Passive PoE support (LAN1)
Power Consumption Idle <5 W; Max <18 W

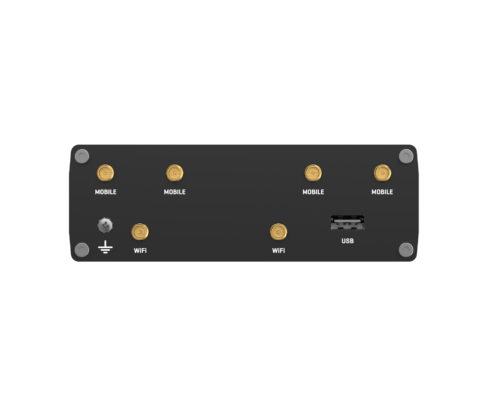

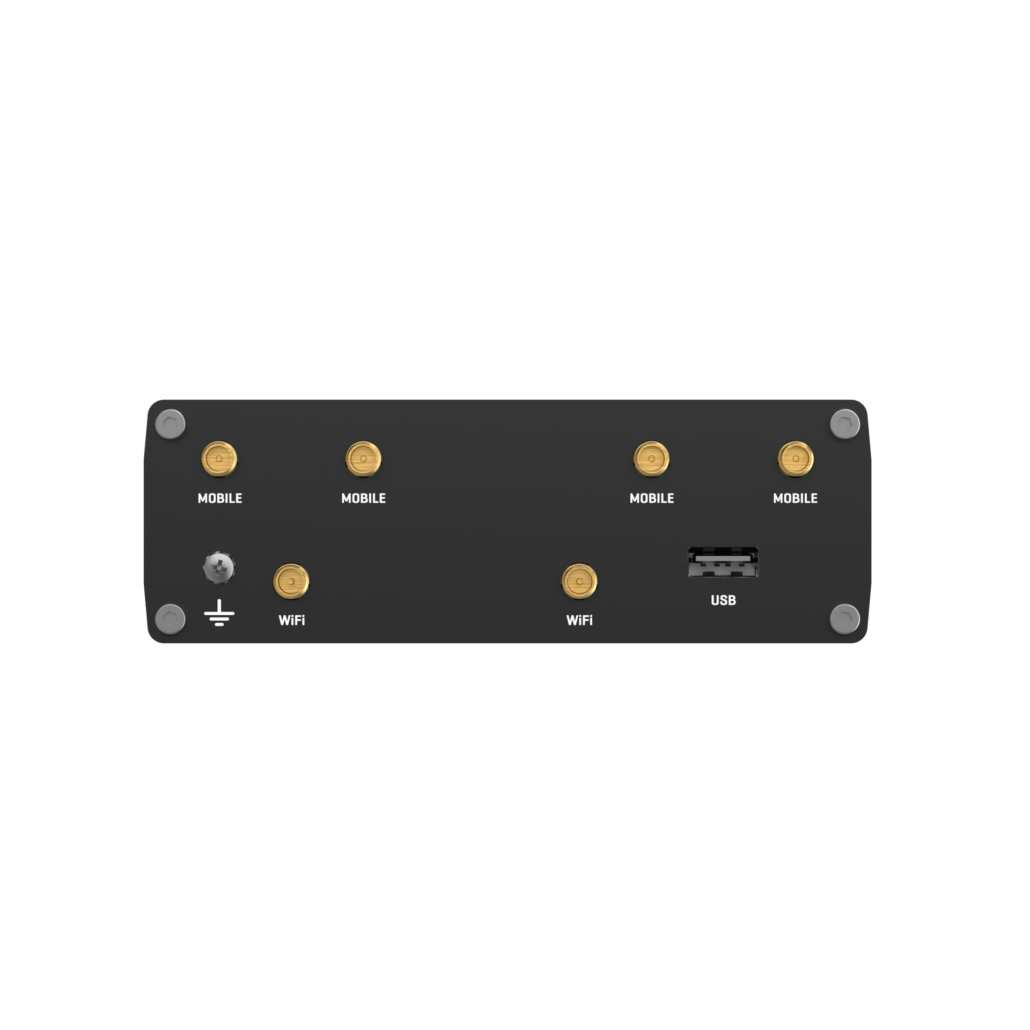

Antennas 4 × SMA (cellular), 2 × RP‑SMA (Wi‑Fi)

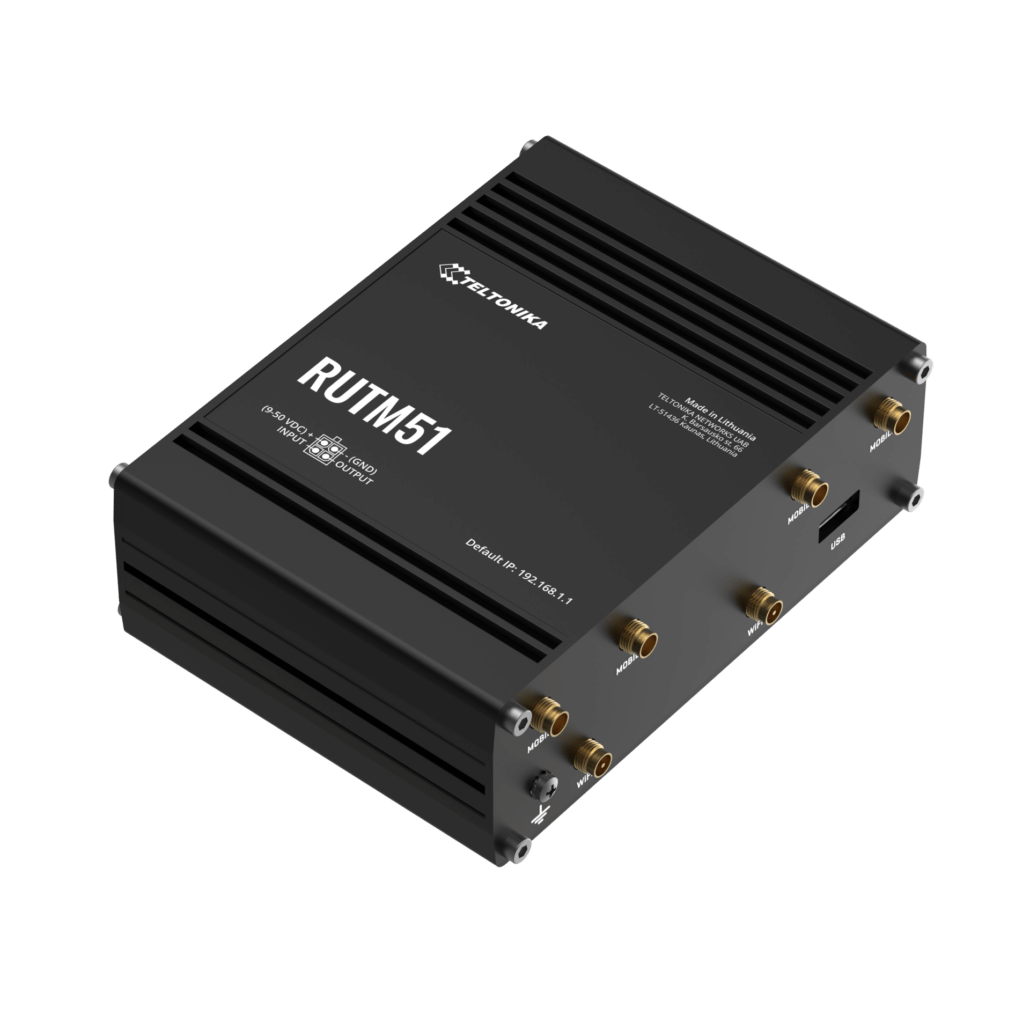

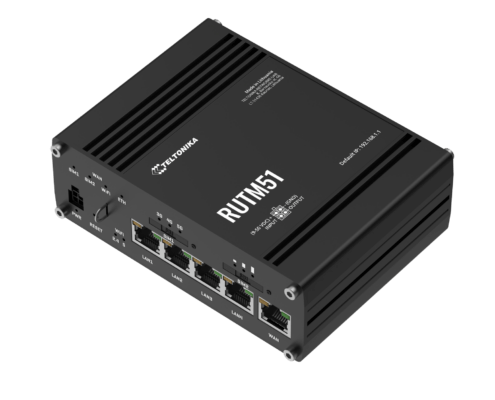

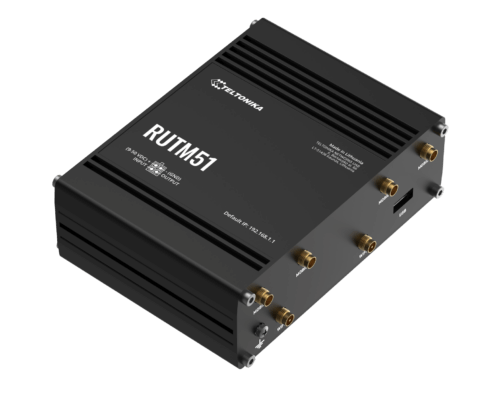

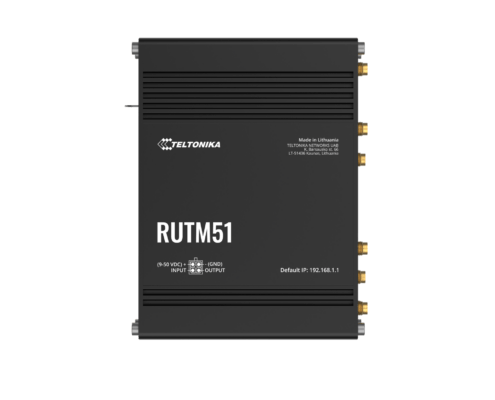

Physical Dimensions: 132 × 44.2 × 95 mm
Weight: 525 g
Housing: Aluminium, IP30
Mounting DIN‑rail, wall mount, flat surface (kits required)
Operating Environment –40 °C to 75 °C; 10–90 % humidity non‑condensing
Certifications CE, UKCA, EAC, RCM, CB, WEEE, EMC standards
