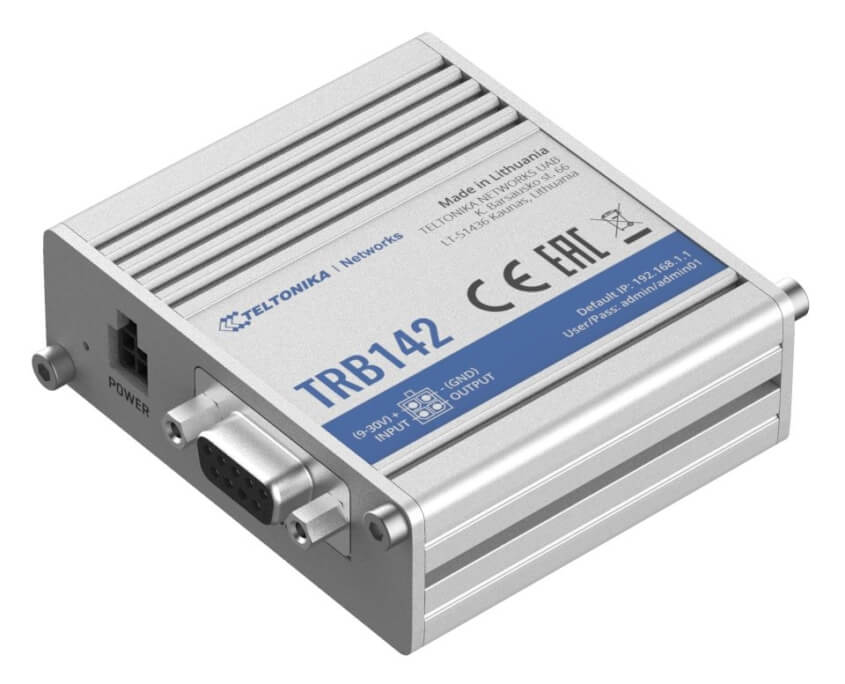

TRB142 INDUSTRIAL RUGGED LTE RS232 GATEWAY
4G/LTE (Cat 1), 3G, 2G
Product availability : Against PO
FEATURES
- Connectivity : 4G/LTE (Cat 1), 3G, 2G
- DURABILITY : Rugged aluminium housing
- SERIAL PORTS : Equipped with RS232 for serial communication
- 9-30V : Wide range of supported power supply voltages
- COMPACTNESS : Small size, easy installation
- RMS : Compatible with Teltonika Remote Management System
DOWNLOAD
SPECIFICATIONS
| HARDWARE | |
| Mobile | 4G/LTE (Cat 1), 3G, 2G |
| CPU | Qualcomm, ARM Cortex A7, 1.2 GHz |
| Memory | 512 MBytes Flash (70 MBytes for userspace), 128 MBytes RAM (50 MBytes for userspace) |
| Powering option | 4 pin power socket, 9-30 VDC |
| SIM | 1 x Internal SIM holder (2FF) |
| Antenna connectors | 1 x SMA for mobile |
| Intputs/Outputs | On 4 pin socket: 2 x Digital input/Digital open collector output (configurable) |
| Serial | 1 x RS232 |
| Other | 1 x Micro USB slave |
| Status LEDs | 3 x Connection type, 5 x Signal strength, 1 x Power |
| Operating temperature | -40° C to 75° C |
| Housing | Aluminium housing with DIN rail mounting option |
| Dimensions (W x H x D) | 75 x 25 x 65 mm |
| Weight | 135 g |
| SOFTWARE | |
| Operating system | RutOS |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet |
| Monitoring and Management | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS |
| Connection monitoring | Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Cloud solutions | RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| Modbus | TCP slave, TCP master, RTU master, RTU gateway, Modbus over MQTT |
| Serial | Console, Over IP, Modem, NTRIP, Modbus |
