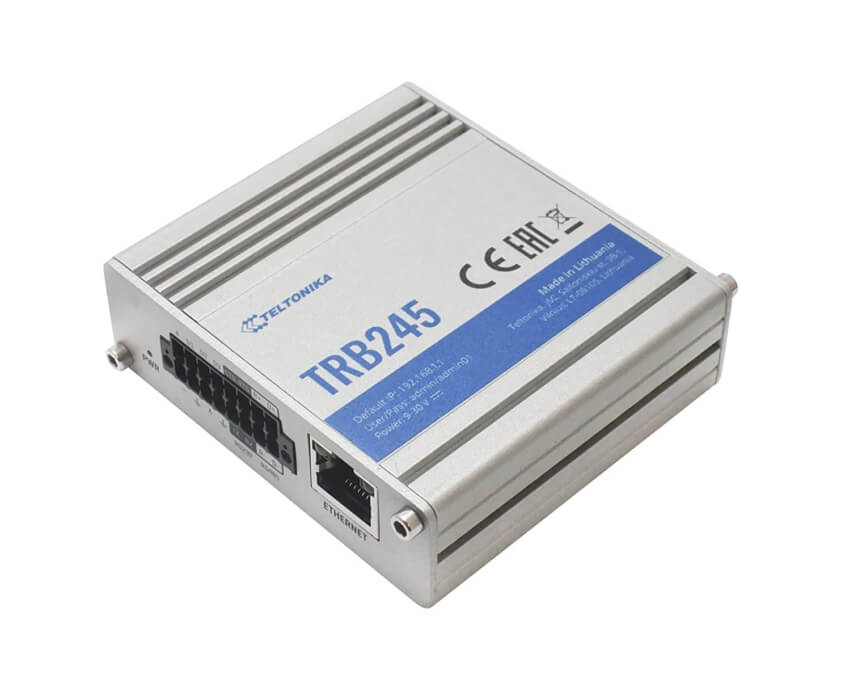

TRB245 INDUSTRIAL M2M LTE GATEWAY
4G/LTE (Cat 4), 3G, 2G
Product availability : Against PO
FEATURES
- Connectivity : 4G/LTE (Cat 4), 3G, 2G
- 9-30V : Wide range of power supply voltages
- SERIAL PORTS : RS232/RS485 serial communication interfaces
- DUAL SIM : With auto failover, backup WAN and other switching scenarios
- I/O : Multiple Inputs and Outputs for remote monitoring and contro
- GNSS : Global Navigation Satellite System for location services with geofencing functionality
DOWNLOAD
SPECIFICATIONS
| HARDWARE | |
| Mobile | 4G/LTE (Cat 4), 3G, 2G |
| CPU | Qualcomm, MIPS 24Kc, 650 MHz |
| Memory | 16 MBytes Flash, 64 MBytes RAM |
| Powering option | 16 pin terminal, 9-30 VDC |
| SIM | 2 x Internal SIM holders (2FF) |
| Antenna connectors | 1 x SMA for mobile, 1 x SMA for GPS |
| Ethernet | 1 x 10/100 Ethernet port |
| GNSS | GPS, GLONASS, BeiDou, Galileo, QZSS |
| Inputs/Outputs | On 16 pin socket: 3 x Digital input/Digital open collector output (configurable), 1 x Analog input |
| Serial | 1 x RS232, 1 x RS485 |
| Status LEDs | 3 x Connection type, 3 x Signal strength, 2 x Ethernet, 1 x Power |
| Operating temperature | -40 °C to 75 °C |
| Housing | Aluminium housing with DIN rail mounting option |
| Dimensions (W x H x D) | 83 x 25 x 74 mm |
| Weight | 165 g |
| SOFTWARE | |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Mobile features | Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet |
| Monitoring and Management | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS |
| Connection monitoring | Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Cloud solutions | RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| NTP | NTP Server, NTP Client, Sync with: External NTP server, GNSS, Mobile operator |
| GNSS | NMEA forwarding, AVL, Geofencing |
| Modbus | TCP slave, TCP master, RTU master, RTU gateway, Modbus over MQTT |
| Serial | Console, Over IP, Modem, NTRIP, Modbus |
| Administration | Multi user, Configuration profiles, Diagnostics, logs, Configuration backup |
