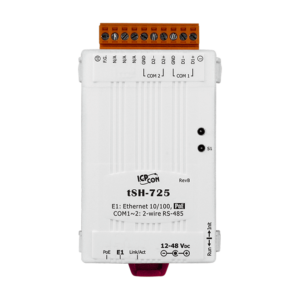

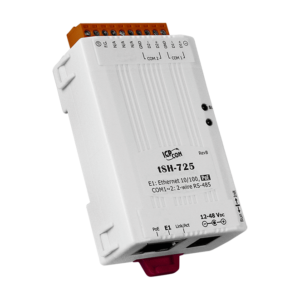

TSH-725
Tiny (2x RS-485) Serial Port Converter with PoE
Product availability : Against PO
FEATURES
- Supports Baud Rate conversion application
- Supports Modbus RTU/ASCII protocol conversion
- Supports two masters sharing one slave port for tSH-73x Series only
- Raw data mode for most query-response protocols
- Built-in web server for easy configuration (HTTP)
- Redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC jack
- Allows automatic RS-485 direction control
- Tiny form-factor and low power consumption
- Read-cache ensures faster response
DOWNLOAD
SPECIFICATIONS
| CPU Module | |
|---|---|
| CPU | 32-bit ARM |
| COM Ports | |
|---|---|
| Ports | 2 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Bias Resistor | Yes, 1 KΩ |
| Parity | None, Odd, Even, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| Node Address | RS-485 254 Nodes(max.) |
| Ethernet | |
|---|---|
| Ports | 10/100 Base-TX, 8-pin RJ-45 x 1 (Auto-negotiating, Auto-MDI/MDIX, LED indicator) PoE (IEEE 802.3af, Class 1) |
| Power | |
|---|---|
| Consumption | 0.07 A @ 24 VDC |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 52 mm x 95 mm x 27 mm (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environmental | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
