Product Availability : Against PO
Country Of Origin: Taiwan
FEATURES

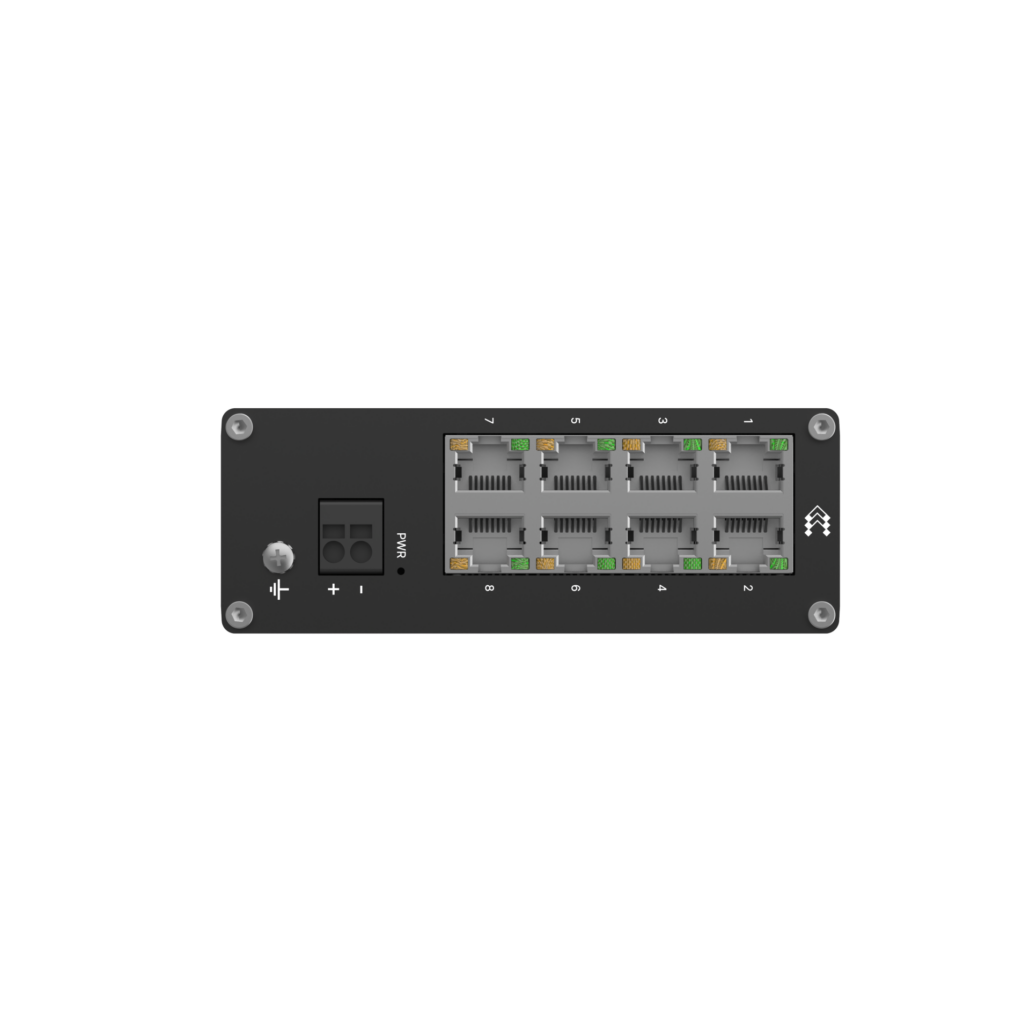

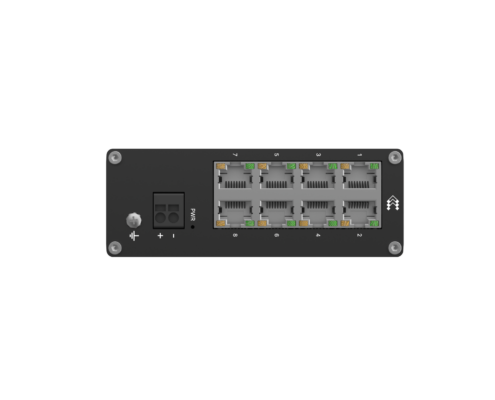

- 8 x 10/100 Mbps Ethernet Ports
- Unmanaged switch (configuration – plug & play)

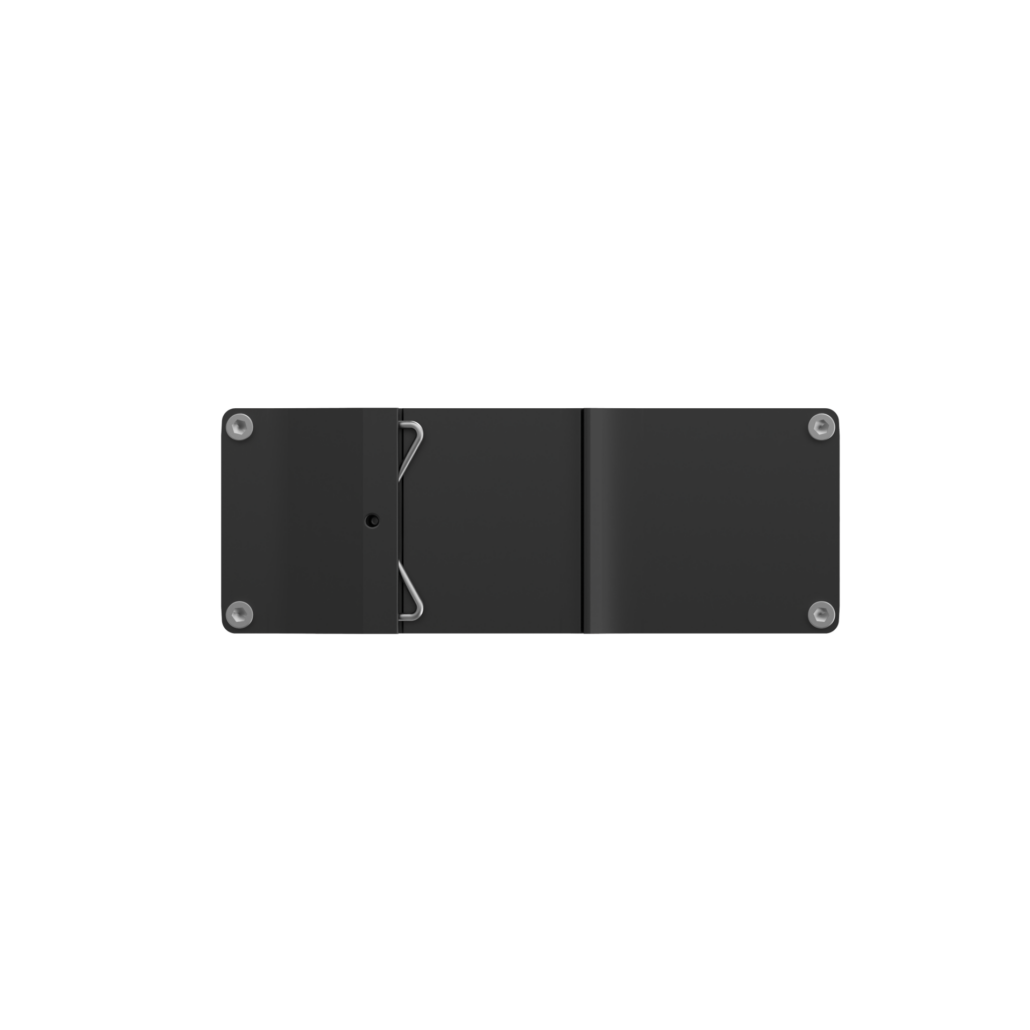

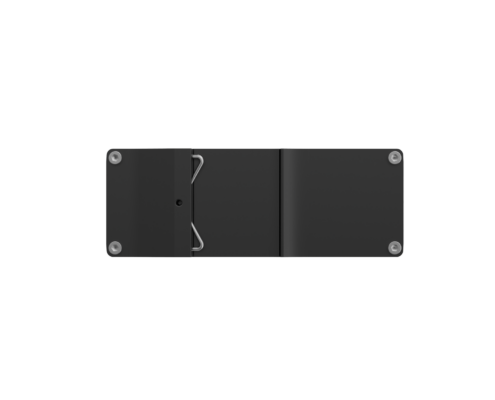

- DIN Rail mounting support
- Rugged aluminium housing
- Wide operating temperature: -40°C +75°C
- Low power consumption
- Compact size – industrial control panels
DOWNLOAD
TSW030-Datasheet
Specifications
| Feature | Details |
|---|---|

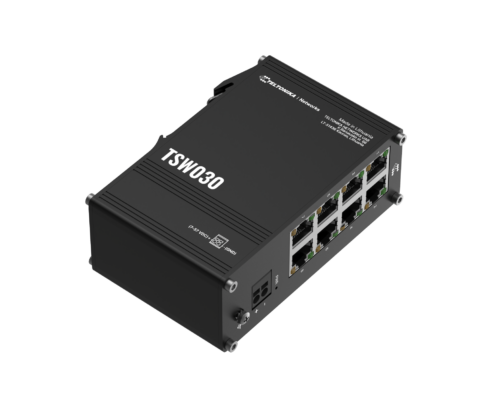

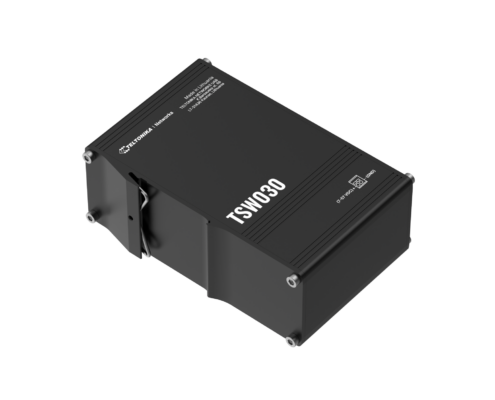

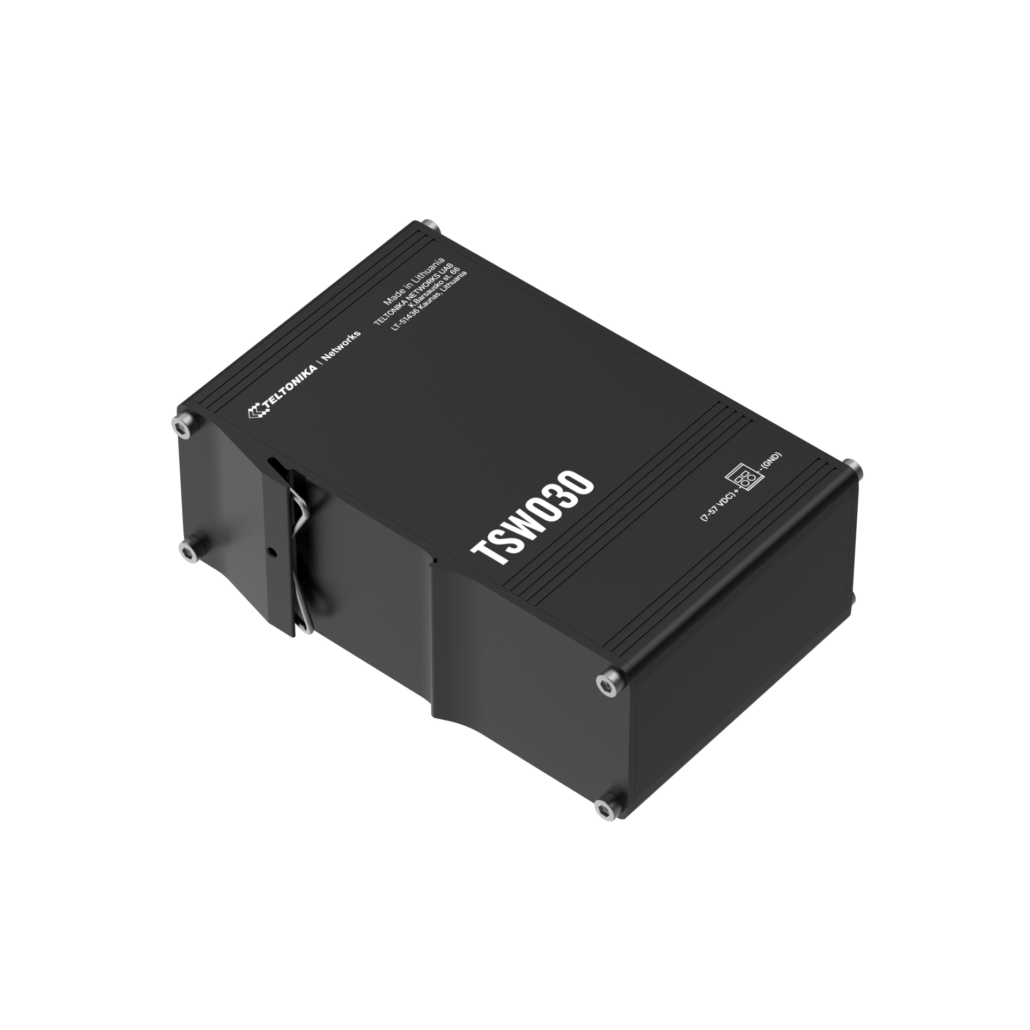

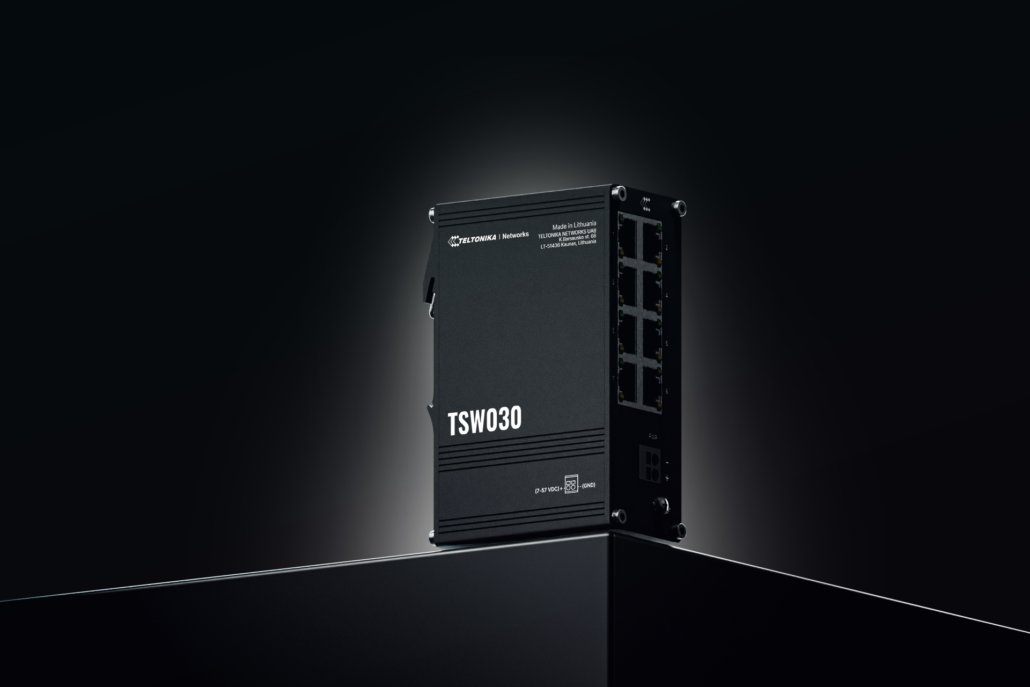

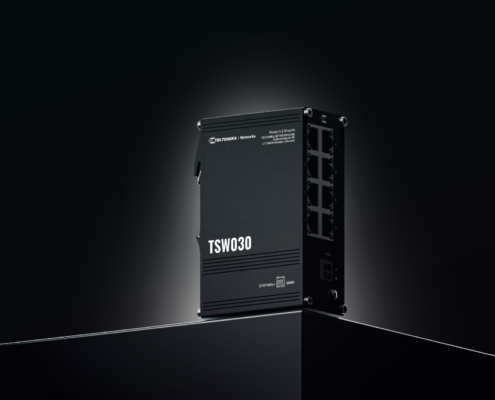

| Model | TSW030 |
| Ports | 8 × RJ45 10/100 Mbps |
| Switching Capacity | 1.6 Gbps |
| Power Input | 7 – 57 VDC |
| Mounting | DIN Rail / Surface |
| Operating Temp | -40°C to +75°C |
| Housing | Aluminum |
| Dimensions | ~113 x 28 x 50 mm |
