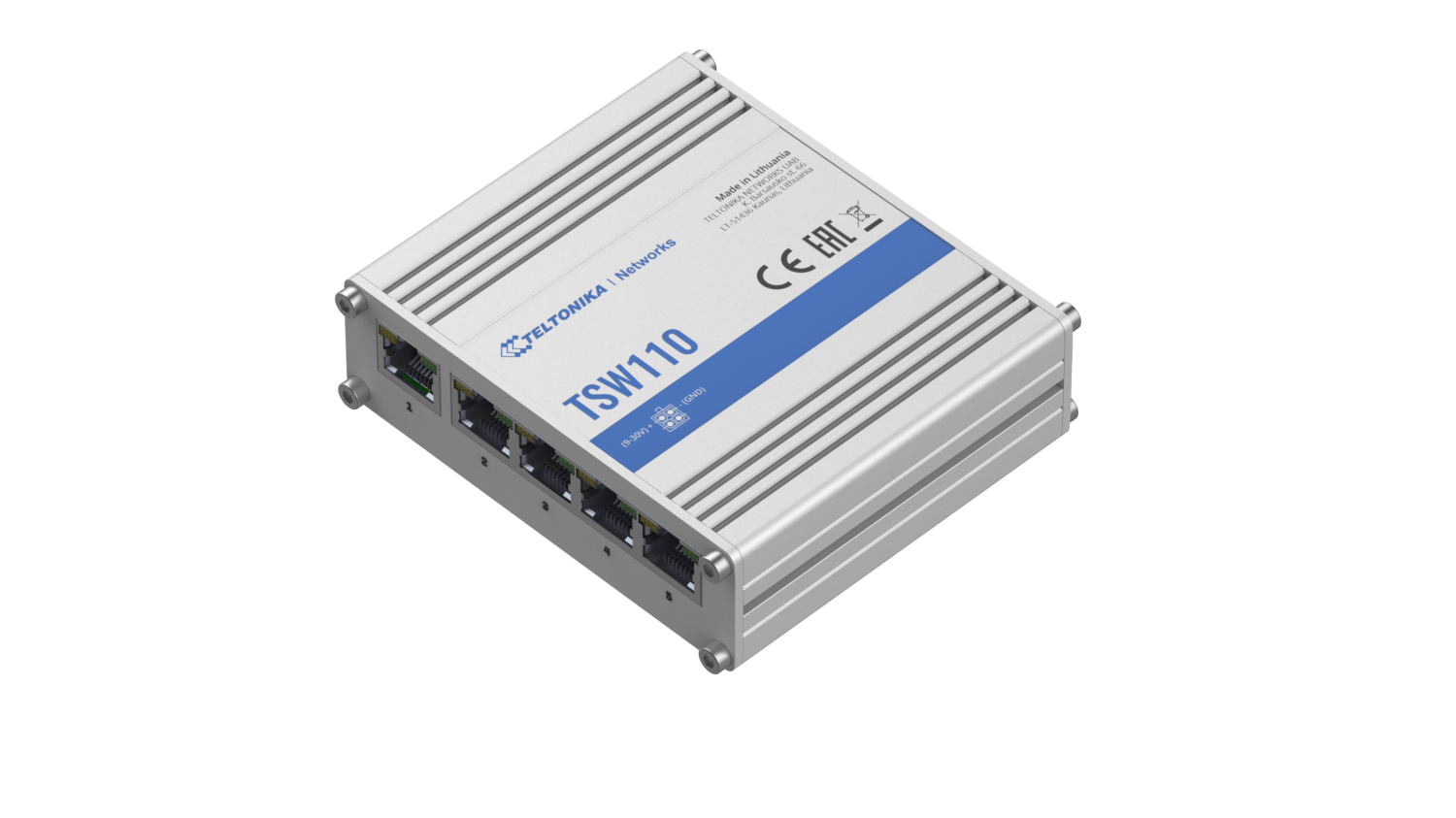

TSW110
L2 UNMANAGED SWITCH
Product availability : In Stock
FEATURES
- PLUG-N-PLAY: No additional configuration needed
- DURABILITY: Rugged aluminium housing
- MOUNTING: DIN rail and surface mounting options
- STATUS LEDS: 1 x Power, 10 x Ethernet
- 9-30 V: Wide range of supported power supply voltages
- GIGABIT ETH: 5 x Gigabit Ethernet with speeds up to 1000 Mbps
DOWNLOAD
SPECIFICATIONS
| HARDWARE | |
| Ethernet | 5 x LAN ports 10/100/1000 Mbps |
| Power supply | 9 – 30 V, 4 pin DC connector |
| Power consumption | idle: < 0.4 W, max: < 1.8 W |
| PoE input (passive) | Passive PoE over 4,5 (power) and 7,8 (ground) pins. Possibility to power up through first LAN port, not compatible with IEEE802.3af and 802.3at standards |
| Connectors | 1 x 4 pin DC, 5 x Ethernet |
| Status LEDs | 1 x Power, 10 x Ethernet |
| Ingress protection rating | IP30 |
| Operating temperature | -40 °C to 75 °C |
| Housing | Aluminium housing with wall or DIN rail mounting option and grounding capability |
| Dimensions | 100 x 30 x 85 mm |
| Weight | 227 g |
| Installation | Desktop, wall or DIN Rail mountable (additional kit needed) |
| PERFORMANCE SPECIFICATIONS | |
| Bandwidth | 10 Gbps |
| Packet buffer | 128 KB |
| MAC address table size | 2K entries |
| Auto MDI/MDI-X Cable Detection | Yes |
