Product Availability : Against PO
Country Of Origin: Taiwan
FEATURES
-

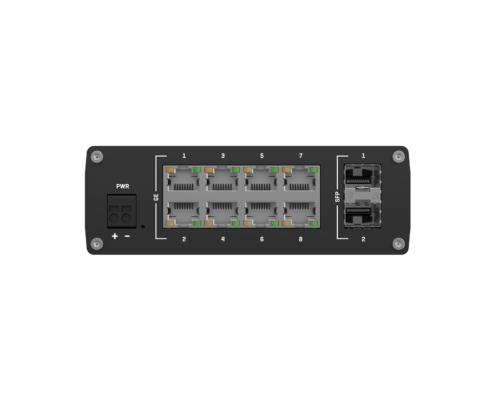

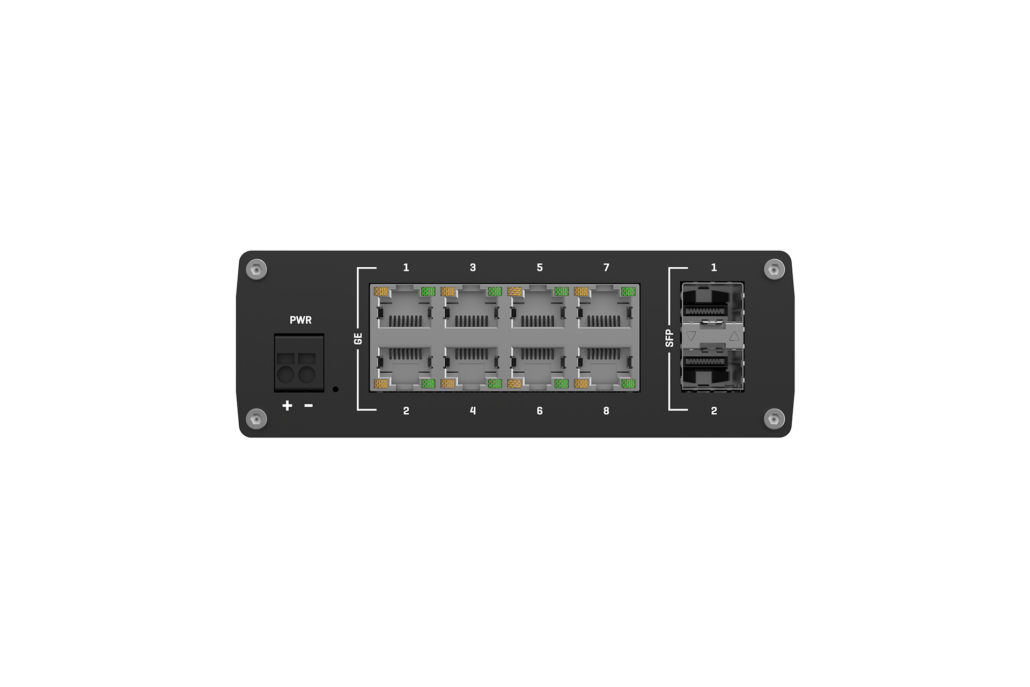

8 × Gigabit Ethernet Ports (10/100/1000 Mbps)
-
2 × SFP Ports for fiber optic communication
-
Unmanaged Plug-and-Play Switch (no configuration required)
-
Wide Power Input: 7 – 57 V DC
-
Industrial Aluminum Housing
-

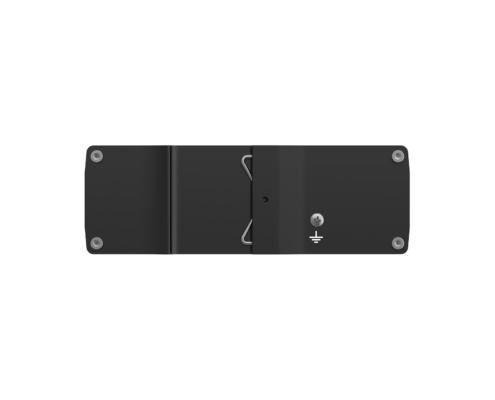

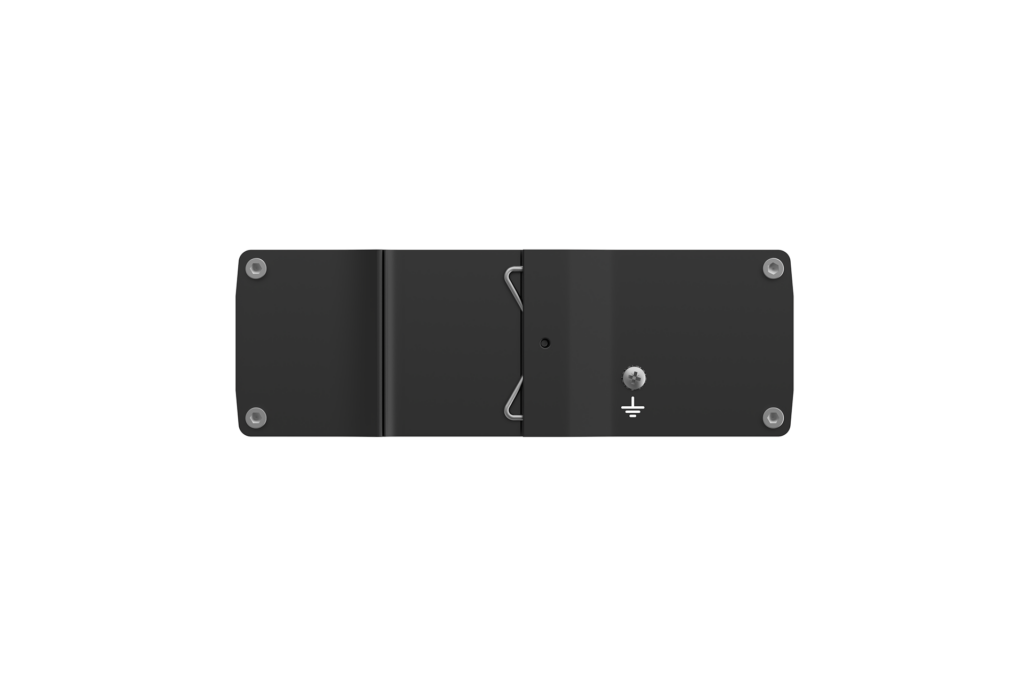

DIN Rail Mounting for industrial cabinets
-
Operating Temperature: -40°C to +75°C
-
Low Power Consumption
DOWNLOAD
tsw210-datasheet-v11
Specifications
| Specification | Details |
|---|---|
| Gigabit RJ45 Ports | 8 × 10/100/1000 Mbps |
| SFP Ports (Fiber) | 2 × SFP ports |
| Total Ports | 10 |
| Switching Capacity | 20 Gbps |
| MAC Address Table | 2K entries |
| Frame Buffer | 128 KB |
| Power Input | 7 – 57 V DC |
| Mounting | DIN Rail / Surface Mount |
| Operating Temperature | -40°C to +75°C |
| Housing | Industrial Aluminum Case |
| Installation | Plug & Play (Unmanaged Switch) |
