FEATURES
- AMD Ryzen™ AI Max 300 Series (Strix Halo)
- Supports 128GB Onboard LPDDR5X-8000 memory
- 2 x USB4, 1 x USB 3.2 Gen2 Type C, 2 x USB 3.2 Gen2, 2 x USB 2.0
- 1 x M.2 Key E (WiFi7 Module)+2 x M.2 Key M
- 1 x Realtek 2.5 Gigabit LAN, 1 x Marvell 10 Gigabit LAN
- Supports Quad display, 2 x HDMI 2.1, 3 x DP 2.1 (2 from USB4, 1 from Type-C)
- 1 x Mic-in, 1 x Line-out
- TPM 2.0 onboard IC
- Support Redundant BIOS
- Supports RAID 0/1
- Supports both Windows 11 and Linux OS
- 200 x 100 x 232mm (7.87″ x 3.94″ x 9.13″), Fanned Barebone
DOWNLOAD
Specifications
| Feature | Specification |
|---|---|
| CPU | AMD Ryzen™ AI Max 300 Series (AMD Ryzen™ AI Max+ 395, 16-Core, Boost up to 5.1GHz) |
| Chipset | N/A |
| BIOS | 2 x AMI SPI 256 Mbit (Primary BIOS + Redundant BIOS) |
Graphics
| Feature | Specification |
|---|---|
| Controller | AMD Radeon™ 8060S Graphics |
| HDMI | HDMI 2.1, Max Resolution 7680 × 4320 @ 60Hz |
| DisplayPort | DP 2.1, Max Resolution 7680 × 4320 @ 60Hz |
| Multi Display | Quad Display (2 x HDMI + 3 x DP outputs via Type-C/USB4) |
Storage
| Feature | Specification |
|---|---|
| M.2 Slot 1 | 1 x M.2 Key-M (2242/2280), PCIe Gen4 x4 SSD |
| M.2 Slot 2 | 1 x M.2 Key-M (2280), PCIe Gen4 x4 SSD |
| RAID | RAID 0 / RAID 1 Support |
Expansion
| Feature | Specification |
|---|---|
| WLAN | 1 x M.2 Key-E, Wi-Fi 7 (802.11be) + Bluetooth 5.4 |
Network
| Feature | Specification |
|---|---|
| LAN 1 | Marvell AQC113, 10/100/1000/2500/5000/10000 Mbps |
| LAN 2 | Realtek RTL8125BG, 10/100/1000/2500 Mbps |
| Connector | 2 x RJ-45 |
Audio
| Feature | Specification |
|---|---|
| Codec | Realtek ALC897 High Definition Audio |
| Rear I/O | 1 x Mic-In, 1 x Line-Out |

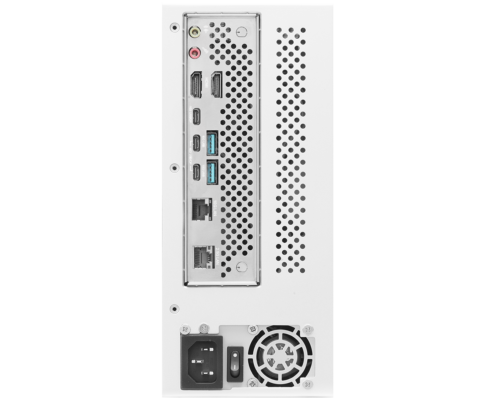

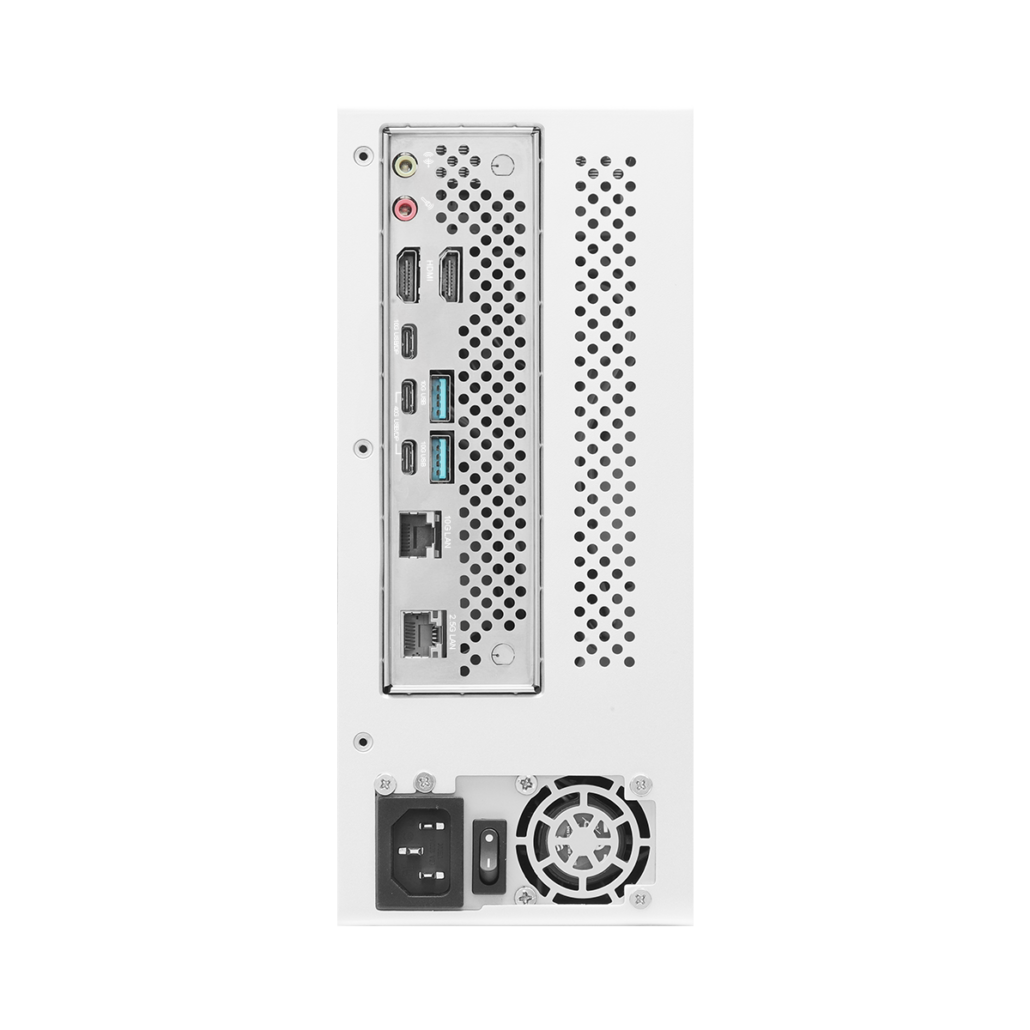

USB & I/O
| Feature | Specification |
|---|---|
| Top I/O | 2 x USB 2.0 |
| USB4 | 2 x USB4 (5V/3A, DP 2.1 Output Supported) |
| USB Type-C | 1 x USB 3.2 Gen2 Type-C (5V/3A, DP 2.1 Output Supported) |
| USB 3.2 | 2 x USB 3.2 Gen2 |
| HDMI | 2 x HDMI 2.1 |
Watchdog Timer
| Feature | Specification |
|---|---|
| Output | From Super I/O to RESETCON# |
| Interval | 0 ~ 255 Seconds (256 Segments) |
Security
| Feature | Specification |
|---|---|
| TPM | TPM 2.0 Onboard IC |
| BIOS Protection | Redundant BIOS Support |
Power
| Feature | Specification |
|---|---|
| Input Power | AC 100 ~ 240V, 50/60Hz, 400W |
| Power Mode | AT / ATX Supported |

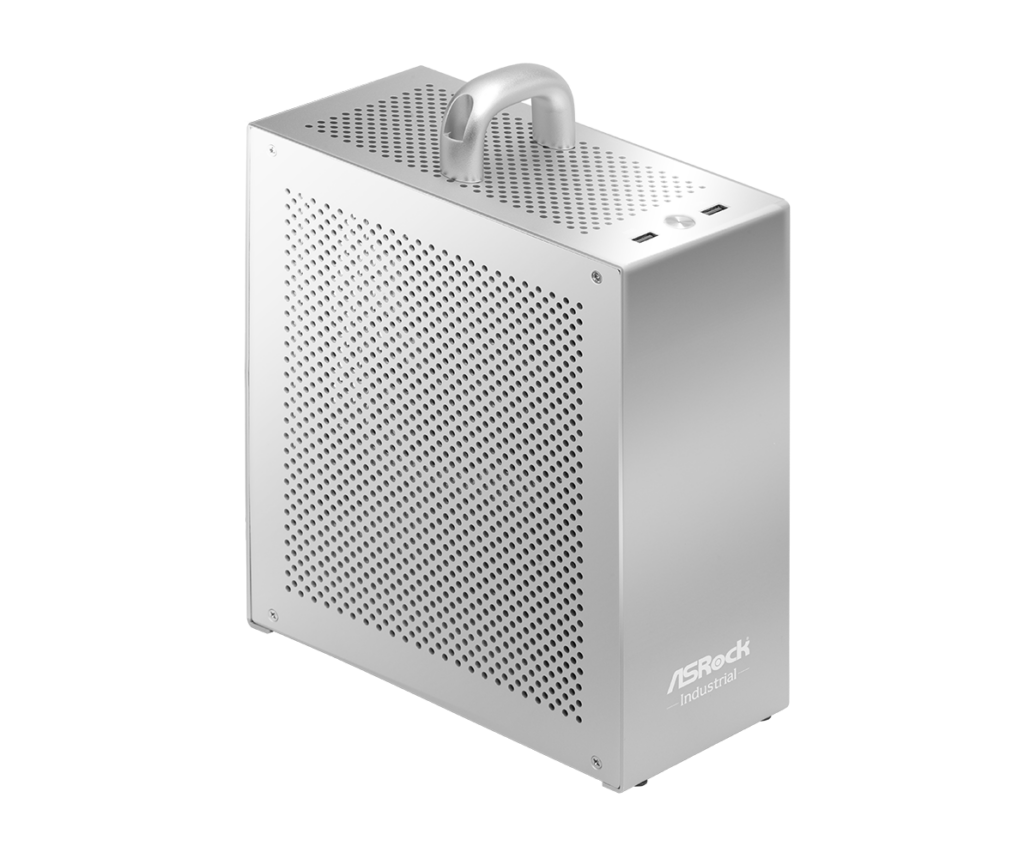

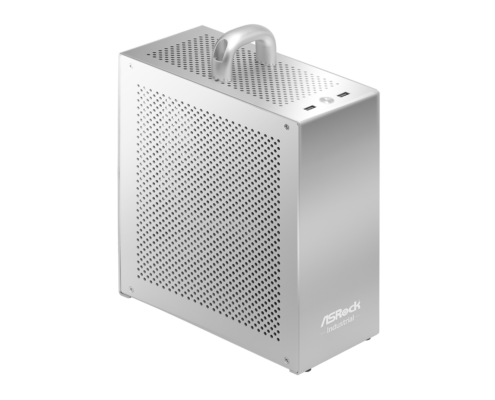

Mechanical
| Feature | Specification |
|---|---|
| Housing | Aluminum Housing |
| Dimensions (L × W × H) | 200 × 100 × 232 mm (7.87″ × 3.94″ × 9.13″) |
| Weight | Net Weight: 2.8 kg |
Environmental
| Feature | Specification |
|---|---|
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -40°C ~ 85°C |
| Operating Humidity | 5% ~ 90% (Non-condensing) |
| Storage Humidity | 5% ~ 90% (Non-condensing) |
Software & Certifications
| Feature | Specification |
|---|---|
| OS Support | Windows 11, Linux |
| Certifications | CE, FCC |
Package Contents
| Feature | Specification |
|---|---|
| Included Accessories | 1 x Power Cord, 1 x Handle Kit, 2 x Antenna, 1 x M.2 Nut, 1 x QIG, 1 x M.2 Heatsink Module, 1 x M.2 Thermal Pad, 2 x M.2 Screws |
