CAN-AIR-2
Wireless CAN-Bridge with USB Interface
Product Availability : Against PO

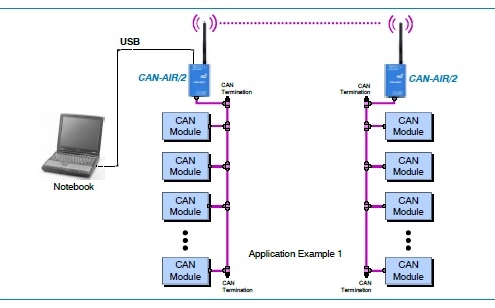

FEATURES
-
CAN telegram filtering
-
ISM band (2.4 GHz)
-
External antenna
-
USB interface
-
Data exchange between CAN nets with two different baud rates possible
-
Easy to use Windows configuration tool
-
All settings are stored within the device
-
Power supply also via CAN DSUB9 connector (PoC)
DOWNLOAD
SPECIFICATIONS
| Radio communication: | |
| Carrier frequency | ISM band, 2.4 GHz |
| Transceiver |
typical peak output power: 0 dBm,
typical Rx sensitivity for BER = 10 -4: – 85 dBm
|
| Antenna type |
impedance: 50 Ohms nominal,
antenna gain: 2.0 dBi,
connector: coaxial SMA plug (male)
|
| Transmission range | approx. 25 m line-of-sight (LoS) distance |
| CAN, Microcontroller: | |
| Microcontroller | ARM LPC2292, CAN: ISO 11898-1 |
| CAN interface |
acc. to ISO 11898-2, electrically isolated,
bit rate up to 1 Mbit/s
|
| Software |
Windows based configuration tool and
monitoring tool CANreal
|
| General: | |
| Ambient temp. | 0 °C … +50 °C |
| Relative humidity | Max. 90 % (non-condensing) |
| Power supply |
via USB: 5 VDC or external supply: 12/24 VDC;
optional PoC (CAN-AIR/2-PoC only)
|
| Dimensions | 90 x 55 x 25 mm (without antenna) |
| Connectors |
CAN: 9-pole DSUB (male),
Antenna: SMA (female)
|
| Order Information: | |
| CAN-AIR/2 |
Wireless CAN-Bridge (single module)
|
| Warranty |
1 year carry in
|
