I-7561

USB to Isolated RS-232/422/485 Converter

Product availability: In Stock

Country Of Origin: Taiwan

FEATURES:

  • Fully Compliant with the USB 1.1/2.0 (High Speed)
  • No External Power Supply required.
  • Baud Rate, 300 ~ 115200 bps
  • 3000 VDC Isolation Protection on the RS-232/422/485 side
  • ESD Protection for the RS-232/422/485 Data Line
  • Operating Temperatures, -25 °C ~ +75 °C
  • Driver Supports Windows 98/ME/2000/XP/Vista (32/64-bit)/7 (32/64-bit)/Linux
  • DIN-Rail

DOWNLOAD

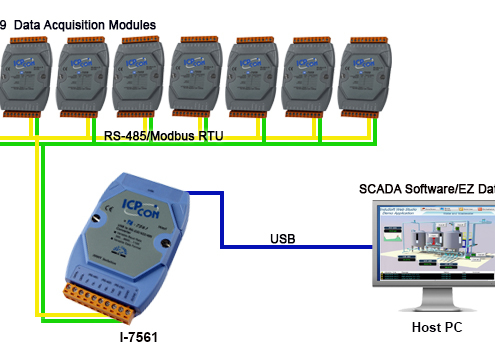

Interface
USB Compatibility: USB 1.1 and 2.0 standards
Serial Interface RS-232 TxD, RxD, GND The RS-232, RS-422 and RS-485 cannot be used simultaneously
RS-422 TxD+, TxD-, RxD+, RxD
RS-485 Data+, Data-
2-wire cabling/4-wire cabling Belden 8941 (2P twisted-pair cable)/Belden 8942 (4P twisted-pair cable), if different cables are used,
the transmission distance may change
RS-422/485 Transfer Distance Max. 1,200 m at 9.6 kbps; Max. 400 m at 115.2 kbps
Maximum Supported RS-485 Devices 256 (Without repeater)
Self-Tuner Asic Inside (RS-485) Yes
Speed 300 ~ 115200 bps

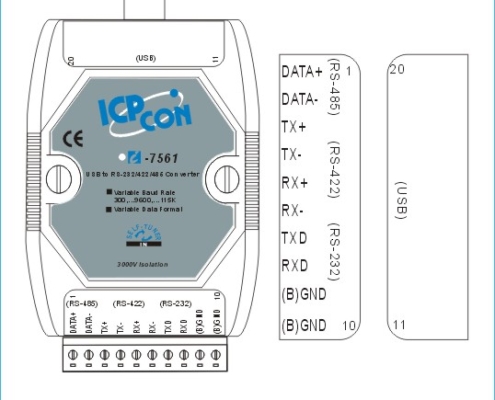

Connection RS-232/422/485 Removable 10-Pin Terminal Block
USB Type B
Cable Included CA-USB18 (1.8 m Cable) x 1
LED Indicators
Power Yes
Power
Input Voltage Range +5 VDC From USB
Power consumption 0.1A @ 5V = 0.5W, +/- 5%
Casing
Mechanical Plastic
Flammability UL 94V-0 materials
Dimensions 61 mm x 33 mm x 15 mm
Installation DIN-Rail
Environment
Operating Temperature -25°C ~ 75 °C
Storage Temperature -30°C ~ 75 °C
Ambient Relative Humidity 10% ~ 90% RH, non-condensing
