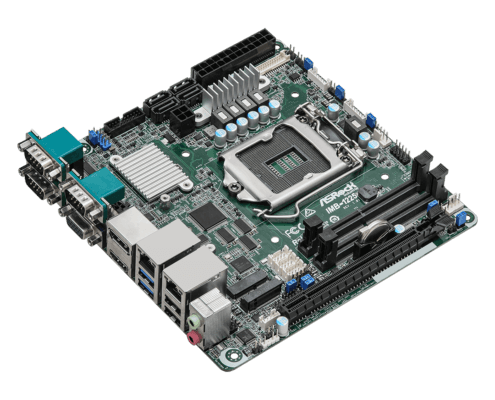

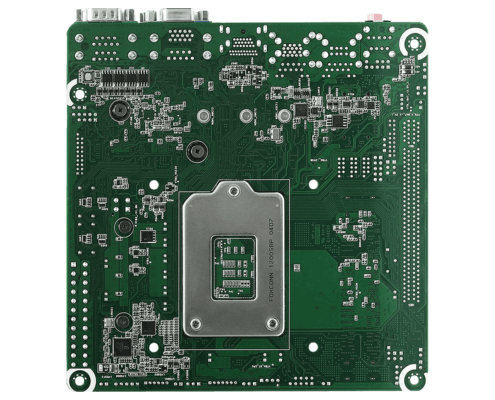

IMB-1225
Mini-ITX Motherboard
Product Availability : Against PO
FEATURES
- Intel® 10th Gen (Comet lake-S) Core™ Processors with H410 chipset
- 2 x 260-pin SO-DIMM Support Dual Channel DDR4 2933 (i9/i7 CPU)/ 2666 (i5/i3 CPU) / 2400 (Pentium/ Celeron CPU), up to 64GB
- 1 x PCIe x16 Gen3, 4 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 3 x COM, 6 x COM, 4 x SATA3
- 2 x Intel 1 Gigabit LAN
- Support Dual display, 1 x DP 1.2, 1 x VGA, 1 x HDMI 1.4, 1 x LVDS
- ATX-PWR (24+4-pin)
DOWNLOAD
Specifications
| Form Factor | |
| Dimensions | Mini-ITX (6.7-in x 6.7-in) |
| Processor System | |
| CPU | Intel® 10th Gen (Cometlake-S) Core™ Processors, up to 65W *The performance of CPUs over 65W will be limited due to power design. |
| Chipset | Intel® H410 |
| Socket | LGA1200 |
| BIOS | AMI SPI 128 Mbit |
| Memory | |
| Technology | Dual Channel DDR4 2933/2666/2400 MHz – Intel Core i9/i7 CPUs support DDR4 up to 2933 MHz – Intel Core i5/i3 CPUs support DDR4 up to 2666 MHz – Intel Pentium/Celeron CPU support DDR4 up to 2400 MHz |
| Capacity | 64GB (32 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
| Graphics | |
| Controller | Intel® UHD Graphics |
| DisplayPort | DisplayPort 1.2 , DP++ Max resolution up to 4096×2160@60Hz |
| HDMI | HDMI 1.4 Max resolution up to 4096×2160 @30Hz |
| VGA | Max resolution up to 1920×1200@60Hz |
| LVDS | Dual channel 24 bit up to 1920 x 1200@60Hz |
| MultiDisplay | Dual Display |
| Expansion Slot | |
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1 ,USB 2.0 for Wireless |
| PCIe | 1 x PCIe x16 (Gen3) |
| Audio | |
| Interface | Realtek ALC897 HD , High Definition Audio. Line-out,Mic-in. |
| Ethernet | |
| Controller/ Speed | LAN1: Intel® I219V with 10/100/1000 Mbps LAN2: Intel® I210 with 10/100/1000 Mbps |
| Connector | 2 x RJ-45 |

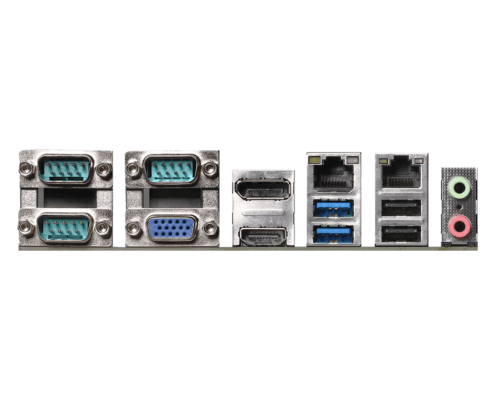

| Rear I/O | |
| Ethernet | 2 x 1 Gigabit LAN |
| USB | 2 x USB 2.0, 2 x USB 3.2 (Gen1) |
| HDMI | 1 x HDMI 1.4 |
| Audio | 2 (Mic-in, Line-out) |
| DisplayPort | 1 x DP 1.2 |
| VGA | 1 |
| COM | COM1,2 (support RS-232/422/485), COM3(support RS-232 only) |
| Internal Connector | |
| USB | 2 x USB 3.2 Gen1 (1 x USB 3.2 Gen1 header) 2 x USB 2.0 (1 x 2.54 pitch header |
| COM | 3 x COM (RS-232) |
| GPIO | 4 x GPI, 4 x GPO |
| LVDS | 1 |
| Speaker Header | 1 |
| Storage | |
| M.2 | 1 x M.2 (Key M, 2242/2260/2280) with PCIE x4 |
| SATA | 4 x SATA3 (6Gb/s) |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 Segments, 0, 1, 2, …255sec |
| Power Requirements | |
| Input PWR | ATX PWR 4pin+24 Pin |
| Power On | AT/ATX Supported – AT : Directly PWR on as power input ready – ATX : Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | 0ºC ~ 60ºC |
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
| Accessories | |
| Gift Package | 1 x I/O Shield (13G020669000AK) 2 x SCREW M2*2,D=5 (13G020302031AK) 2 x SATA Data Cable (14G00010107DAK) |
| Bulk Package | 1 x I/O Shield (13G020669000AK) 2 x SCREW M2*2,D=5 (13G020302031AK) |
