FEATURES
- Outdoor-ready IP55 enclosure for rain, dust, and harsh conditions
- Dual SIM + eSIM automatic failover for network redundancy
- PoE-in and PoE-out to power cameras or other devices via Ethernet
- Gigabit Ethernet connectivity
- Advanced VPN & routing features via RutOS
- Remote monitoring and configuration with RMS
DOWNLOAD
otd500-datasheet-v121
Specifications
| Specification | Details |
|---|---|

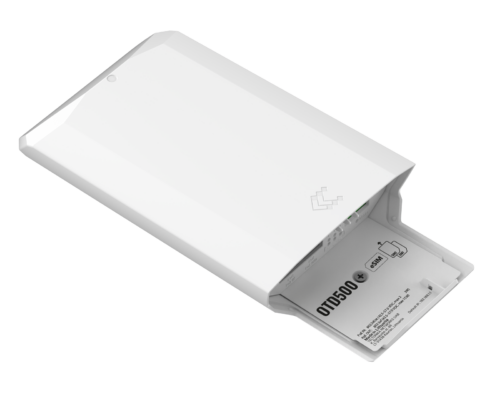

| Device Type | Outdoor 5G Industrial Router |
| Mobile Connectivity | 5G Sub-6 GHz / 4G LTE Cat 19 / 3G |
| Max 5G Speed | Up to 3.4 Gbps download / 900 Mbps upload |

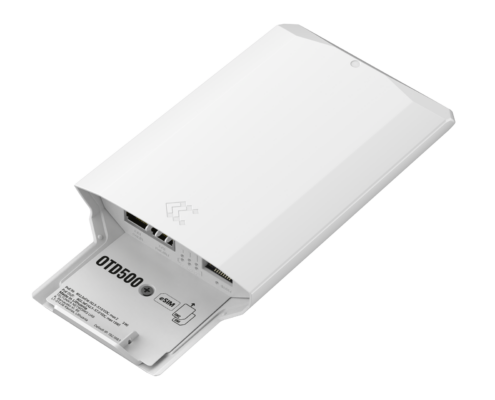

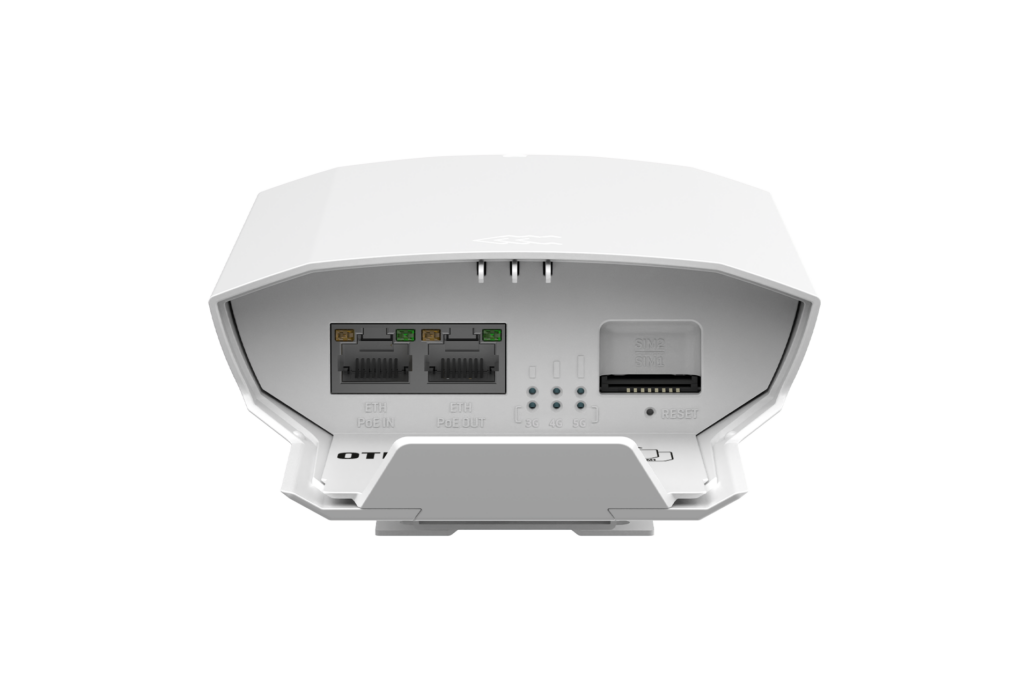

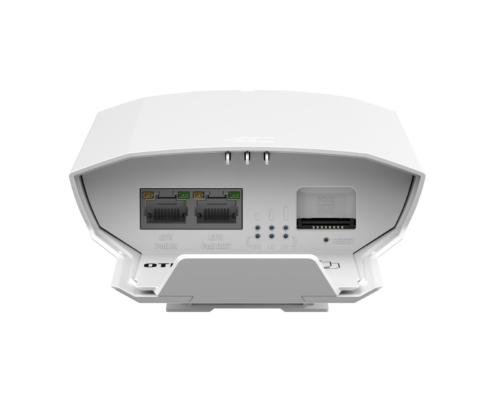

| Ethernet Ports | 2 × RJ45 Gigabit (10/100/1000 Mbps) |
| PoE Support | 1 × PoE-IN, 1 × PoE-OUT (802.3af/at) |

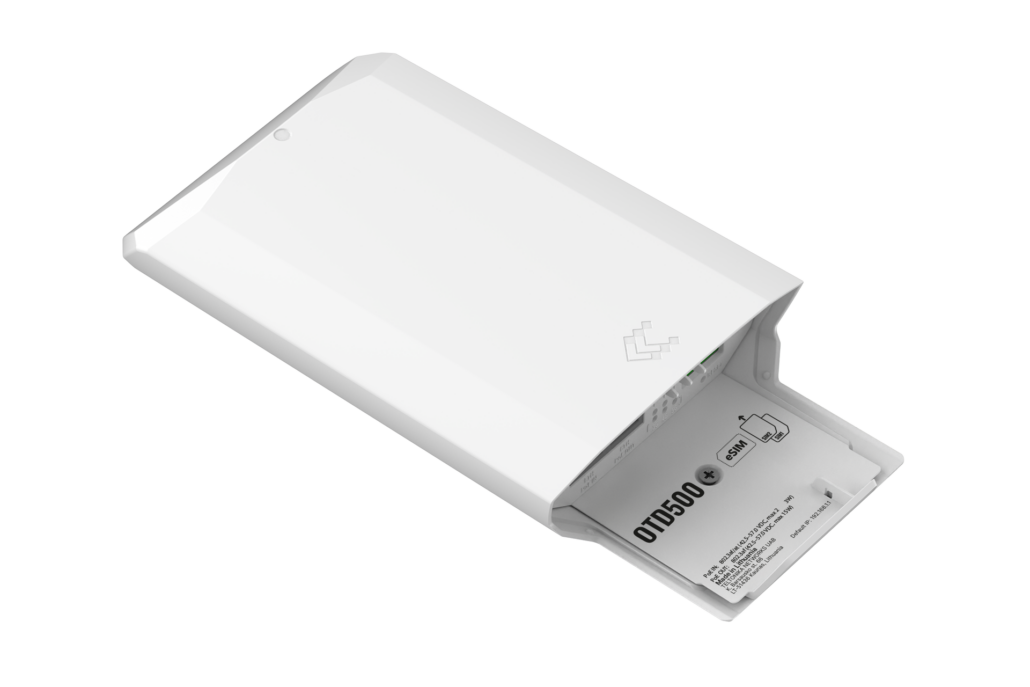

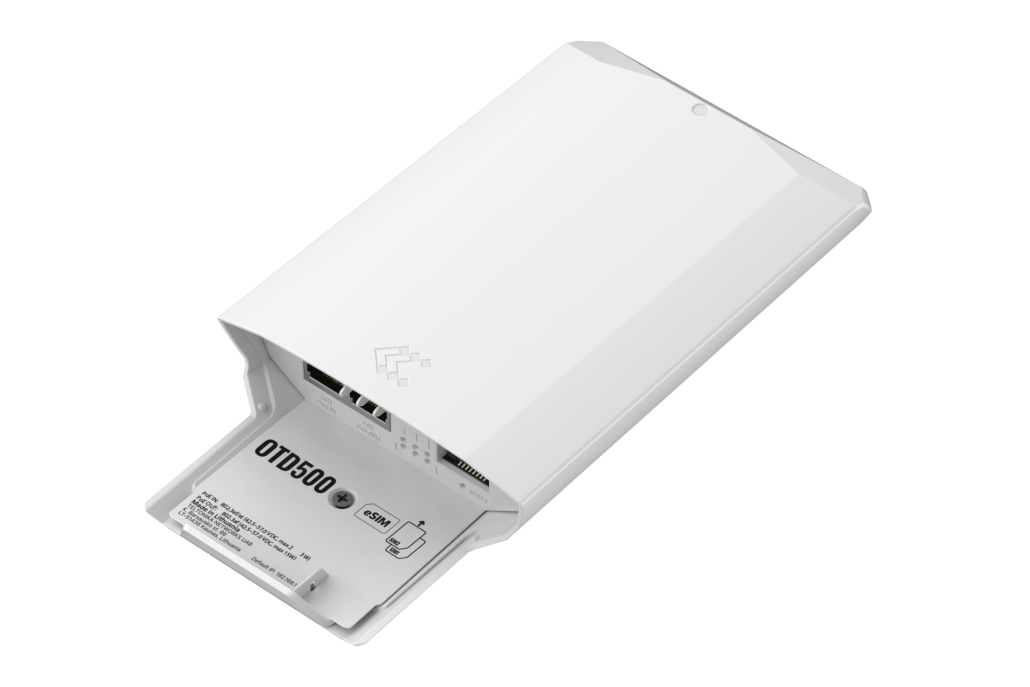

| SIM Support | 2 × Mini-SIM (2FF) + eSIM |
| Antennas | 4 × Internal omnidirectional antennas |
| CPU | MediaTek dual-core processor |
| RAM | 256 MB DDR3 |
| Storage | 16 MB NOR + 256 MB NAND |
| Power Input | 42.5–57 V DC via PoE |
| Power Consumption | Idle <2.5 W, Max <9 W |

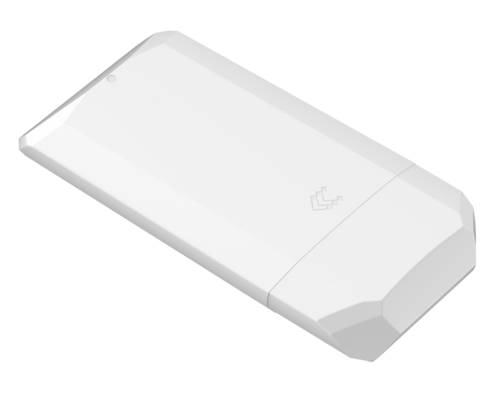

| Protection Rating | IP55 weather-resistant housing |
| Operating Temperature | -40 °C to +55 °C |
| Dimensions | 110 × 49.3 × 235 mm |
| Weight | ~385 g |

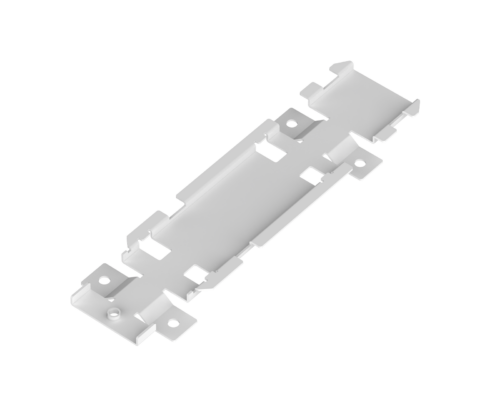

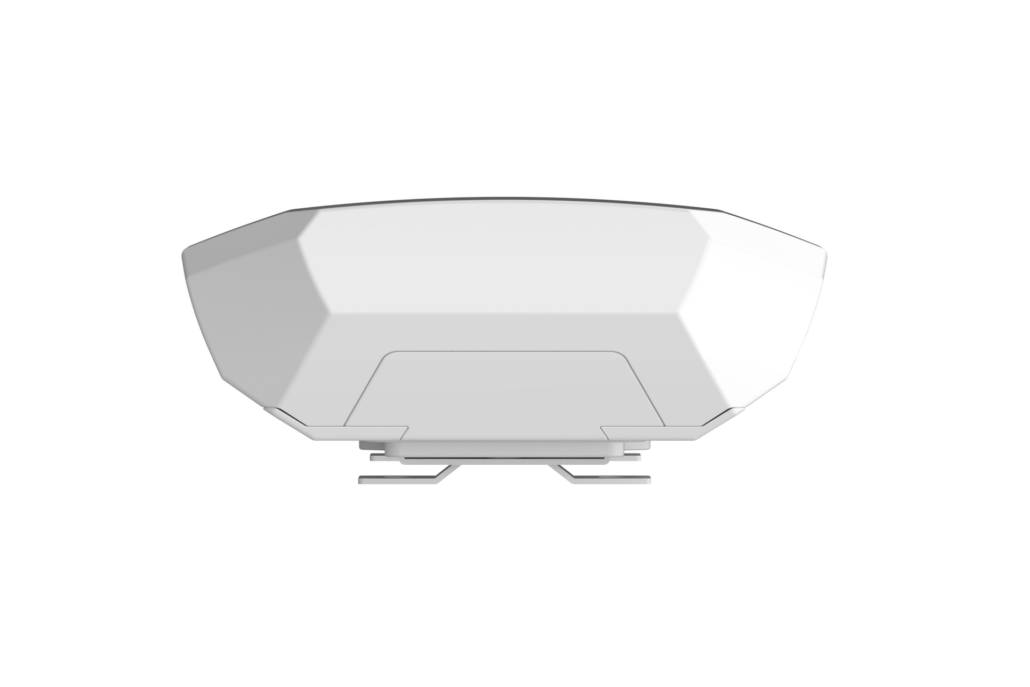

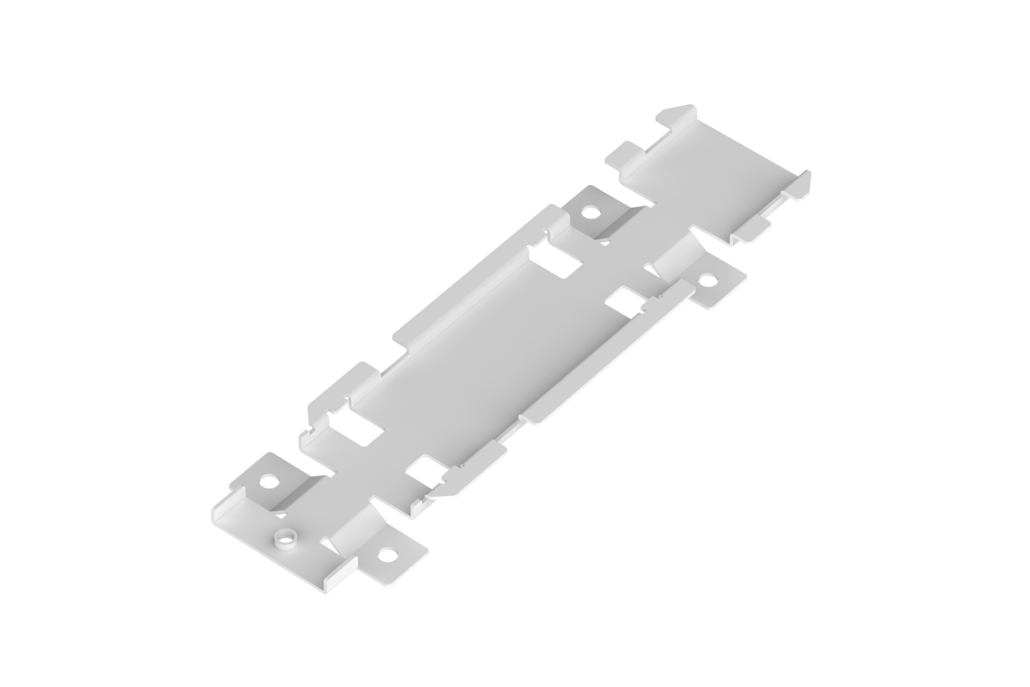

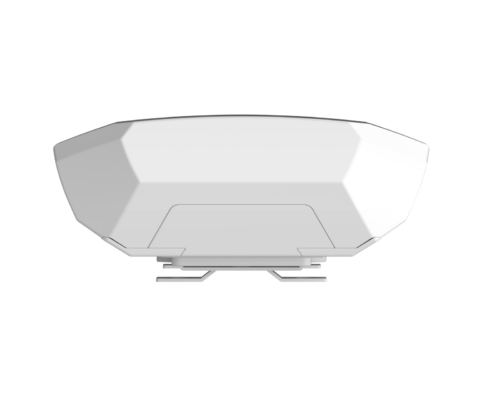

| Mounting | Wall or pole mounting bracket |
| Management | Teltonika RMS remote management |
