FEATURES
-
Dual SIM automatic switching for reliable connectivity
-
RS232 & RS485 for PLC, sensors, and industrial equipment
-
Active & passive PoE input for flexible installation
-
MicroSD storage for data logging
-
Advanced networking protocols (MQTT, Modbus, VPN, SNMP, etc.)
-
Remote monitoring via Teltonika RMS cloud platform
DOWNLOAD
rut206-datasheet-v111
Specifications
| Specification | Details |
|---|---|
| Cellular Connectivity | 4G LTE Cat 4 / 3G / 2G |
| Max LTE Speed | 150 Mbps Download / 50 Mbps Upload |
| SIM Slots | 2 × Mini-SIM (2FF) with auto failover |
| Wi-Fi | 802.11 b/g/n (Wi-Fi 4) |
| Max Wi-Fi Clients | Up to 50 users |
| Ethernet Ports | 2 × RJ45 (10/100 Mbps) |

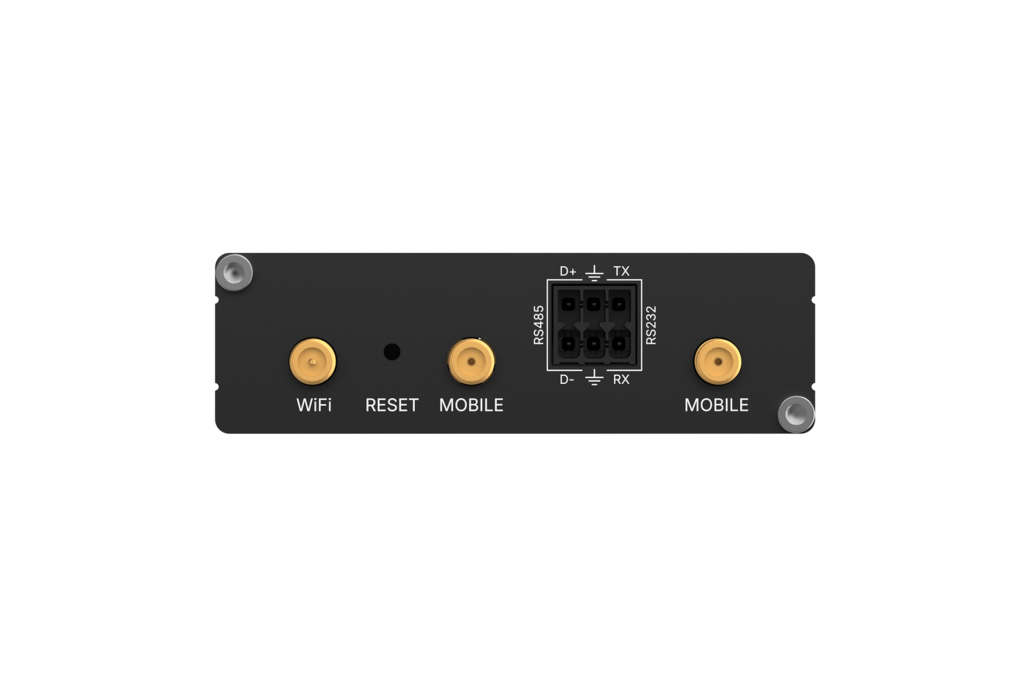

| Serial Interfaces | RS232 + RS485 |
| Antennas | 2 × SMA (LTE), 1 × RP-SMA (Wi-Fi) |
| Storage | MicroSD slot (up to 2 TB) |
| Power Input | 9–57 V DC |
| PoE | Active 802.3af PoE-in + Passive PoE |
| Power Consumption | Idle <2 W, Max <3.5 W |
| Operating System | RutOS (OpenWrt-based) |
| Dimensions | 83 × 25 × 83 mm |
| Weight | ~132 g |
| Operating Temperature | −40 °C to +75 °C |
| Housing | Aluminium industrial casing |
