FEATURES
- 5G RedCap technology (low-latency IoT-focused 5G)
- Dual SIM failover for reliable connectivity
- RS232 / RS485 support for PLC & industrial devices
- Advanced VPN support (OpenVPN, IPsec, WireGuard)
- RMS cloud management for remote monitoring
- Industrial protocol support like Modbus, OPC-UA, BACnet
DOWNLOAD
Specifications
| Specification | Details |
|---|---|
| Cellular Connectivity | 5G RedCap (Sub-6 GHz SA) + 4G LTE Cat 4 fallback |
| Max Speed | 223 Mbps Download / 123 Mbps Upload (5G) |
| SIM Slots | 2 × Mini-SIM (2FF) with auto-failover |
| Wi-Fi | Wi-Fi 4 (802.11 b/g/n) |
| Max Wi-Fi Clients | Up to 50 devices |

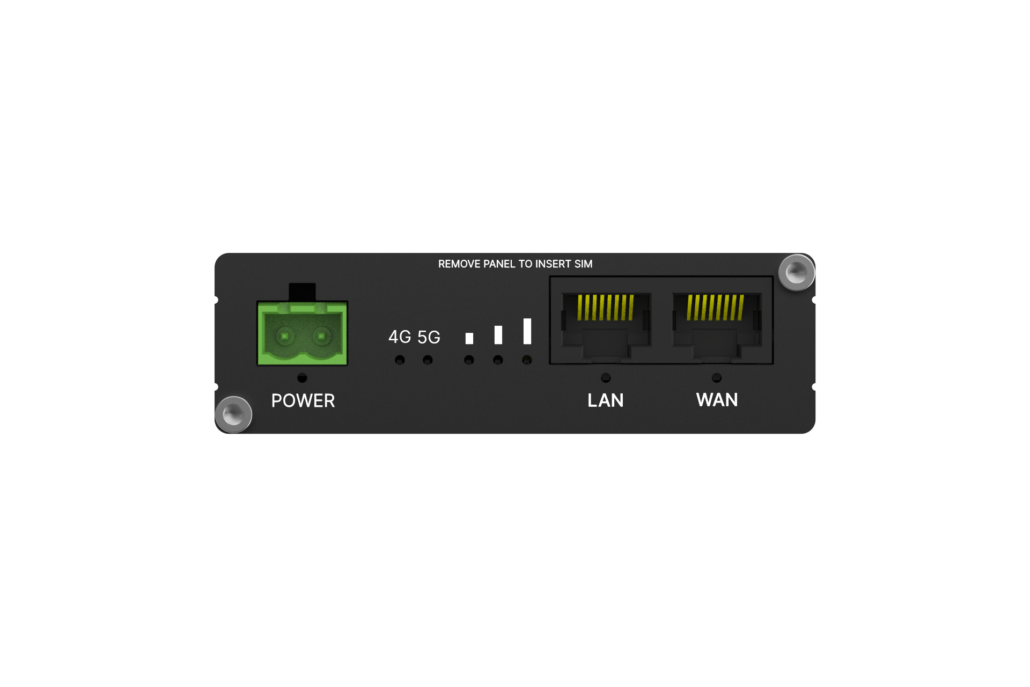

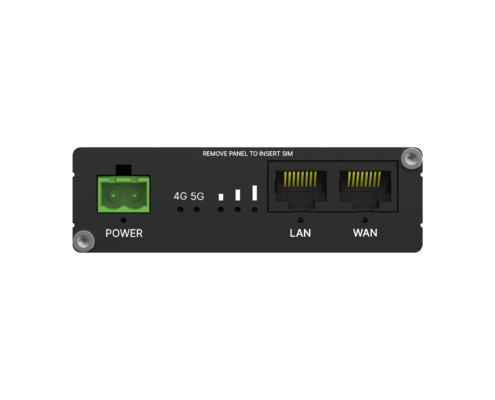

| Ethernet Ports | 2 × RJ45 (10/100 Mbps) |

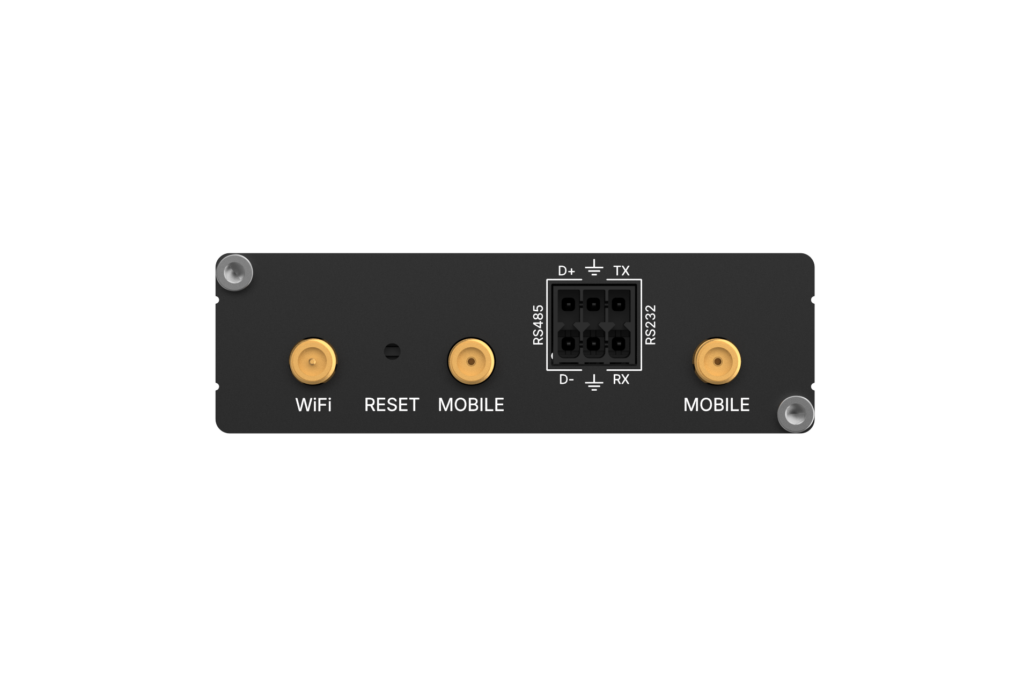

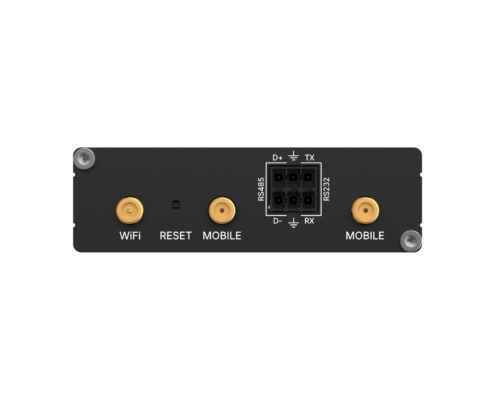

| Serial Interfaces | RS232 + RS485 (6-pin terminal) |
| CPU | MediaTek 580 MHz |
| RAM | 128 MB DDR2 |
| Flash | 32 MB SPI Flash |
| Storage | MicroSD slot (up to 2 TB) |
| Antennas | 2 × SMA (cellular), 1 × RP-SMA (Wi-Fi) |
| Power Input | 9–57 V DC |
| PoE | 802.3af PoE-in + Passive PoE |
| Operating Temperature | −40 °C to +75 °C |
| Housing | Industrial aluminium case (IP30) |
| Dimensions | 83 × 83 × 25 mm |
| Weight | ~132 g |
