FEATURES
-
5G RedCap technology (low-power 5G between LTE and full 5G)
-
WAN failover for backup connectivity
-
Industrial protocols support (MQTT, Modbus TCP, SNMP)
-
Advanced VPN support (WireGuard, IPsec, OpenVPN, ZeroTier)
-
SMS control & remote management
-
Teltonika RMS cloud management for monitoring devices remotely
DOWNLOAD
rut271-datasheet-v121
Specifications
| Specification | Details |
|---|---|
| Cellular Connectivity | 5G RedCap (Sub-6 GHz SA) / 4G LTE Cat 4 |
| Max 5G Speed | 223 Mbps Download / 123 Mbps Upload |
| Max 4G Speed | Up to 150 Mbps Download |
| SIM Slot | 1 × Mini-SIM (2FF) |
| Wi-Fi | 802.11 b/g/n (Wi-Fi 4) |
| Max Wi-Fi Clients | Up to 50 devices |
| Ethernet Ports | 2 × RJ45 (10/100 Mbps) |
| Digital I/O | 1 × Digital Input, 1 × Digital Output |
| CPU / RAM | 128 MB DDR2 RAM |
| Flash Storage | 32 MB NOR Flash |

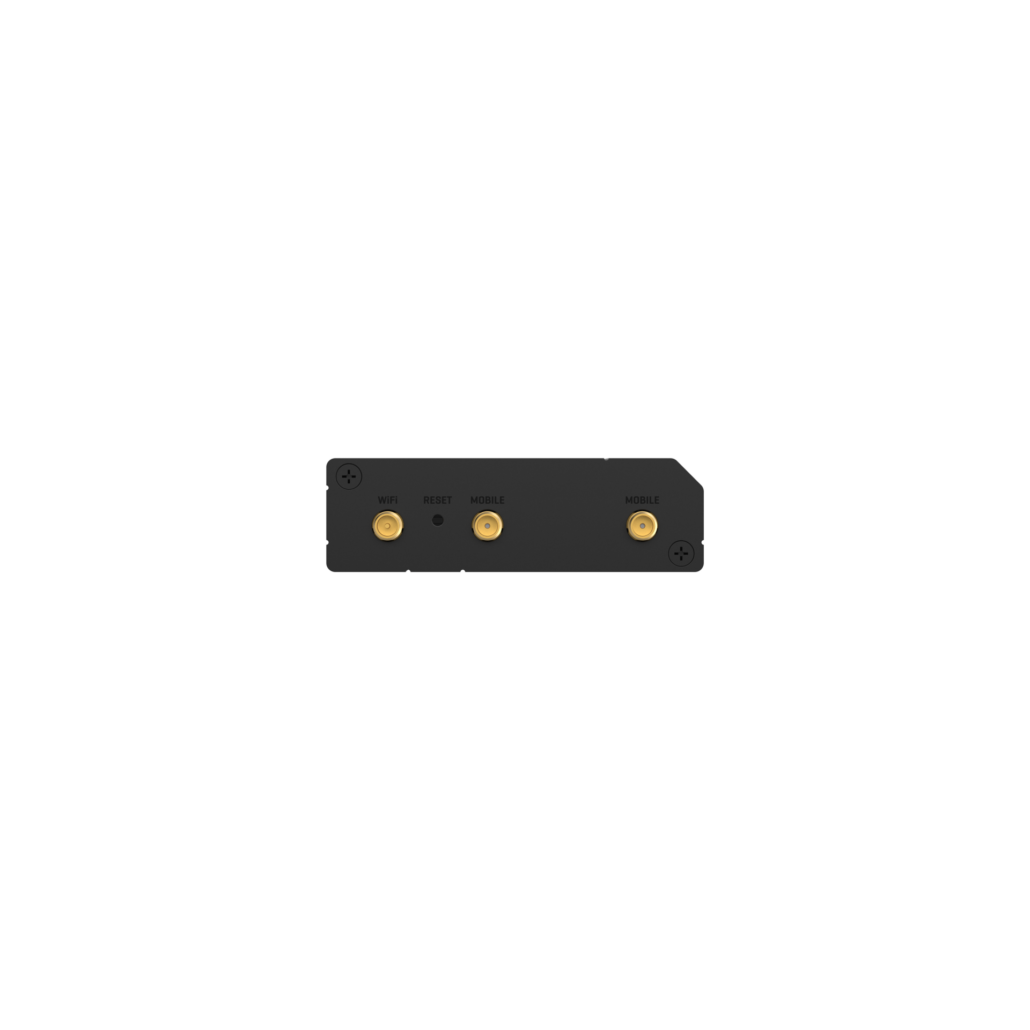

| Antennas | External LTE and Wi-Fi antennas |
| Power Input | 9 – 30 V DC (industrial connector) |
| PoE | Passive PoE supported (LAN1, Mode-B) |
| Power Consumption | Idle <1.5 W, Max <3 W |
| Operating Temperature | −40 °C to +75 °C |
| Dimensions | 83 × 25 × 74 mm |
| OS | RutOS (Linux / OpenWrt-based) |
