FEATURES

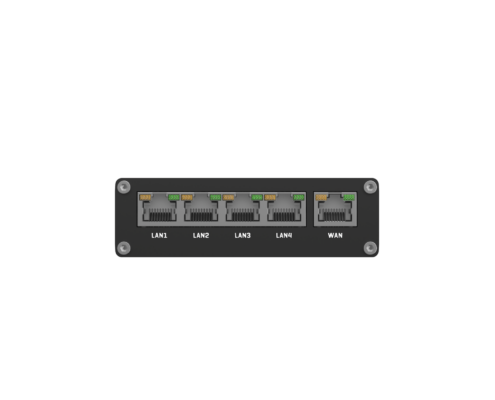

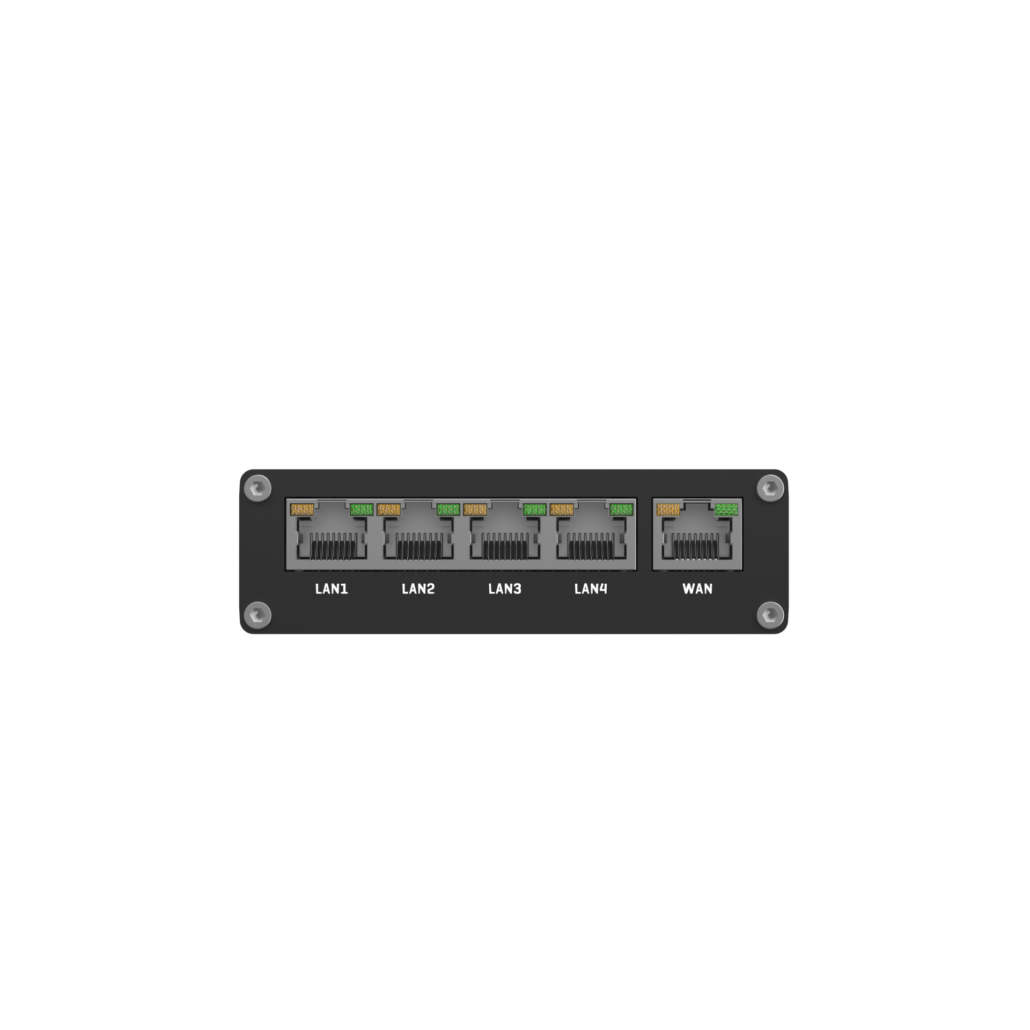

- Ethernet Ports: 5 × Fast Ethernet (10/100 Mbps)
- WAN / LAN: Flexible configuration (any port WAN )
- Industrial Design: DIN rail mounting support
- Operating System: RutOS (Linux based)
- Protocols Support:
- Modbus TCP
- MQTT
- SNMP
- VPN (OpenVPN, IPsec, WireGuard)
- Firewall & Security: Advanced firewall rules
- Remote Management:
- RMS (Remote Management System)
- Web UI / SSH / CLI
DOWNLOAD
Datasheet_RUT301_1.12
Specifications
| Category | Specification |
|---|---|

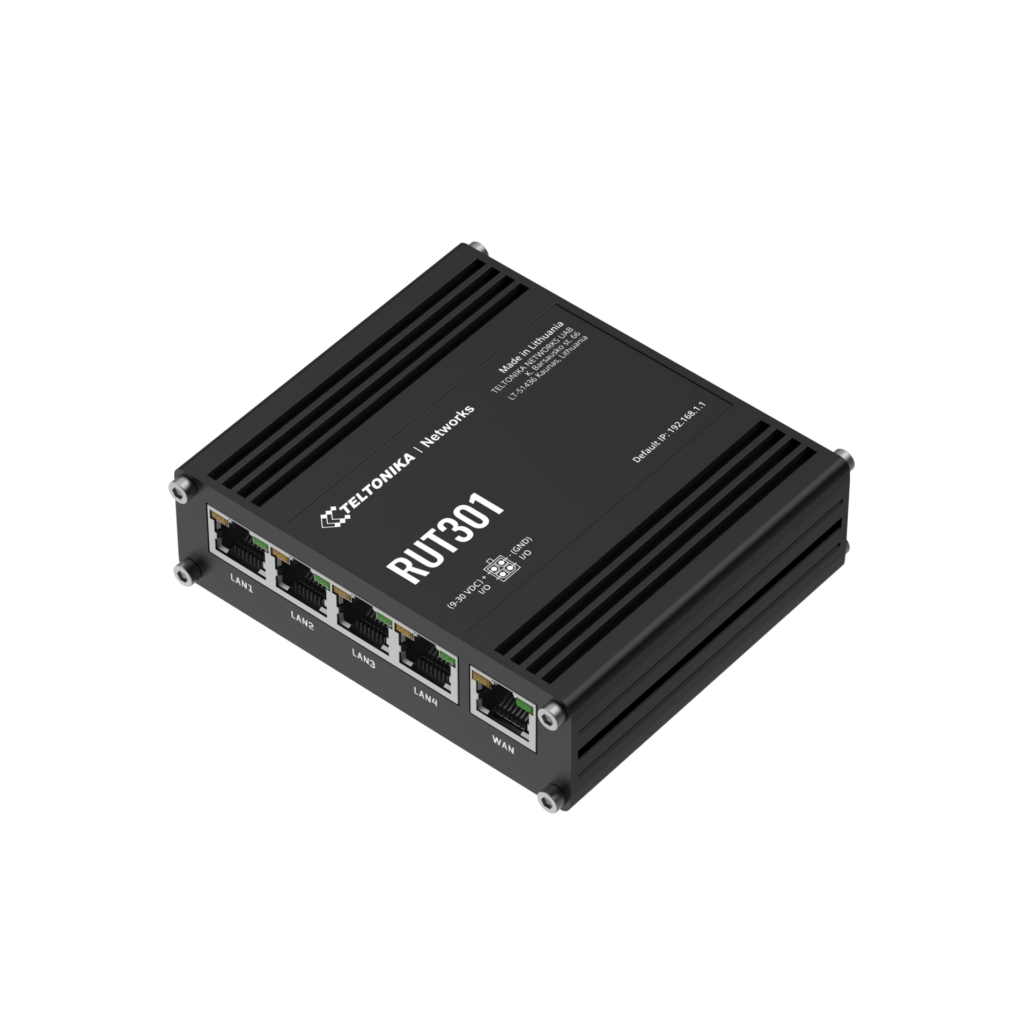

| Product Type | Industrial Wired Ethernet Router |
| CPU | Qualcomm Atheros QCA9531, 650 MHz |
| RAM | 64 MB DDR2 |
| Flash Storage | 16 MB |
| Operating System | RutOS (Linux-based) |
| Ethernet Ports | 5 × 10/100 Mbps Fast Ethernet |
| WAN Options | Any Ethernet port configurable as WAN |
| Cellular Support | ❌ No SIM / No 4G / No 5G |
| Wi-Fi | ❌ Not Available |
| VPN Support | OpenVPN, IPsec, WireGuard, GRE, PPTP, L2TP |
| Network Protocols | TCP, UDP, IPv4, IPv6, DHCP, DNS |
| Industrial Protocols | Modbus TCP Client/Server |
| IoT Protocols | MQTT, SNMP |
| Firewall | Stateful firewall, NAT, Port forwarding |
| Remote Management | RMS (Teltonika Remote Management System), Web UI, SSH |
| Power Input | 9 – 30 V DC |
| Power Connector | 2-pin industrial DC connector |
| Mounting | DIN Rail / Wall mount |
| Operating Temperature | -40°C to +75°C |
| Dimensions | 100 × 30 × 85 mm |
| Weight | ~229 g |
| Certifications | CE, FCC, RoHS |
| Typical Use | Industrial automation, PLC communication, CCTV network, IoT gateway |
