FEATURES
-
4G LTE Cat6 with Carrier Aggregation (faster mobile internet)
-
Wi-Fi hotspot support for multiple devices
-
WAN Failover – automatic backup internet switching
-
Industrial temperature range (-40°C to 75°C)
-
Remote device management with RMS platform
DOWNLOAD
rut361-datasheet-v12
Specifications
| Category | Specification |
|---|---|
| Product Type | Industrial Cellular Router |
| Cellular | 4G LTE Cat 6 |
| Max Speed | 300 Mbps Download / 50 Mbps Upload |
| SIM Slot | 1 × Mini SIM (2FF) |
| Wi-Fi | 802.11 b/g/n (Wi-Fi 4), 2×2 MIMO |
| Ethernet Ports | 2 × RJ45 (10/100 Mbps) |
| CPU | Mediatek 580 MHz |
| RAM | 128 MB DDR2 |
| Flash | 16 MB |
| Operating System | RutOS (Linux / OpenWrt based) |
| VPN | OpenVPN, IPsec, WireGuard, L2TP, PPTP |
| Protocols | MQTT, SNMP, Modbus TCP |
| WAN Failover | Yes |
| Remote Management | RMS (Teltonika Remote Management System) |
| SMS Control | SMS commands, SMS to email, SMS to HTTP |

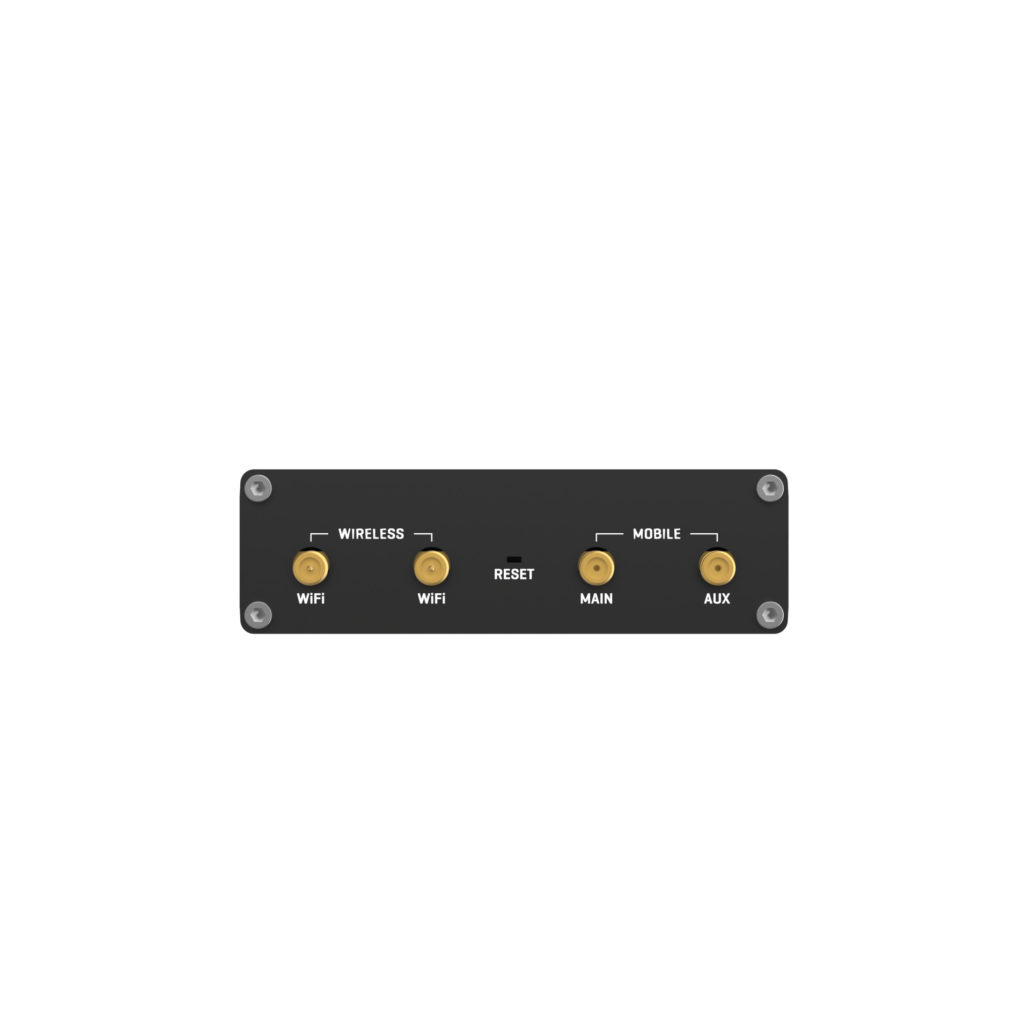

| Antennas | 2 × LTE SMA, 2 × WiFi RP-SMA |
| Digital I/O | 2 configurable inputs / outputs |
| Power Input | 9 – 30 V DC |
| Power Consumption | Idle <2.4 W, Max <4.7 W |
| Mounting | DIN Rail / Wall / Flat surface |
| Operating Temperature | -40°C to +75°C |
| Protection | IP30 Aluminium housing |
| Dimensions | 100 × 30 × 85 mm |
| Weight | ~243 g |
