FEATURES
-
4G LTE Cat 6 (up to 300 Mbps)
-
Dual SIM with auto failover (no network downtime)
-
Carrier Aggregation (faster & stable internet)
-
4 × Gigabit Ethernet ports (1 WAN + 3 LAN)
-
GNSS (GPS, GLONASS, Galileo, BeiDou, QZSS)
-
Advanced routing (BGP, OSPF, RIP, VLAN up to 128)
-
Industrial protocols (MQTT, Modbus, OPC UA)
-
VPN support (OpenVPN, IPsec, WireGuard, ZeroTier)
-
RMS remote management support
DOWNLOAD
rutm09-datasheet-v11
Specifications
| Category | Specification |
|---|---|
| Cellular | 4G LTE Cat 6 (300 Mbps DL / 50 Mbps UL), 3G fallback (Teltonika Networks) |
| SIM | Dual SIM (2FF) |
| Failover | Auto SIM switching + load balancing |
| Wi-Fi | ❌ Not available |

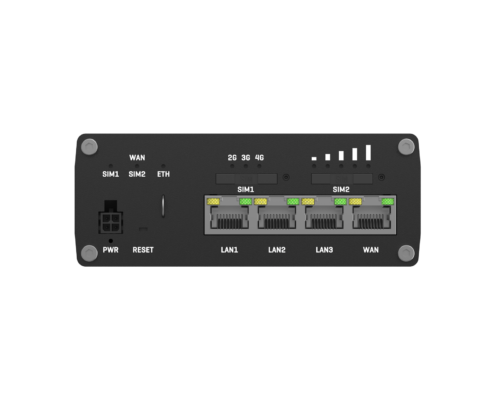

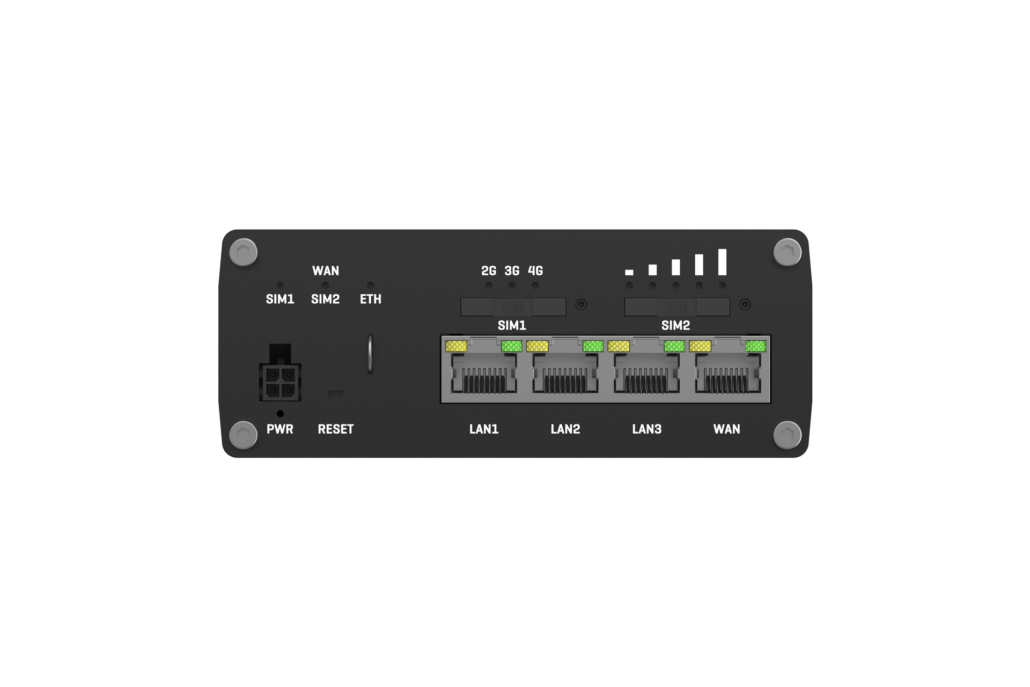

| Ethernet | 4 × Gigabit RJ45 (1 WAN + 3 LAN) |
| GNSS (GPS) | GPS, GLONASS, Galileo, BeiDou, QZSS |
| CPU | Dual-core 880 MHz (MediaTek) |
| RAM / Storage | 256 MB RAM / 16 MB NOR + 256 MB NAND Flas |
| OS | RutOS (Linux / OpenWrt based) |
| USB | 1 × USB 2.0 |
| I/O Ports | 1 × Digital Input, 1 × Digital Output |
| VLAN | Up to 128 VLANs |
| Routing | Static + Dynamic (BGP, OSPF, RIP, EIGRP) |
| Protocols | TCP/IP, MQTT, Modbus, SNMP, HTTP(S), etc. |
| VPN & Security | OpenVPN, IPsec, WireGuard, Firewall |
| Power Input | 9–50 V DC, Passive PoE |
| Power Consumption | ~2.65W idle, ~9.8W max |

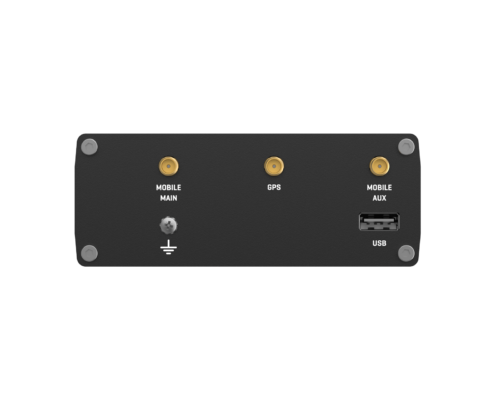

| Antennas | 2 × LTE, 1 × GNSS |
| Dimensions | ~115 × 44 × 95 mm |
| Weight | ~457 g |
| Operating Temp | -40°C to +75°C |
| Protection | IP30 aluminum housing |
