FEATURES
-
Ultra-fast 5G (up to 3.4 Gbps)
-
4G LTE Cat 19 fallback (up to 1.6 Gbps)
-
Dual SIM + eSIM (auto failover, up to 7 profiles)
-
Wi-Fi 6 (802.11ax) dual-band, MU-MIMO
-
Supports up to 512 Wi-Fi users
-
High performance CPU + 1GB RAM (edge computing)
-
5 × Gigabit Ethernet ports
-
GNSS (GPS, GLONASS, Galileo, BeiDou)
-
Advanced VPN + Industrial protocols (MQTT, Modbus, OPC UA)
-
Industrial rugged design (-40°C to +75°C)
DOWNLOAD
Datasheet_RUTC50_1.33
Specifications
| Category | Specification |
|---|---|
| Cellular | 5G Sub-6 (up to 3.4 Gbps DL / 900 Mbps UL), 4G LTE Cat 19, 3G |
| SIM | Dual SIM + eSIM (multi-profile) |
| Failover | Auto SIM switching + WAN backup |
| Wi-Fi | Wi-Fi 6 (802.11ax), Dual-band (2.4 GHz + 5 GHz) |
| Wi-Fi Speed | Up to 2402 Mbps (5 GHz) + 576 Mbps (2.4 GHz) |
| Wi-Fi Users | Up to 512 simultaneous clients |

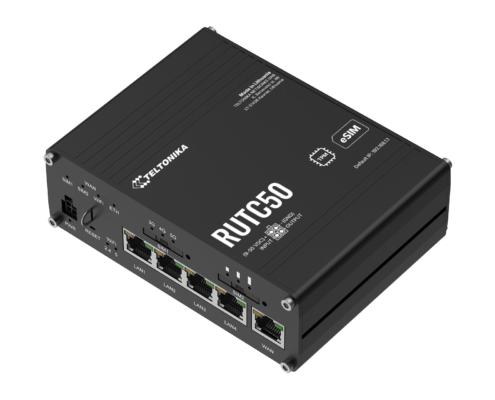

| Ethernet | 5 × Gigabit RJ45 (1 WAN + 4 LAN) |
| CPU | Dual-core ARM Cortex-A53 |
| RAM / Storage | 1 GB RAM / 8 GB Flash |
| OS | RutOS (Linux / OpenWrt based) |
| Interfaces | 1 × Digital Input, 1 × Digital Output |
| USB | 1 × USB-A port |
| GNSS | GPS, GLONASS, Galileo, BeiDou, QZSS |
| Protocols | MQTT, Modbus, OPC UA, HTTP(S), SNMP |
| VPN & Security | IPsec, OpenVPN, WireGuard, ZeroTier, Firewall |
| Power Input | 9–50 V DC, Passive PoE |
| Power Consumption | ~4.5W idle, up to ~20W max |

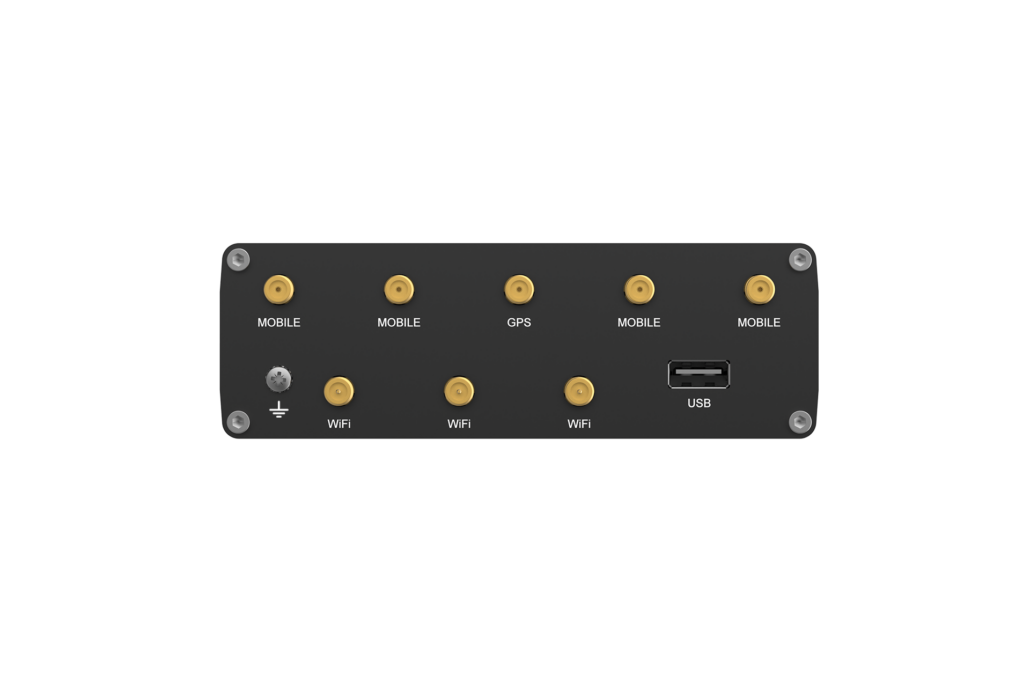

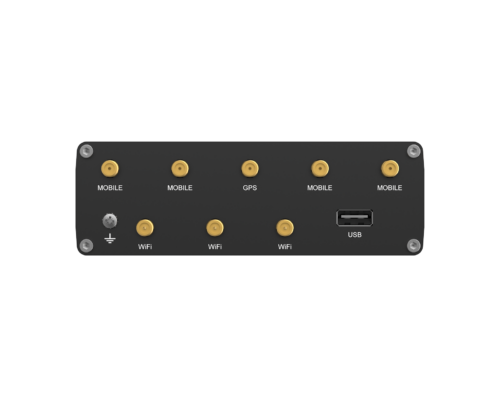

| Antennas | 4 × Mobile, 3 × Wi-Fi, 1 × GNSS |
| Dimensions | ~130 × 42.6 × 103 mm |
| Weight | ~452 g |
| Operating Temp | -40°C to +75°C |
| Housing | Industrial aluminum (IP30) |
