Country Of Origin: Taiwan
FEATURES
- Industrial-grade design – rugged and reliable for harsh environments.
- Multiple I/O interfaces – supports serial (RS232/RS485), Ethernet, and digital I/O for flexible connectivity.
- Wireless connectivity – includes LTE/3G/2G options for remote communication.
- IPSec/VPN support – secure tunneling for safe data transmission.
- Wide voltage input – typically supports 9–36 V DC for industrial power compatibility.
- Compact form factor – easy to integrate into control cabinets or industrial setups.
- Status LEDs – for quick visual monitoring of power, network, and signal status.
- Temperature tolerance – operates reliably in extended industrial temperature ranges.
- Management options – web interface and CLI for configuration and monitoring.
DOWNLOAD
Specifications
| SPECIFICATION | DETAILS |
|---|---|
| Cellular (Mobile) | 4G/LTE Cat 4 – FDD up to 150 Mbps DL / 50 Mbps UL4G LTE TDD up to 130 Mbps DL / 30 Mbps UL3G HSPA+ / HSUPA / WCDMA / 2G EDGE / GPRS support |
| 3GPP Standard | Release 9 |
| SIM | 1× Mini SIM slot (2FF), 1.8 V / 3 V |
| Power Input | 9 – 30 V DC via industrial 4‑pin connector |
| Power Protection | Overvoltage protection, reverse polarity protection, surge protection |
| Power Consumption | Idle: < 1 WMaximum: < 5 W |

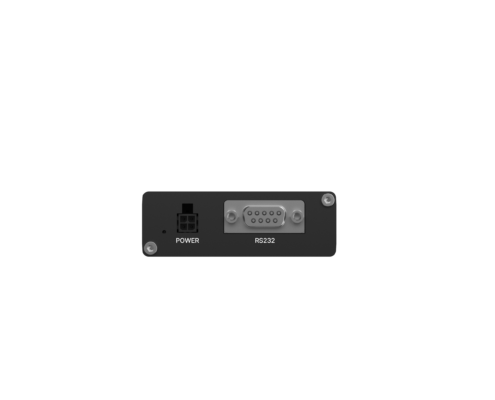

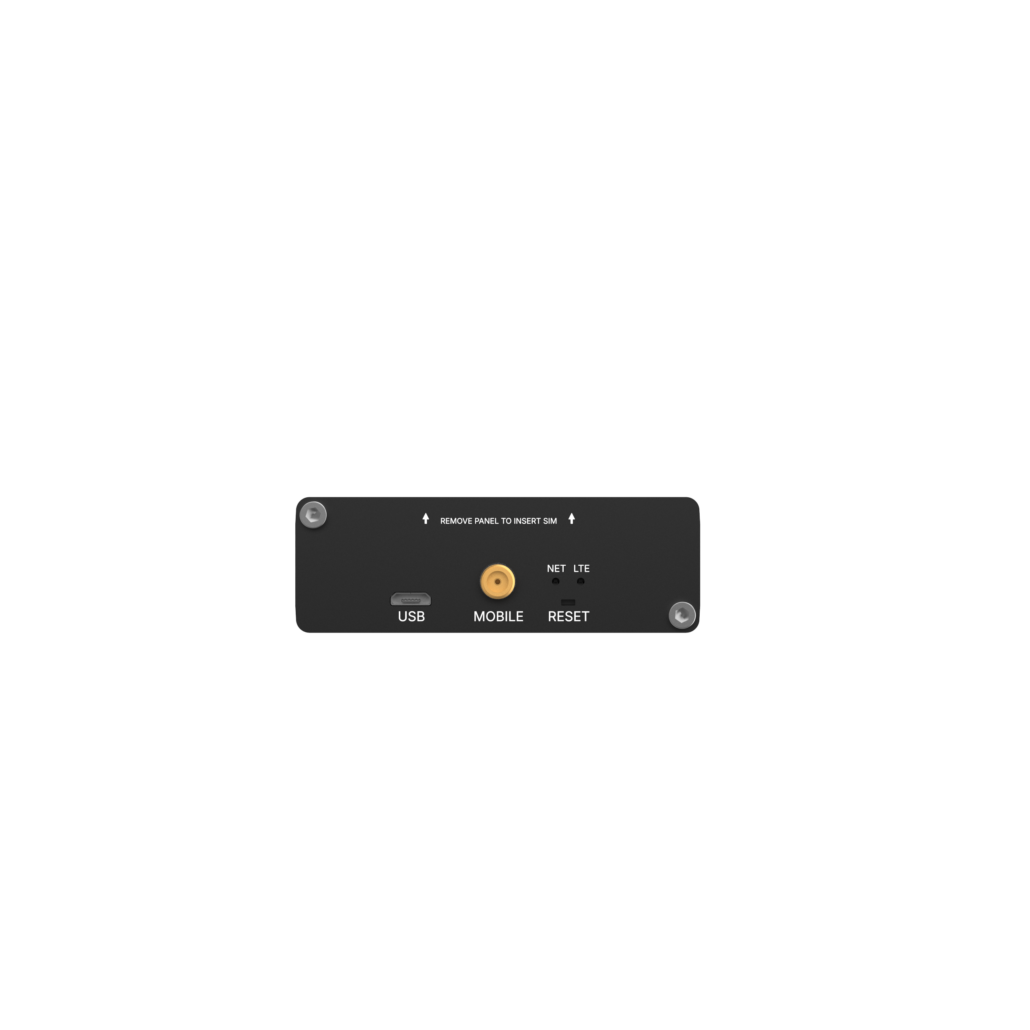

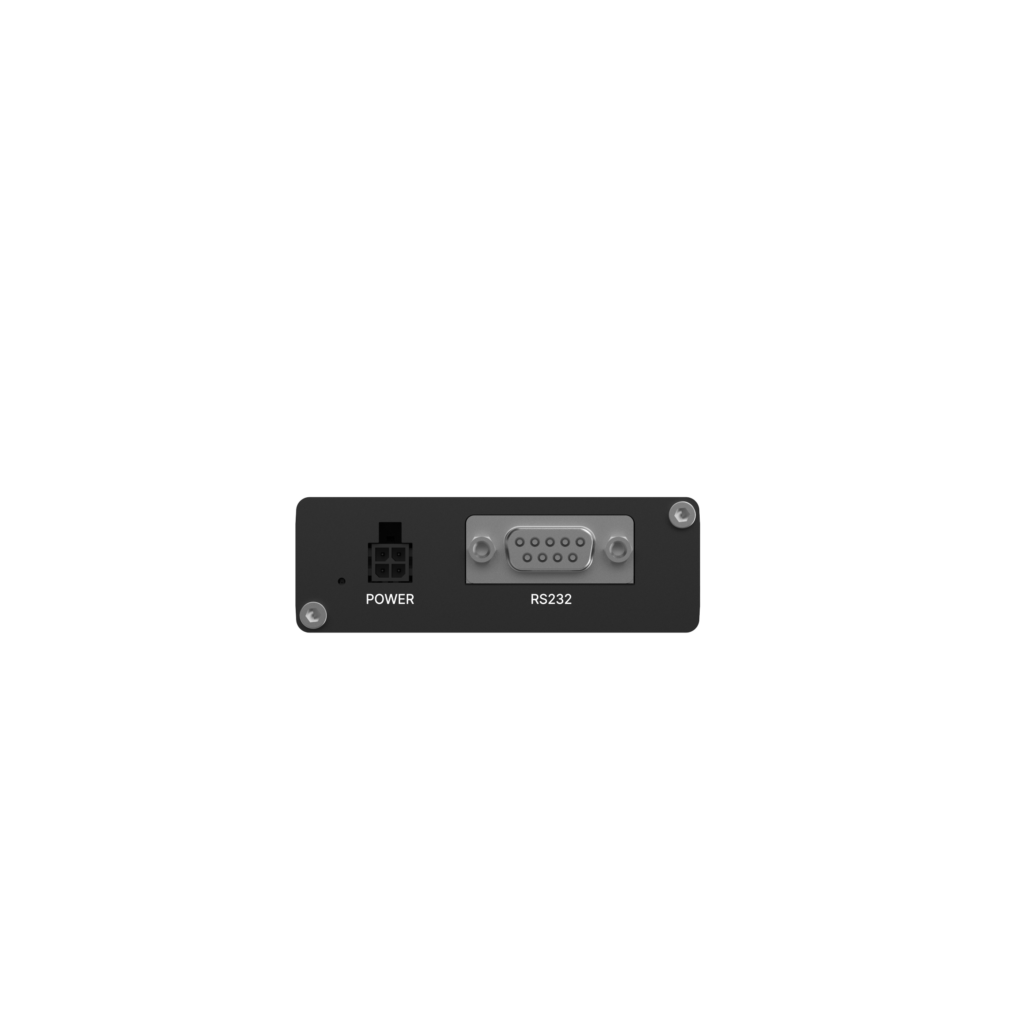

| Physical Interfaces | 1× RS232 (DB9) with RTS/CTS flow control1× Virtual network interface via micro USB1× SMA mobile antenna connector |
| LED Indicators | Power, Network, Mobile |
| Reset | Reboot / User‑default / Factory reset button |
| Housing / Build | Anodized aluminum (industrial) |
| Dimensions (W×H×D) | 75.9 × 25 × 74.5 mm |
| Weight | ~135 g |
| Mounting Options | DIN rail / wall mount / flat surface (mounting kits required) |
| Operating Temp. | –40 °C to +75 °C |
| Operating Humidity | 10 %–90 % (non‑condensing) |
| Ingress Protection | IP30 |
| Network Management | Compatible with Windows Connection Manager & Linux Modem ManagerUSB serial drivers for Windows/Linux/Android |
