Product Availability : Against PO
Country Of Origin: Taiwan
FEATURES
-
Industrial 4G LTE Cat 4 modem for IoT and M2M connectivity.
-

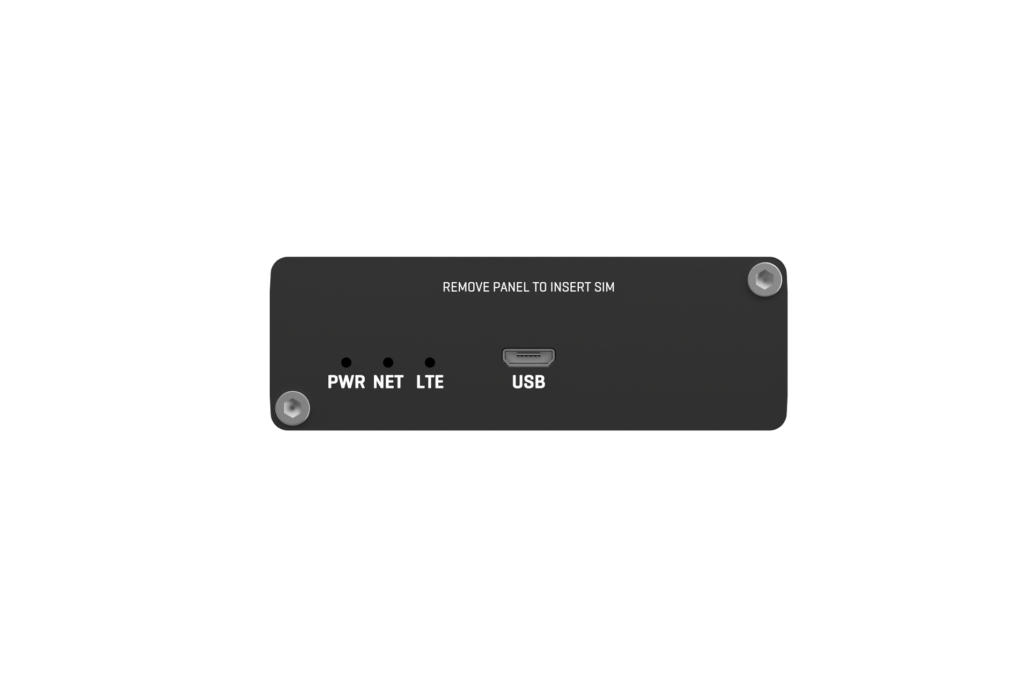

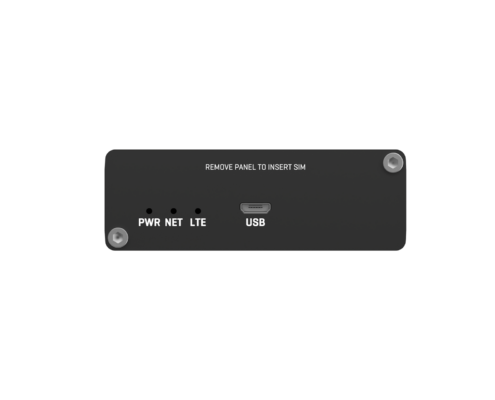

Uses Micro-USB for both power and data, making it easy to integrate with computers, kiosks, and embedded systems.
-

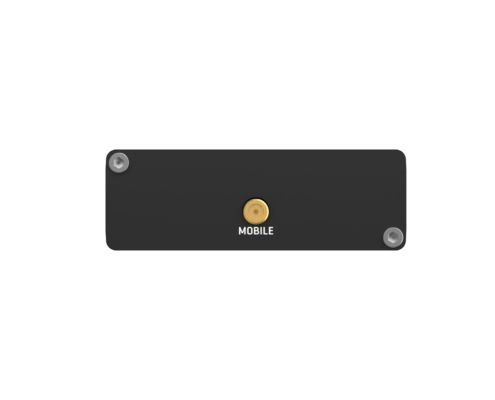

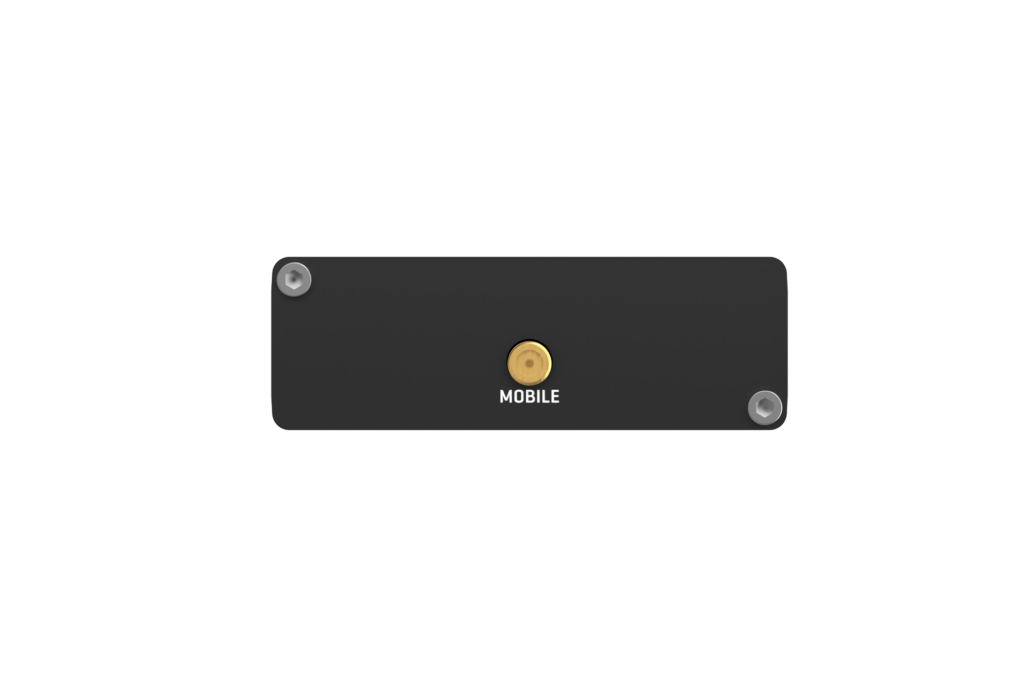

External SMA antenna improves signal strength and reliability.
-
Designed for harsh industrial environments with wide temperature support.
DOWNLOAD
trm200-datasheet-v101
Specifications
| Specification | Details |
|---|---|
| Device Type | Industrial GNSS Stratum-1 NTP Time Server |
| Ethernet Port | 1 × RJ45 (10/100 Mbps) |
| GNSS Support | GPS, GLONASS, Galileo, BeiDou, QZSS |
| Serial Interfaces | RS232, RS485 |
| Digital I/O | 3 × Digital Inputs, 3 × Digital Outputs |
| Analog Input | 1 × Analog input (via terminal block) |
| Antenna Connector | 1 × SMA (GNSS antenna) |
| CPU | MediaTek 580 MHz MIPS 24KEc |
| RAM | 128 MB DDR2 |
| Flash Storage | 16 MB |
| Network Protocols | TCP, UDP, IPv4, IPv6, NTP, DNS, HTTP/HTTPS, SSH, DHCP, SNMP, MQTT |
| NTP Accuracy | ±1 ms over Ethernet |
| NTP Performance | >300 NTP requests per second |
| LAN Sync Accuracy | 1–10 ms typical |
| Power Input | 9 – 30 V DC |
| Power Consumption | <3.5 W (max) |
| Operating System | RutOS (Linux / OpenWRT based) |
| Housing | Industrial anodized aluminum |
| Mounting | DIN Rail / Wall / Surface |
| Protection Rating | IP30 |
| Operating Temperature | −40°C to +75°C |
| Dimensions | 82.6 × 25 × 83 mm |
| Weight | ~180 g |
