Product Availability : Against PO
Country Of Origin: Taiwan

Category:

FEATURES

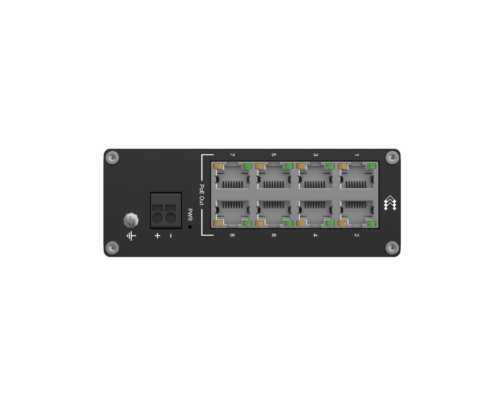

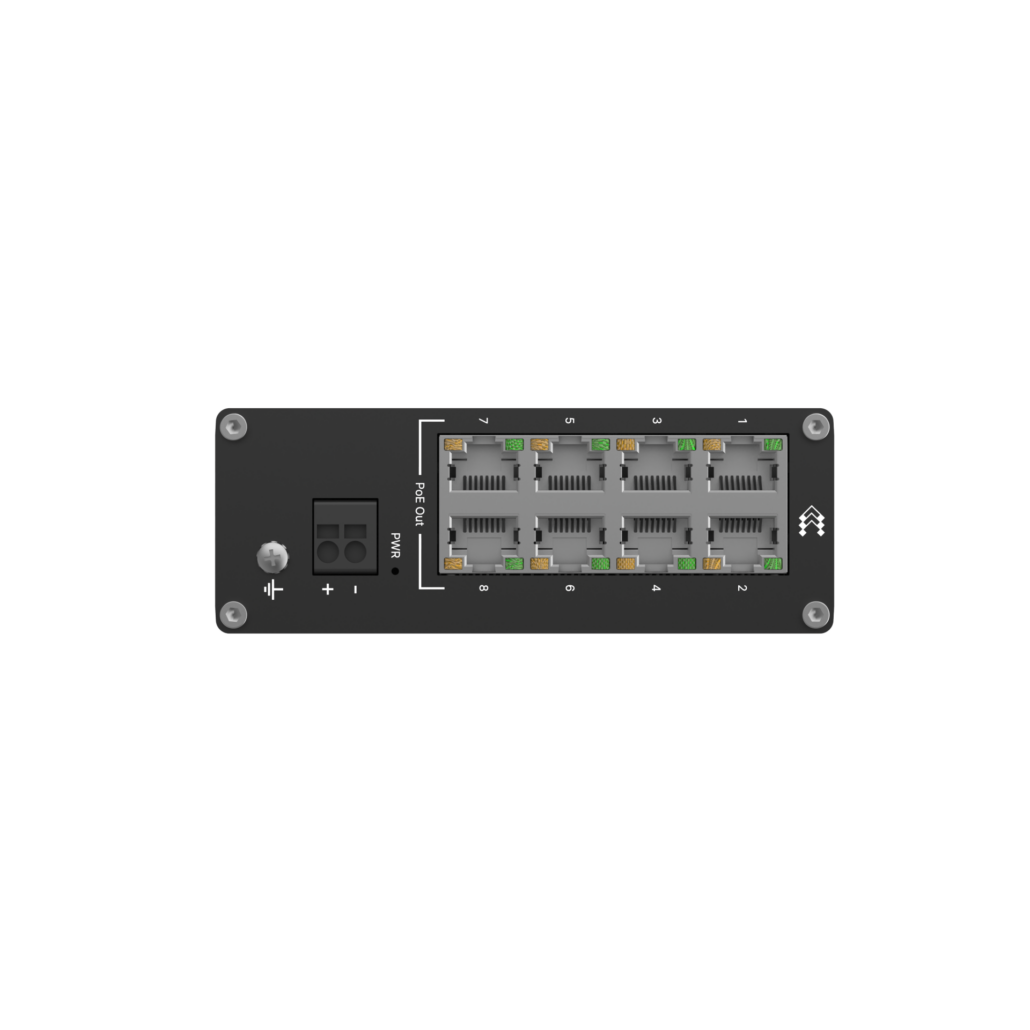

  • 8 × RJ45 Ethernet Ports (10/100 Mbps)

  • All 8 Ports support PoE+ (IEEE 802.3af / 802.3at)

  • Up to 30 W per PoE port for powering devices like IP cameras or access points

  • Total PoE Power Budget: 240 W

  • Unmanaged Plug-and-Play switch (no configuration required)

  • Wide power input: 7 – 57 V DC

  • PoE output voltage: 44 – 57 V DC

  • Switching capacity: 20 Gbps

  • MAC address table: 2K entries

  • Packet buffer: 128 KB

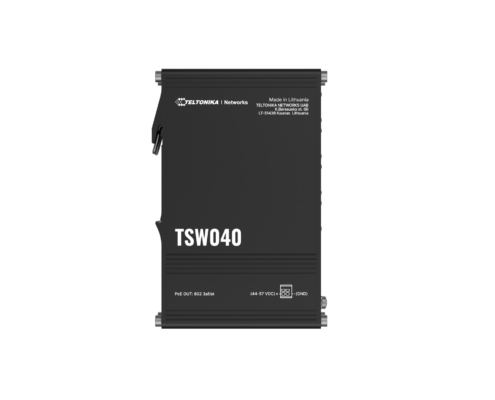

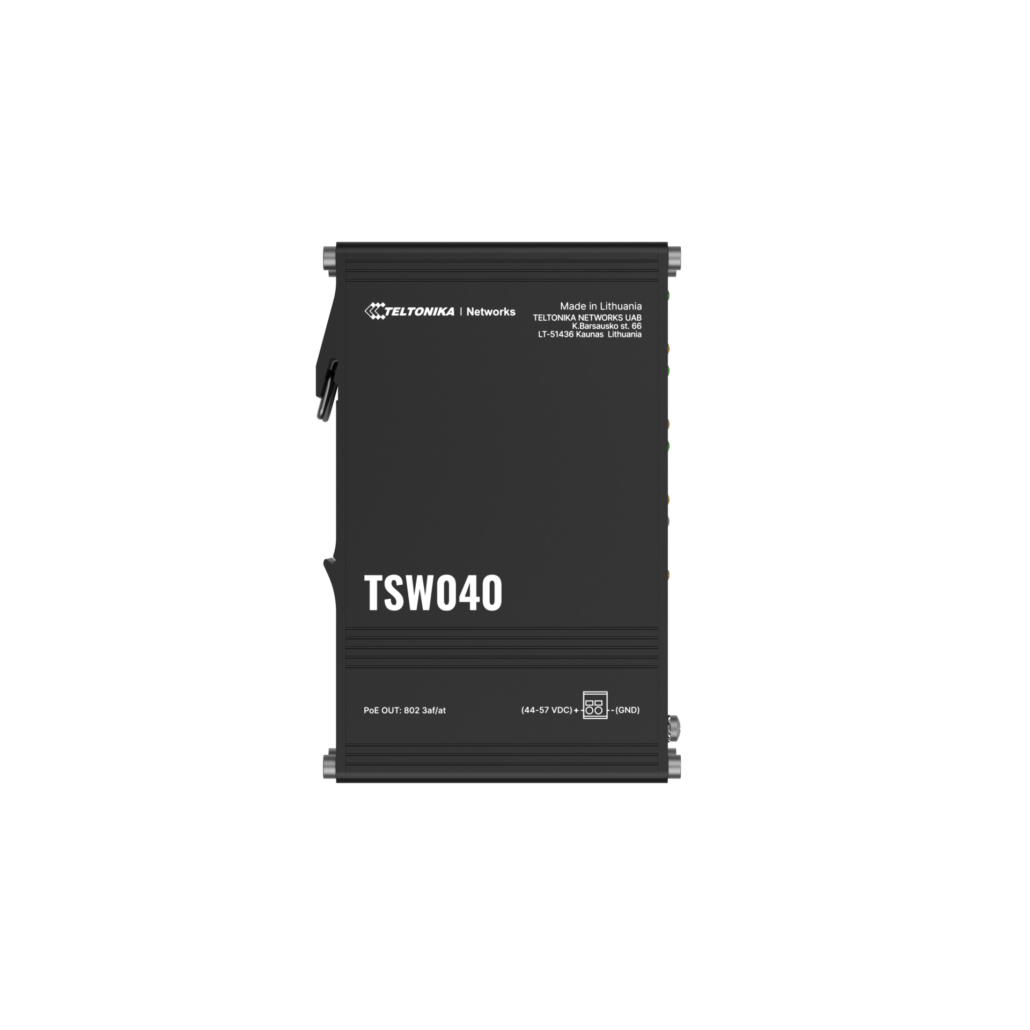

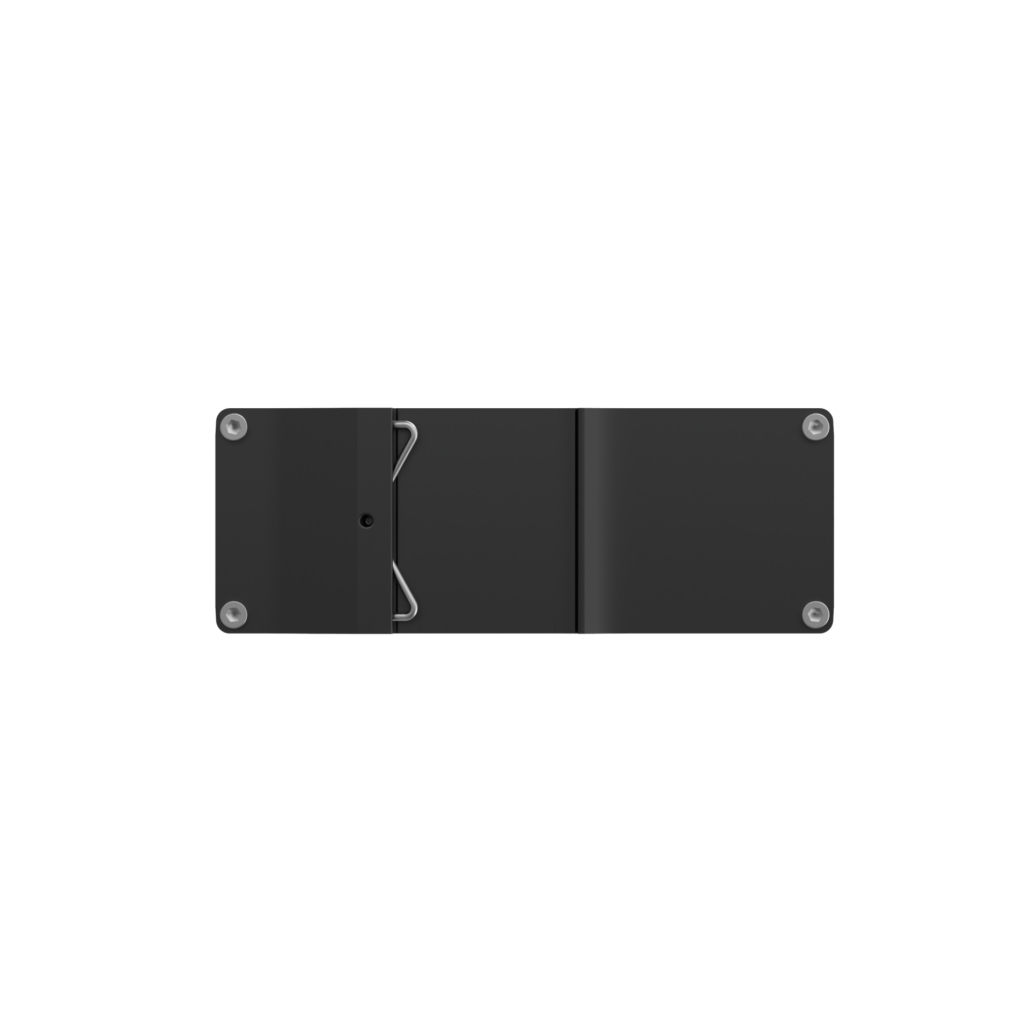

  • Industrial aluminum housing with DIN-rail mounting

  • Operating temperature: −40°C to +75°C

DOWNLOAD

tsw040-datasheet-v112

Specification Details
Ethernet Ports 8 × RJ45 (10/100 Mbps)
PoE Ports 8 × PoE+ (Ports 1-8)
PoE Standard IEEE 802.3af / 802.3at
Max Power per PoE Port 30 W
Total PoE Power Budget 240 W
Switching Capacity 20 Gbps
Packet Buffer 128 KB
MAC Address Table 2K entries
Jumbo Frame Support 9216 bytes
Power Input 7 – 57 V DC
PoE Output Voltage 44 – 57 V DC
Power Connector 2-pin industrial DC power socket

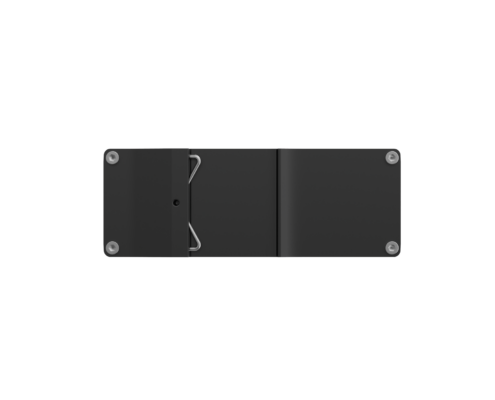

Mounting DIN Rail / Wall / Surface
Housing Anodized aluminum industrial case
Dimensions 113.1 × 41.2 × 74.6 mm
Weight 280 g
Protection IP30
Operating Temperature -40°C to +75°C
Operating Humidity 5% – 95% non-condensing
