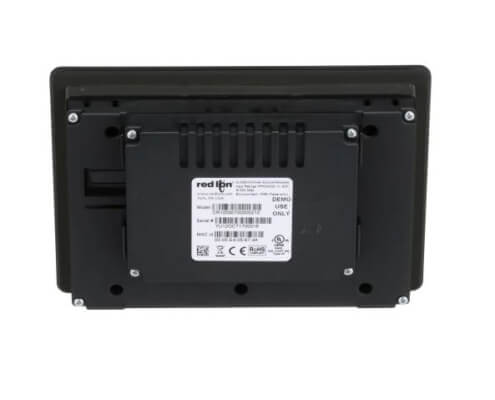

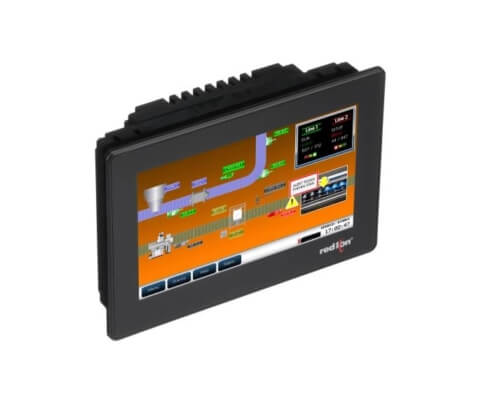

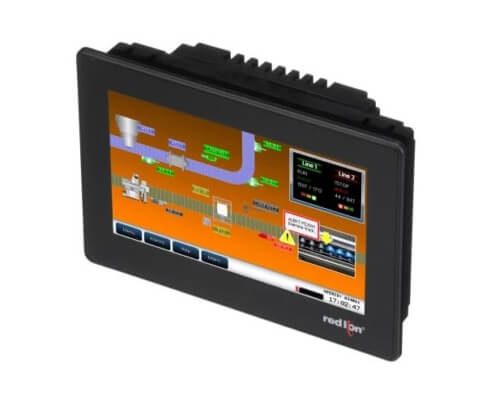

Red Lion Controls CR10000700000210
HMI 7″ Touchscreen 16M Color 800×480 Pixels 24VDC IP66 CR1000 Series
Product Availability : Against PO
Country Of Origin: USA
FEATURES
- Compatible with USB 2.0
- A variety of 4.3″ to 15″ models with widescreen (model dependent) ensures the right fit for virtually any application
- 16M colors
- Communicate with over 300 protocols
- Easily convert between serial, USB and Ethernet devices
- Convert up to 6 protocols simultaneously with CR1000 and up to 15 with CR3000
- Manage multi-vendor environments with ease Crimson 3.1 software enables point-and-click configuration
- Updated 3D symbols and primitives create a modern operator experience
- Ethernet, USB and serial ports make communication simple
- Robust web server* provides remote access and control to reduce costly site visits
- Send email and/or SMS notifications on alarm conditions*
- Built-in data logging enhances troubleshooting and helps meet regulatory requirements
- Automate population of data values using SQL Queries feature* | * Model dependent
- SD Card for database upload/download
- Built-In Web Server for Remote Access*
- Real-Time Data Logging
Specifications
Product Attribute | Attribute Value |
Backlighting | LED Backlight |
Display Colors | 16M Color |
Display Resolution | 800 x 480 Pixels |
Display Size | 7 In Display |
Family Name | CR HMI Family |
HMI Type | Touch Screen HMI |
IP Rating | IP66 |
Mounting Type | Chassis Mount |
Number of Ports | 4 Port |
Special Features | Widescreen |
Supply Voltage | 24 VDC |
Technology | TFT LCD Display |
Type | Widescreen |
