FEATURES
- LTE Cat 6 with carrier aggregation for faster mobile internet
- WAN failover to maintain connectivity if main link fails
- Industrial protocols support (MQTT, Modbus, SNMP, OPC UA, etc.)
- Advanced VPN support – IPsec, OpenVPN, WireGuard, GRE, L2TP
- Digital I/O for automation and alarms
- Remote monitoring via Teltonika RMS cloud platform
DOWNLOAD
rut260-datasheet-v11
Specifications
| Specification | Details |
|---|---|
| Cellular Connectivity | 4G LTE Cat 6 / 3G |
| Max LTE Speed | 300 Mbps Download / 50 Mbps Upload |
| SIM Slot | 1 × Mini-SIM (2FF) |
| Wi-Fi | 802.11 b/g/n (Wi-Fi 4) |
| Max Wi-Fi Users | Up to 50 clients |

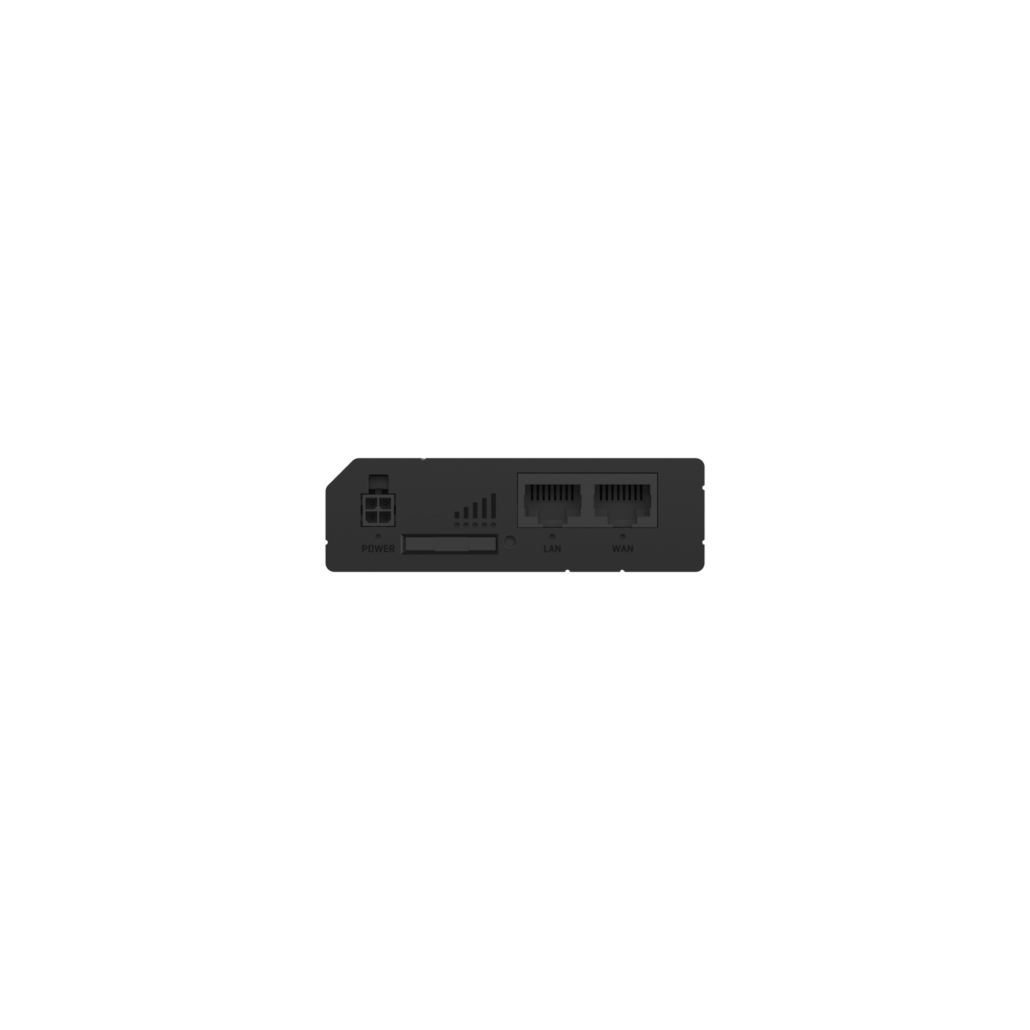

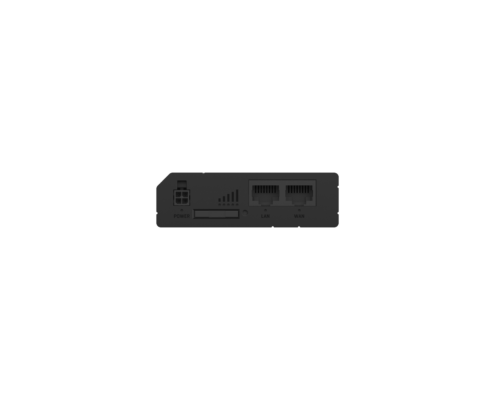

| Ethernet Ports | 2 × RJ45 (10/100 Mbps) |
| WAN Failover | Automatic backup connection switching |
| Digital I/O | 1 × Digital Input, 1 × Digital Output |
| CPU | MediaTek 580 MHz |
| RAM | 128 MB DDR2 |
| Flash | 16 MB SPI Flash |

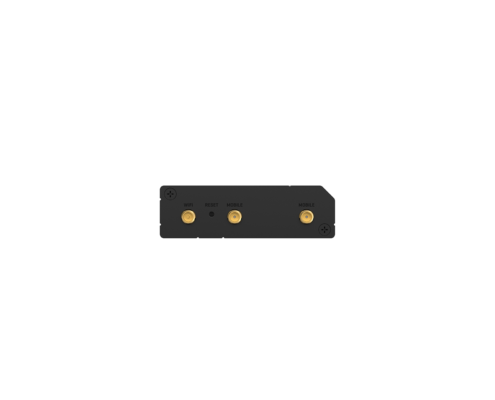

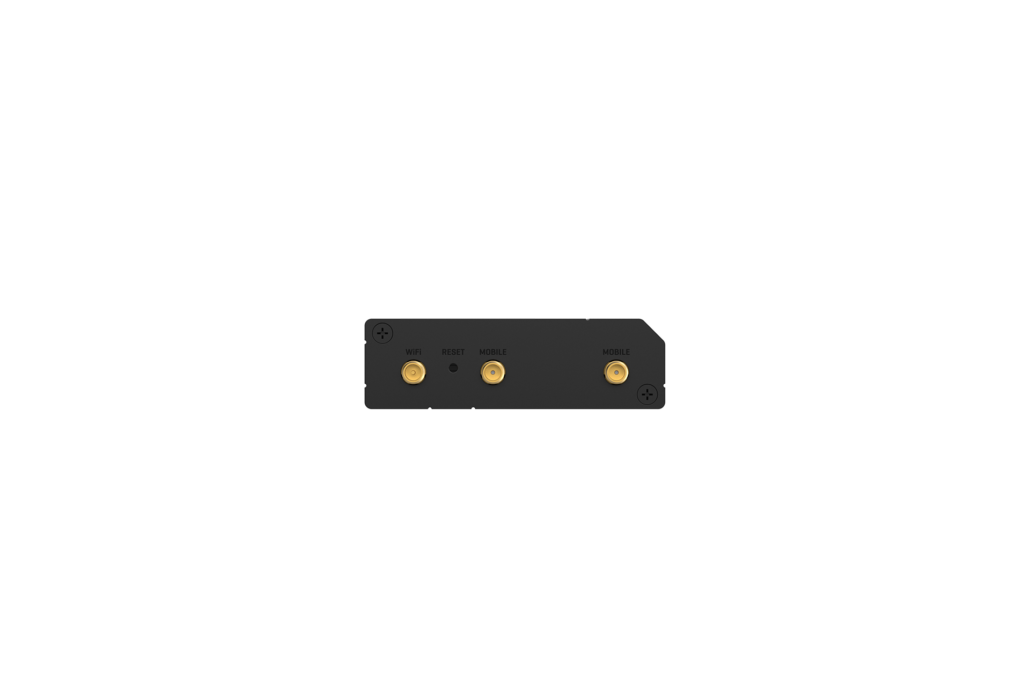

| Antennas | 2 × SMA (LTE), 1 × RP-SMA (Wi-Fi) |
| Power Input | 9–30 V DC (4-pin industrial connector) |
| Passive PoE | Supported via LAN1 (Mode-B, 9-30 V) |
| Power Consumption | Idle <2 W, Max <6.5 W |
| Operating Temperature | -40 °C to +75 °C |
| Protection | IP30 aluminium housing |
| Dimensions | 83 × 25 × 74 mm |
| Mounting | DIN-rail / wall mount |
